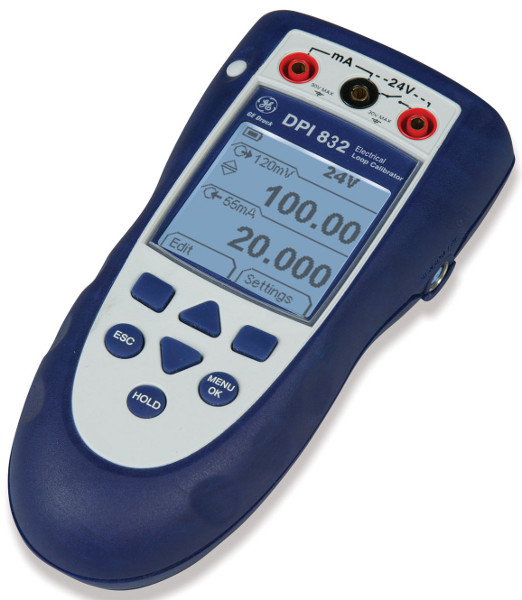

GE Druck DPI 832 Electrical Loop Calibrator
|
Item Number: DPI-832
Manufacturer: Druck (GE)
Part Number: DPI-832
* Whole number only
|
|
GE Druck DPI 832 Electrical Loop Calibrator
The DPI 832 electrical loop calibrator is a compact, easily portable solution for your loop calibration needs. Highly cost effective, these tools are ideal for test/calibration of many popular process parameters. Advanced features and technical innovations address more applications in less time and deliver results you can rely on.
Features

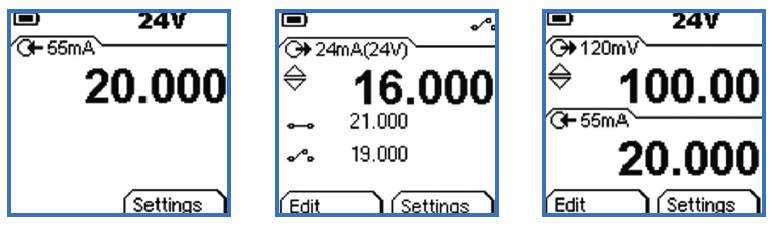

- Dual reading capability: source mA, mV or V and simultaneously measure mA or capture switch trip values
- Measure or source mA, mV and V
- 24V loop supply to power transmitters and loops
- Large backlit display, menu driven interface
- HART® loop resistor
- Robust and weatherproof
- Compact, simple to use, easy to carry
- Convenient, one-handed operation
- Secure grip, impact resistant, elastomer protected
- Plug/play connector for Intelligent Digital Output Sensor (IDOS™) Universal Measurement Modules
Applications
- Process instrument test and maintenance
- Control loop setup and diagnostics
- Set-up DCS, PLC and signal conditioners
- Valve positioner adjustment
The DPI 800 Series is a complete range of advanced, robust and simple to use hand-held instruments. Highly cost effective, these tools are ideal for test/calibration of many popular process parameters. Advanced features and technical innovations address more applications in less time and deliver results you can rely on.

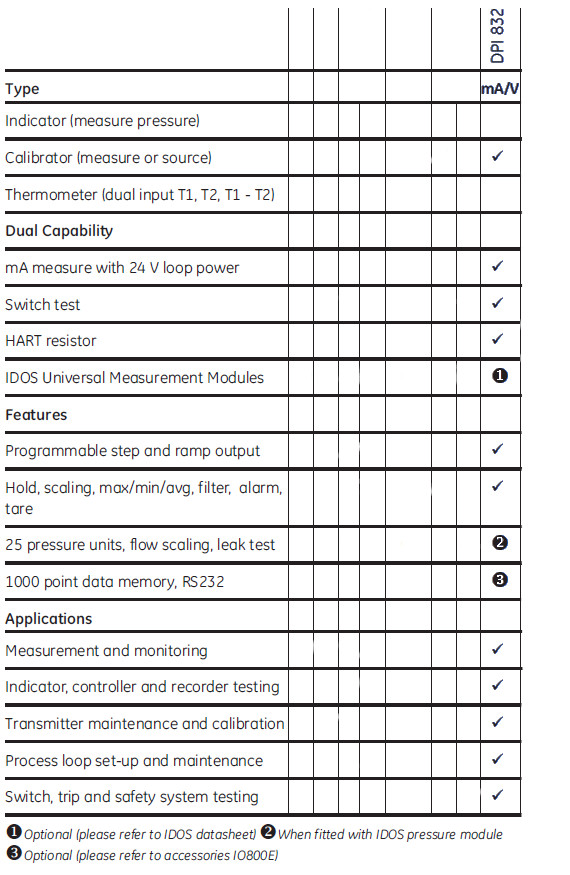

Technical Specifications

|
Druck IDOS are housed in tough functional cases, providing dependability along with plug and play connectivity.
| |
