GE Druck DPI 740 Precision Barometer
|
Item Number: DPI740
Configuration: DPI740-RSTD
Manufacturer: Druck (GE)
Part Number: DPI740
Product Options
* denotes required field
Druck DPI-740 Range Selection*
You must select an option for 'Druck DPI-740 Range Selection'.
Druck DPI-740 Increased Accuracy Selection*
You must select an option for 'Druck DPI-740 Increased Accuracy Selection'.
Druck DPI-740 Rechargeable Battery Option*
You must select an option for 'Druck DPI-740 Rechargeable Battery Option'.
Druck DPI-740 RS-232 Cable Option*
You must select an option for 'Druck DPI-740 RS-232 Cable Option'.
Druck DPI-740 Transit Case Option*
You must select an option for 'Druck DPI-740 Transit Case Option'.
* Whole number only
|
|

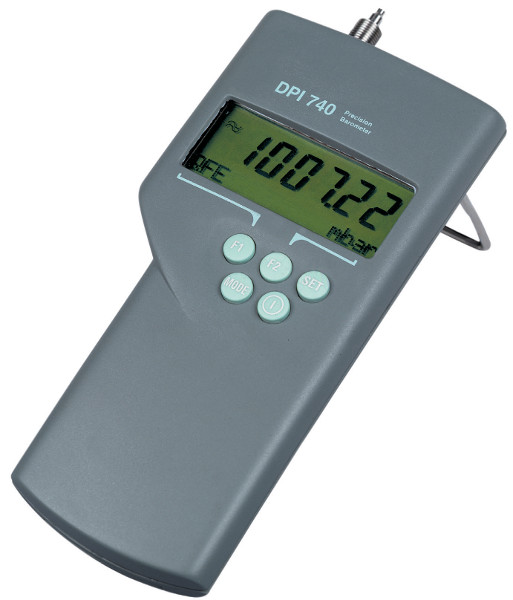

GE Druck DPI-740 Precision Barometer
The Druck 740 is a portable battery powered precision barometer, providing outstanding capabilities in a handheld package. The fundamental sensor technology employed within this instrument is the Druck Resonant Pressure Transducer (RPT). This vibrating element sensor not only provides accuracies of +/-0.005 inHg but equally important has a calibration stability of better than 100 ppm per year. This instrument can confidently be used in both laboratory and field applications as a first-class barometric reference device, with the recommended recalibration period being one year. A variety of pressure scales is available to enable the operator to display the atmospheric pressure in any desired units or in height equivalent units for altimetry and surveying applications. With the serial RS 232 interface, it is possible to utilize the DPI 740 data as input parameters to computer systems or simply print out the displayed values. The DPI 740 ABS molded case has been designed for hand-held use, either in field applications, or for use on the bench with its integral folding stand.
Features:
- Accuracy +/-0.004 inHg absolute
- Ranges to 103 inHg Absolute
- 6 Digit resolution LCD display
- Multiple pressure scales and aeronautical units
- Alkaline or rechargeable batteries
- Lightweight hand-held rugged design
- RS 232 output
Technical Specifications:
| Range: |
22-34"Hg Absolute |
| Optional Ranges: |
1 - 38"HgA, 77"HgA, 103"HgA |
| Overpressure: |
Up to 118"HgA will not cause a calibration change. |
| Pressure Media: |
Compatible with non-corrosive gases.
Insensitive to media density. |
| Accuracy: |
+/-0.02% F.S. (Includes All Effects from 15 to 120 F) |
| Stability: |
Better than 100 ppm per annum |
| Display: |
999999 capability LCD digits 0.54" high |
| Display Overload: |
110% F.S. for Each Range.
Above This, Error Code Will Flash. |
| Resolution: |
0.0003"Hg Absolute |
| Response: |
2 Readings Per Second |
| Calibration Controls: |
Front panel PIN protected, Also via RS-232. |
| Operating Modes: |
Local pressure (QFE)
Sea level pressure (QFF) from user set height
Altitude above user set datum |
| Process Features: |
Max/Min, Reading Store, Tare and Programmable Filter |
| Scales: |
inHg, psi, atm, torr, inH2O, ftH2O (40 and 68 F), mH2O,
cmH2O, mmH2O,mHg, cmHg, mmHg, kg/in2, kg/cm2, bar,
hPa, inPa, kPa, Pa, mbar Altitude values in ft. and m.
Tare available for surveying. |
| Position Effect: |
Negligible |
| Power Supply: |
3 each 1.5V Alkaline AA batteries.
20 hours nominal continuous operation.
Optional rechargeable NiCad batteries |
| Temperature Operating: |
15 to 120 F |
| Storage: |
-40 to +160F |
| Sealing: |
Generally to NEMA 4 |
| Safety: |
EN61010, EN50081-1, EN50082-1, CE |
| Size: |
7.5" x 3.5" x 1.4", 1.1 Lbs. |
| Pressure Connection: |
Accepts 1/4 in. O/D / 5/32 ID tubing |
| Serial Output: |
RS 232 via 6-Way LEMO socket |
|
