GE Druck DPI 611 Hand-held Pressure Calibrator

Our Price: $3,995.00

Item Number: DPI611

Manufacturer: Druck (GE)

Part Number: DPI611

* denotes required field

Pressure Range Selection*

Quantity:

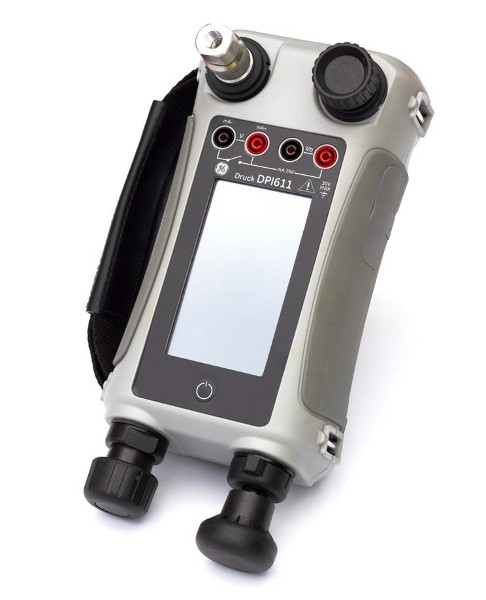

GE Druck DPI 611 Hand-held Pressure Calibrator

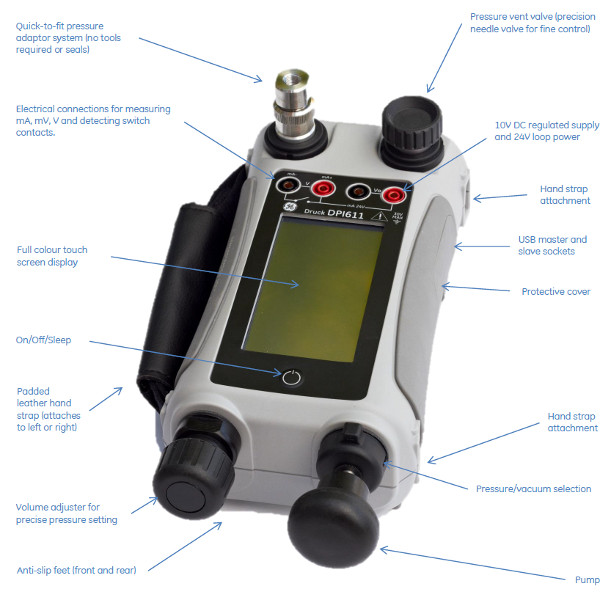

Features

50% smaller and 33% lighter than the DPI 610
Generates 0 to 20 bar/300 psi in less than 30 seconds
Creates 95% vacuum
Pressure measurement is twice as accurate
Three times better electrical accuracy

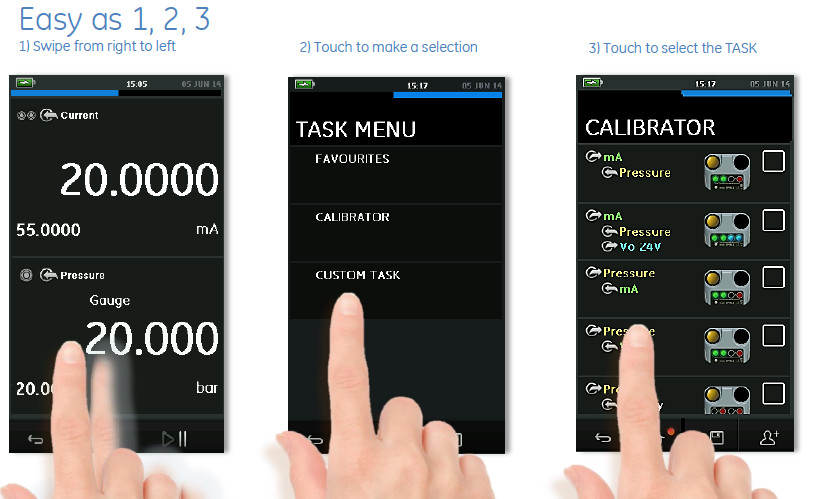

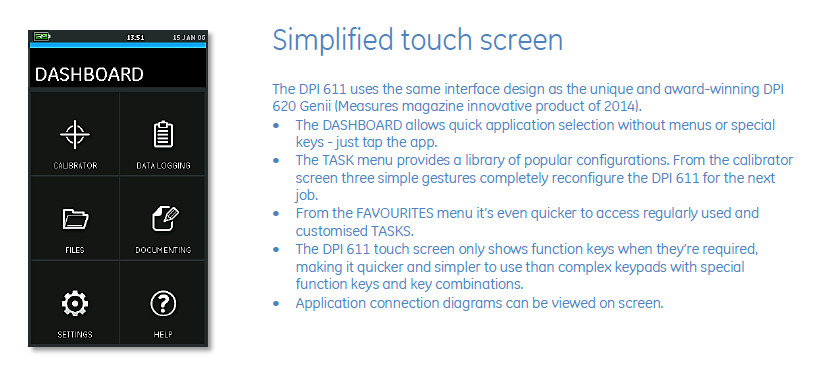

Simplified touch screen interface with application DASHBOARD, quick TASK selection and FAVOURITES storage
Fast, three touch set-up for any application
Calculates PASS/FAIL errors, documents results and interfaces with calibration software

Advanced Features

% step: The step size is defined as a percentage. For example 25% provides five test points of 4, 8, 12, 16 and 20 mA.
Defined step: The step size is defined as a value in mA.
Span check: Toggles between two end points, for example, 4 and 20 mA for checking zero and FS.
Ramp: A linear ramp between two end points with programmable travel and dwell times is perfect for dynamically testing switches.
Nudge: Simply used to make a small incremental change to a mA output using up/down keys. This is great for determining trip values.
Switch test: Automates the capture of pressure switch actuation and de-actuation values and calculates the hysteresis.
Pressure leak test: This automated procedure for detecting leaks and determining leak rates has programmable settle and run times.
Max/min: Captures maximum and minimum values and calculates the mean.
Relief valve: Captures the venting pressure of a relief valve.
Scaling: Scales the measured value into a process value.
Resolution: Adjustable from four to seven digits this matches the displayed value to that of the test device for easy comparison.
Help Screen: The DPI 611 is provided with a multi-lingual quick user guide to get you up and running without delay.

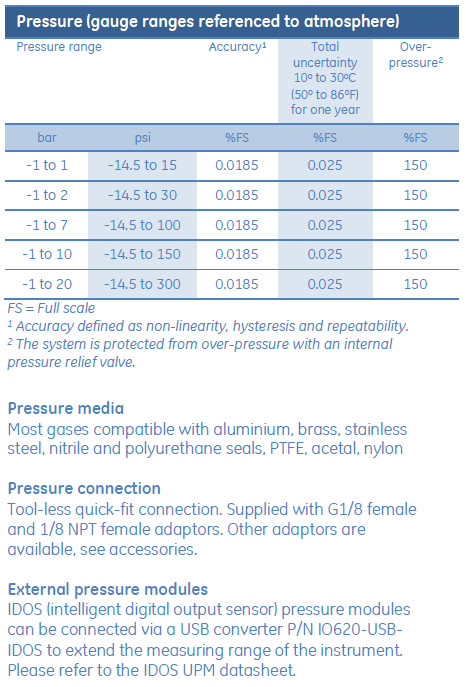

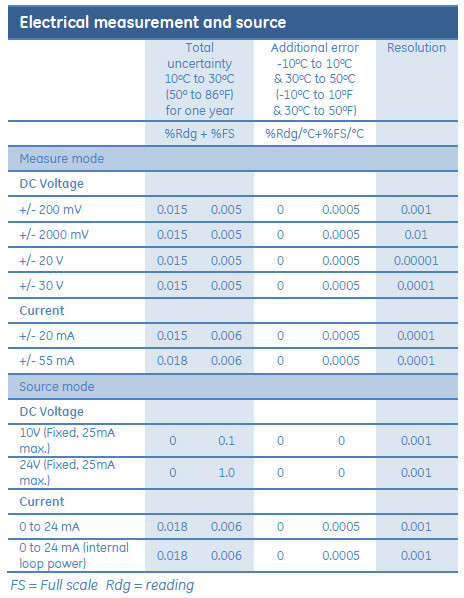

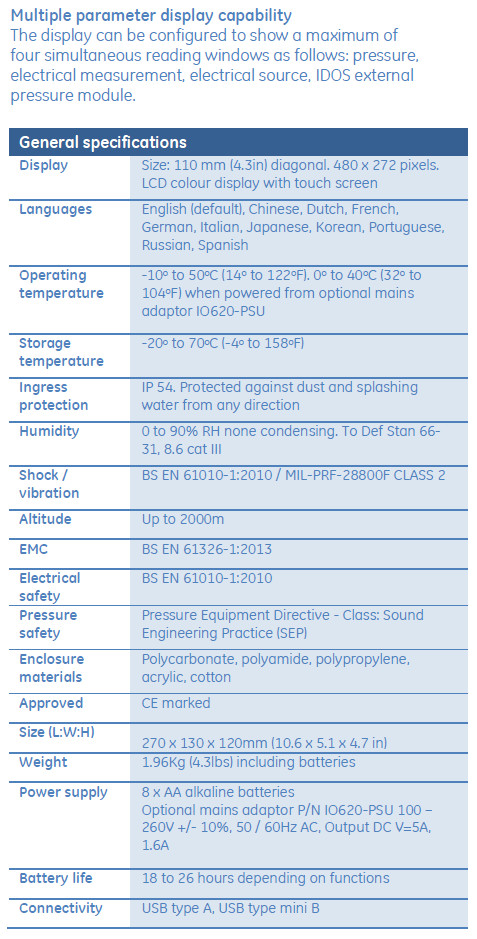

Technical Specifications

GE Druck DPI 611 Data Sheet
