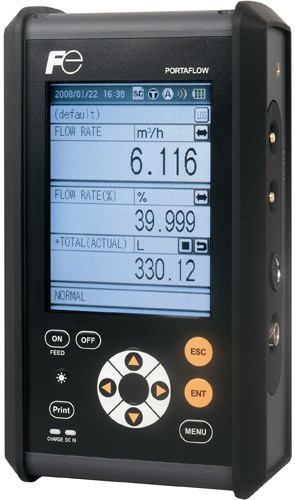

Fuji Electric Portaflow-C Ultrasonic Flow Meter
|
Item Number: PORTAFLOW-C
Configuration: FSCS10A1-00
Manufacturer: Fuji Electric
Part Number: FSCS10A1-00
Product Options
* denotes required field
Fuji Electric Portaflow-C Options*
You must select an option for 'Fuji Electric Portaflow-C Options'.
* Whole number only
|
|
Fuji Electric Portaflow-C Ultrasonic Flow Meter
PORTAFLOW-C is a portable type ultrasonic flow meter utilizing the transit time measuring method, using a clamp-on type detector. It is a compact and lightweight instrument incorporating the latest electronics and digital signal processing technologies, realizing high performance and easy operation.
Features
- Compact and lightweight
- Battery operation
- Full variety of detectors
- High accuracy and high-speed response
- Improved anti-bubble characteristic
- Excellent performance and easy operation
- Large capacity storage by SD memory card
- Serial communication
- Heat quantity (calorie) measurement
- Graphic printer connection (option)
- Flow velocity profile measurement (option)
Technical SpecificationsMeasuring objectsMeasurement fluid:
Uniform liquid in which ultrasonic
waves can propagate.
Turbidity of fluid: 10000 mg/L or lessState of fluid: Well-developed turbulent or laminar
flow in a filled pipe.Fluid temperature: −40 to +200°CMeasuring range: 0···±0.3 to ±32m/s
Piping conditionsApplicable piping material:
Select from carbon steel, stainless
steel, cast iron, PVC, FRP, copper,
aluminum, acrylic or material of known
sound velocity.
Pipe size: Flow rate measurement φ13 to φ6000mm Flow velocity profile measurement φ40 to φ1000mmLining material: Select from no lining, tar epoxy, mortar, rubber, Teflon, pyrex glass or material of known sound velocity. Note) No gap allowed between the lining and the pipe.Straight pipe length:
10D or more upstream and 5D or more
downstream (D: internal pipe diameter)
Refer to Japan Electric Measuring Instruments
Manufactures’ Association’s
standard JEMIS-032 for details.
|
