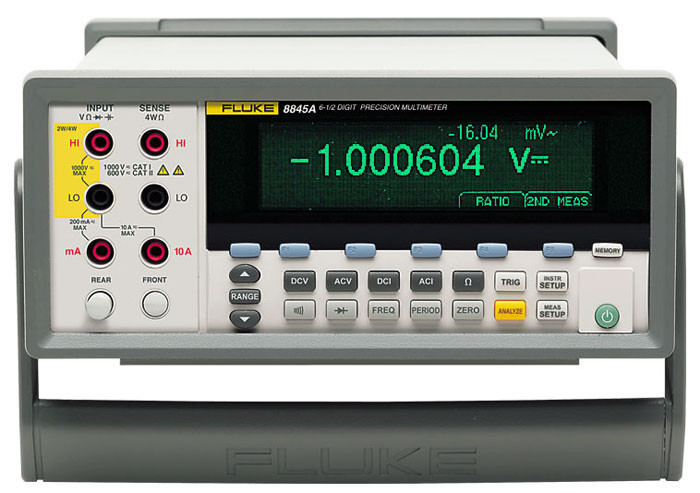

Fluke 8845A 6.5 Digit Precision Multimeter

Fluke 8845A 6.5 Digit Precision Multimeter

The Fluke 8845A digital multimeters perform the functions you would expect to see in a multifunction DMM, including measuring volts, ohms, and amps. Basic V dc accuracy of up to 0.0024 %, 10 A current range, and a wide ohms range give you an unbeatable combination of measurement capability.

You can also use the 8845A to measure frequency and period.  The functions of a counter, capacitance meter, and thermometer are built in for unparalleled versatility. Extend the meters’ utility even more with their graphical display modes, including TrendplotTM paperless recorder mode, statistics and histograms—features you won’t find on other multimeters.

Of course, these meters are also durable and dependable, features you expect from any Fluke meter. This unique combination of features and performance makes the 8845A an unbeatable value for a wide variety of applications, including manufacturing test, research and development, and service.

Features:

• 6.5 digit resolution
• Basic V dc accuracy of up to 0.0024 %
• Dual display
• 100 uA to 10 A current range, with up to 100 pA resolution
• Wide ohms range from 10 Ohm to 1 GOhm with up to 10 uOhm resolution
• 2 x 4 ohms 4-wire measurement technique
• Both models measure frequency and period
• Fluke 45 and Agilent 34401A emulation
• Graphical display
• Trendplot™ paperless recorder mode, statistics, histogram
• CAT I 1000 V, CAT II 600 V
