Fluke 787 Loop Calibrator Process Meter
|
Item Number: FLUKE-787
Manufacturer: Fluke
Part Number: FLUKE-787
Product Options
* denotes required field
Fluke 787 Calibration Certificate Options*
* Whole number only
|
|
Fluke Model 787 Process Meter Loop Calibrator
The Fluke 787 loop calibrator puts a complete troubleshooting solution in the palm of your hand. The Fluke 787 gives you the measurement capabilities you expect from Fluke's rugged 80's series DMMs plus the ability to source, simulate, or measure dc milliamp current with 1 microamp resolution and accuracy of 0.05%. Put it all together and you have the ideal tool for troubleshooting and calibrating current loop applications. Stop lugging around a DMM and a calibrator for each calibration test, use one meter, the Fluke 787 and save time and money.
Features - Fluke 787:
- Fluke 80's series DMM technology and Loop Calibrator in One Handy Tool
- Precision 1000V, 440 mA DC digital multimeter
- Measure AC/DC volts, AC/DC Current, Resistance, Continuity, and Frequency
- 0.1% DC Voltage Accuracy
- 0.05% DC current Accuracy, 1uA Resolution to 30 mA
- Simultaneous mA and % of Scale Readout
- True RMS AC voltage Measurement to 1 kHz
- Frequency Measurement to 20 kHz
- Min/Max/Average/TouchHold/Relative Modes
- Diode Test and Continuity Beeper
- DC Current Source/Loop Calibrator
- 20 mA Current Source/Simulator
- Simultaneous mA and % of Scale Readout
- Manual Step (25%, Coarse, Fine) plus Auto Step and Auto Ramp

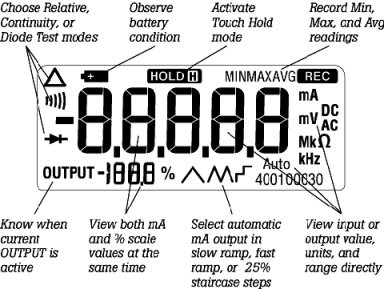

- Clear LCD with Backlight; 4,000 Counts (30,000 counts for DC Current)
- Externally Accessible Battery maintains calibration seals
- 1000V Overload Protection on V, Ohms, Frequency
- 150V Overload Protection on mA, Backed-up by 440 mA 1000V Fuse
- Designed to Meet 1000 Volt IEC 1010 Cat III Standards
Fluke 787 - Technical Specifications:
DC Current Output:
(Battery operation)
Drive Capability: |
0.000 to 20.000 mA or 4.000 to 20.000 mA
Over-Range to 24.000 mA
12 V Compliance, or 500 Ohms @ 20 mA |
DC Current Simulate:
(External Loop Supply):
Drive Capability: |
0.000 to 20.000 mA or 4.000 to 20.000 mA
Over-Range to 24.000 mA
1000 Ohms @20 mA; +/-0.05% Span |
| Adjustment Modes: |
Manual: Coarse Fine: 25% Step
Automatic: Slow Ramp, Fast Ramp, 25% Step |
| VDC: |
Ranges: 400.0 mV, 4.000V, 40.00V, 400.0V, 1000V
Accuracy: 0.1% Rdg + 1 Count |
| VAC (TRMS) to 1 kHz*: |
400.0 mV, 4.000V, 40.00V, 400.0V, 1000V
Accuracy: 0.7% Rdg + 2 Counts |
| mA DC: |
30.000 mA; +/-0.05% Rdg + 2 Counts |
| A DC: |
1.000 A (0.440 A continuous); 0.2% Rdg + 2 Cts |
| A AC: |
1.000 A (0.440 A continuous); 1% Rdg + 2 Cts |
| Resistance: |
400 Ohm, 4.000 K-Ohm, 40.00 K-Ohm, 400.0 K-Ohm,
4.000 M-Ohm, 40.00 M-Ohm; +/-0.2% Rdg + 1 Cts |
| Frequency: |
199.99 Hz, 1999.9 Hz, 19.999 kHz, 199.99 kHz
Accuracy: +/-0.005% + 1 Count |
| Diode Test: |
2.400 V (Measures Diode Voltage Drop); +/-2%
|
| Continuity: |
Beeps for Resistance < 100 Ohm |
| Maximum Protection: |
1000 Vrms |
| Storage Temperature: |
-40 to 60 Deg C |
| Operating Temperature: |
-20 Deg C to 55 Deg C |
| Temperature Coefficient: |
0.05 x (Specified Accuracy) per Deg C |
| Relative Humidity: |
95% up to 30 Deg C; 75% up to 40 Deg C;
45% up to 50 Deg C; 35% Up to 55 Deg C |
| Vibration: |
Random, 2g, 5-500 Hz |
| Shock: |
1 Meter Drop Test |
| Safety: |
Designed in Accordance with IEC 1010-1,
ANSI/ISA S82.01-1994
CAN/CSA C22.2 No. 1010.1-92
Overvoltage Category III |
| Size: |
1.25“ H x 3.41” W x 7.35”L |
| Weight: |
With Holster and Flex-Stand 638 g (22.5 oz) |
| Battery: |
Single 9V Alkaline Battery |
| Battery Life: |
50 Hours Typical (Measurement)
12 Hours Typical (Sourcing 12 mA) |
| Warranty: |
3 Years |
|
