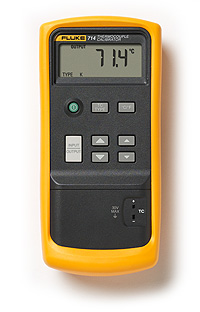

Fluke 714 Thermocouple Calibrator
|
Item Number: FLUKE-714
Manufacturer: Fluke
Part Number: FLUKE-714
|
|
Fluke 714 Thermocouple Signal Simulator and Calibrator
The Fluke 714 is a simple yet powerful thermocouple calibration instrument. Connect to the device under test using standard thermocouple wire and the Fluke 714's built-in mini thermocouple jack. Source or measure 9 standard thermocouple types, including Type J, K, T, E, R, S, B, N, L, U. If you need a low value DC source, the Fluke 714 sources and measures DC mV signals also. The Fluke 714 calibrator is EMI-tolerant, dust and splash-resistant, and features a removeable battery door for quick and easy battery changes without disturbing calibration seals.
Fluke 714 - Features:
- Measure temperature signals from thermocouples
- Simulate and output thermocouple signals
- Generate 9 Thermocouple Types ( Type J, K, T, E, R, S, B, N, L, U)
- Calibrate Linear mV Signals, Indicators, Controllers, Transmitters, Recorders and Alarm/Trip devices
- Select Degrees ºF/ºC Scales
- Uses standard mini thermocouple jack connection
Technical Specifications - Fluke 714 Thermocouple Calibrator:
| Maximum Voltage |
30 Volts |
| Non-Operating Temperature |
-40 C to 60 ºC |
| Operating Temperature |
-10 C to 55 ºC |
| Relative Humidity |
95% (10 C to 30 ºC); 75% (30 ºC to 40 ºC);
45% (40 C to 50 ºC); 35% (50 ºC to 55 ºC) |
| Operating Altitude |
3,000 max |
| Shock |
1m drop test |
| Vibration |
Random, 2g, 5-500 Hz |
| Safety |
CSA C22.0 No. 1010.1:1992 |
| EMC |
EN50082-1:1992 and EN55022:1994 Class B |
| Size/Weight |
187 mm L x 27mm W x 32 mm D
(7.35 in L x 3.41 in W x 1.25 in D)
330g (12 oz) |
| Size/Weight (with Holster) |
201mm L x 98 mm W x 52 mm D
(7.93 in L x 3.86 in W x 2.06 in D)
600g (21oz) |
| Power |
9V Battery ANSI/NEDA 1604A or
IEC 6LR619V alkaline |
| Battery Life |
4 to 20 hours, typical, depending on
functions used |
| Warranty |
3 years |
| Function |
Range |
Resolution |
Accuracy |
Measure/Simulate
Thermocouple |
-200 to 1800 ºC
depending on type
(Type K,-200 to 1370 ºC) |
0.1 ºC or ºF
(1 C or F; Type B R S) |
0.3 ºC + 10uV
(Type K,-200 to 1370 ºC) |
| Measure/Simulate mV |
-10 to 75 mV |
0.01mV |
0.025% + 1 count |
Notes: 9 TC Types: J K T E R S B per NIST 175 and ITS-90; Type L U per DIN 43710 and IPTS-68
|
