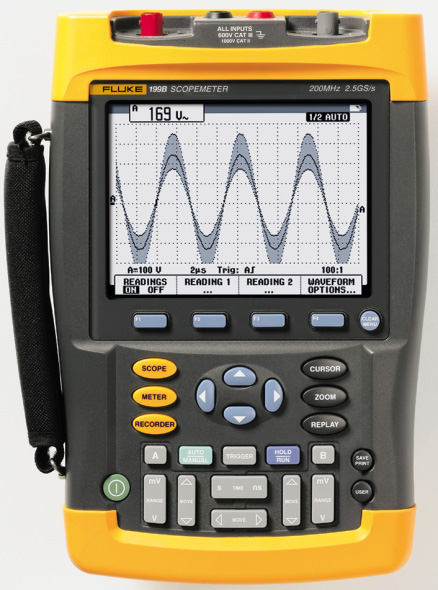

Fluke 199B 200 MHz ScopeMeter
|
Our Price: Call for Replacement Options
Item Number: 199B
Manufacturer: Fluke
Part Number: 199B
|
Fluke 199B 200 MHz ScopeMeter
ScopeMeter 190C and 190B Series have specifications you typically only find on high-end bench oscilloscopes. They offer up to 200 MHz bandwidth for capturing high frequency signals, as found in today’s state-of-the-art electronics, 2.5 GS/s real-time sampling and advanced memory and triggering functions. They’re rugged, compact and battery powered.
Features:
-
Dual-input - 200, 100 or 60 MHz bandwidth
-
Up to 2.5 GS/s real-time sampling per input
-
High waveform resolution of 3,000 datapoints per channel (NEW)
-
Connect-and-View™ automatic triggering and a full range of manual trigger modes
-
Digital Persistence for analyzing complex dynamic waveforms like on an analog scope
-
Fast display update rate for seeing dynamic behavior instantaneously
-
Automatic capture and replay of 100 screens
-
27,500 points per input record length using ScopeRecord™ mode
-
TrendPlot™ paperless chart recorder for trend analysis up to 22 days
-
Up to 1000 V independently floating isolated inputs
-
Waveform reference for visual comparisons and automatic pass/fail testing of waveforms
-
Vpwm function for motor drive and frequency inverter applications.
-
1000 V CAT II and 600 V CAT III safety certified
-
Four hours rechargeable Ni-MH battery pack
Specifications:
|
Bandwidth
|
200 MHz
|
|
Real-time sample rate
|
2.5 GS/s
|
|
Inputs and digitizers
|
2 plus external / DMM input
|
|
Independently floating isolated inputs
|
Up to 1000 V between inputs, references, and grounds
|
|
Timebase range
|
5 ns - 2 min/div
|
|
Input sensitivity
|
5 mV-100 V/div
|
|
Glitch capture
|
50 ns (µs/div - 1 min/div)
|
|
Scope measurements
|
Cursor: 7
Automatic: 30
|
|
Maximum record length
|
ScopeRecord mode: 37,500 pts per input
Scope mode: 3,000 pts per input
|
|
Memory
|
Screens: 10
Setups: 10
|
|
Display
|
144 mm full monochrome LCD with fast update rate
|
|
Persistence
|
N/A
|
|
Waveform
|
Waveform reference only
|
Environmental Specifications:
|
Operating Temperature
|
0°C to 50°C
|
|
Storage Temperature
|
-20°C to +60°C
|
|
Operating Altitude
|
3,000 m
|
Safety Specifications:
|
Electrical Safety
|
1,000V CAT II/600V CAT III (EN61010-1)
|
Mechanical & General Specifications:
|
Size
|
256 x 169 x 64 mm
|
|
Weight
|
2.0 kg
|
|
Warranty
|
3-years on main instrument, 1-year on accessories
|
|
Battery Life
|
NiMH: 4 hrs
|
|
RS/232/USB Interface
|
Optically isolated via optional PM9080/OC4USB for interfacing to Printer or PC
|
Fluke 199B Includes:
-
Fluke 199B 100 MHz ScopeMeter
-
BC190 Battery Charger/Line Voltage adapter
-
BP190 NiMH Battery Pack
-
Getting started booklet
-
User manual (CD-ROM)
-
TL75 Hard Point Test Lead Set
-
VPS210-G Voltage Probe (200 MHz, 10:1), Grey
-
VPS210-R Voltage Probe (200 MHz, 10:1), Red
Fluke SCC190 kit Includes:
 High sampling rate gives you the required resolution for detailed signal analysis
|
See what’s really happening
With a maximum real-time sampling rate of 2.5 GS/s per input, you can see what really happens, with 400 ps resolution. Both inputs have their own digitizer, so you can simultaneously acquire two waveforms and analyze them with the highest resolution and detail. If an anomaly flashes by on the screen, just press the Replay button to see it again. And thanks to the wider screen, you will always see a 12 divisions time-window – giving a far better overview of what’s happening both before and after the trigger event!
|
 Thanks to the deeper memory, very small parts of the waveform can be studied in full detail using ‘zoom’. |
Deeper waveform acquisition memory
The waveform memory of all oscilloscopes in both the 190B and 190C Series has been enlarged to allow as many as 3000 samples per channel to be acquired. This is 1800 samples more than before, giving much greater waveform resolution. You can use the ZOOM function to find tiny details in a long waveform, for example, the color burst in a video signal or a single impulse in a complex data-stream. All models also allow the high-resolution waveforms to be transferred to a PC for later detailed analysis using FlukeView ScopeMeter software.
|
 Color traces and the high contrast display make signal identification easy
|
Easier identification of traces, everywhere
The full-color display makes identification of individual waveforms easier, particularly when displaying large amplitude or multiple overlapping waveforms on screen. On-screen color labels, measurements and warnings are clearly linked to specific waveforms. The bright, high contrast display allows for clear reading under varying light conditions. And still a 4 hour battery operation time is assured!
|
 Digital persistence mode gives analog scope like display of complex and modulated signals
|
See dynamic signal behavior instantaneously
The Digital Persistence uses multiple intensity levels and user selectable decay time -it’s as if you’re looking at the display of an analog, real time oscilloscope! The fast display update rate that’s a standard on all models reveals signal changes instantaneously, useful for instance when making adjustments to a system under test.
|
 Pulse width triggering allows you to find anomalies like missing pulses
|
Advanced trigger modes
A wide choice of automatic and manual trigger modes gives you the flexibility to capture just about any signal you’ll encounter. Connect-and-View™ triggering is ideal for fast and easy checking of multiple test-points. The manual modes include time delay, video and pulse-width triggering. A fully isolated external trigger input is included for troubleshooting time relationships between two input signals synchronized to a third signal.
|
 Dual-slope triggering used to capture the eyepattern on a digital datastream.
|
More advanced triggering
Two new modes – ‘n-cycle triggering’ and ‘dual-slope triggering’ – have been added to the Fluke 190C Series to help you isolate the phenomena of interest. N-cycle triggering ensures you get a stable ‘live’ image of a signal, for example, in frequency dividers and clocked (synchronous) digital systems, or to synchronize on bursts of pulses. Dual-slope triggering enables the oscilloscopes to trigger on both rising and falling edges alike.
This means that any edge in the signal will act as trigger event and initiate a new waveform acquisition, a most useful capability when making eye-patterns from digital data-streams, or in conjunction with single-shot phenomena.
|
|
|
Automatic capture and replay of 100 screens
Scope users know how frustrating it is to see a one-time anomaly flash by, never to be seen again. Not with the ScopeMeter 190 Series! Now you can look back in time with a touch of the replay button. In normal use, the instrument continuously memorizes the last 100 screens. Each time a new screen is acquired, the oldest is discarded. At any moment you can “freeze” the last 100 screens and scroll through picture-by-picture or replay as a ‘live’ animation. Cursors can be used for further analysis. Or you can use the advanced trigger capabilities to capture up to 100 specific events. Two sets of 100 captured screens with individual time stamps can be stored for later recall or download to a PC.
|
 Use the 27,500 points memory of the ScopeRecord mode and zoom in for maximum detail
|
Deep memory for high-resolution ScopeRecord™
The ScopeRecord memory stores 27,500 points per input or more, for high resolution recording of events up to 48 hours, and captures fast intermit-tents and glitches as short as 50 ns. This continuous roll mode stores, for example, events like motion profiles, UPS-, power supply- and motor start-ups. All models also have a ‘Stop-on-Trigger’ in the ScopeRecord mode. This allows the ScopeMeter to store waveform data until the instrument is triggered or until a repetitive trigger signal is interrupted. This way, the instrument will, for example, automatically recognize a power failure and store the waveform data preceding it. And with 100 x zoom, you can look at the smallest details, like individual power cycles. Two of these 27,500 point recordings can be stored for later analysis.
|
 Use Vpwm and measure effective voltage on motor drive and frequency inverter outputs
|
Measure from mV to kV – fully isolated and safely!
The ScopeMeter 190 Series have three independently floating isolated inputs. While conventional oscilloscopes can only make measurements referenced to the line power ground, measurements on each of the Fluke ScopeMeter 190 Series inputs can be referenced to a different "low" level. This enables measurements in mixed circuits having different ground references, and also eliminates the risk of accidental ground short circuits. All inputs are safety certified for measurements in 1000 V CAT II and 600 V CAT III environments. And the standard probes cover a wide application range from mV to kV, making the ScopeMeter 190 Series ideal for micro-electronics to electrical power applications.
|
 A wide variety of measurements can be made on either Channel A or B
|
Analysis power
For analysis of waveforms, ScopeRecord and TrendPlot recordings, the ScopeMeter 190 Series feature 30 automatic measurements, plus cursors, zoom and a real-time clock. The analysis can be made directly or later when back in the office. Up to 2 recordings and 10 scope screens can be stored for analysis, print-out or download to a PC.
|
|
