Fluke 187 Digital/Analog Multimeter
Our Price: ITEM DISCONTINUEDReplaced byFluke 287
Item Number: Fluke 187
Manufacturer: Fluke
Part Number: 1567749
|
|

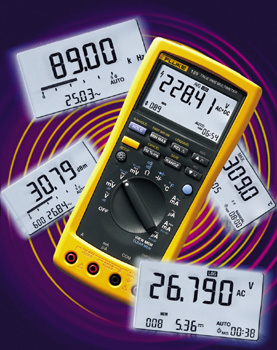

Fluke 187 Digital/Analog Multimeter
The two models 187 and 189 are the only choice for users who simply
want the best meter available. Impressive performance, amazing features and
astonishing extras make them the smartest meters.
Features:
- Extremely fast readings
- 50,000 counts display
- 0.025% basic DC accuracy
- True RMS AC + DC measurements
- 100 kHz AC bandwidth for voltage and current
- Ergonomic high-impact overmolded case
- Dual display with bargraph and two-level backlight
- Min/max/average with real time clock and 250 us Fast Min-Max
- Frequency, capacitance, duty cycle & pulse width measurements
- Resistance, conductance, continuity and diode measurements
- Temperature and dBV/dBm with selectable reference
- PC interface for data exchange and closed case calibration
- Battery and fuse access without breaking calibration seal
- EN 61010-1 (IEC 1010-1) CAT III 1000V /CAT IV 600V
- Lifetime warranty
| Specifications
|
| Voltage DC
|
| Accuracy*
|
+/- (0.025%+5)
|
| Max. Resolution
|
1 uV
|
| Maximum
|
1000 V
|
|
| Voltage AC
|
| Accuracy*
|
+/- (0.4%+40)
|
| Max. Resolution
|
1 uV
|
| Maximum
|
1000 V
|
|
| Current DC
|
| Accuracy*
|
+/- (0.15%+2)
|
| Max. Resolution
|
0.01 uA
|
| Maximum
|
10 A
|
|
| Current AC
|
| Accuracy*
|
+/- (0.75%+5)
|
| Max. Resolution
|
0.01 uA
|
| Maximum
|
10 A
|
|
| Resistance
|
| Accuracy*
|
+/- (0.05%+2)
|
| Max. Resolution
|
0.01 Ohm
|
| Maximum
|
500 M Ohm
|
|
| Capacitance
|
| Accuracy*
|
+/- (1.0%+5)
|
| Max. Resolution
|
1 pF
|
| Maximum
|
50,000 uF
|
|
| Frequency
|
| Accuracy*
|
+/- (0.005%+1)
|
| Max. Resolution
|
0.01 Hz
|
| Maximum
|
1 MHz
|
|
| Temperature
|
| Accuracy*
|
+/- (1.0%+1°C)
|
| Max. Resolution
|
0.1°C
|
| Range
|
-200°C to 1350°C
|
|
| Conductance
|
| Accuracy*
|
+/- (1%+10)
|
| Max. Resolution
|
0.01 nS
|
| Maximum
|
500 nS
|
|
| dBm and dBV
|
| Accuracy*
|
+/- 0.1 dB
|
| Max. Resolution
|
0.01 dB
|
| Range
|
-52 to 60 dB
|
|
| Note
|
| *
|
Accuracies are best accuracies for each function
|
|
| Environmental Specifications
|
| Operating temp
|
|
| Storage temperature
|
|
| Humidity (Without Condensation)
|
|
0% to 90% (0 DegC - 35 DegC)
|
|
0% to 70% (35 DegC - 55 DegC)
|
|
| Safety Specifications
|
| Overvoltage category
|
|
EN 61010-1 to 1000 V CAT III.
|
|
EN 61010-1 to 600 V CAT IV.
|
|
| Agency Approvals
|
|
CSA, UL, TÜV, VDE Pending
|
|
| Mechanical & General Specifications
|
| Size
|
|
| Weight
|
|
| Warranty
|
|
| Battery life
|
| Alkaline:
|
Approx. 72 hours typical, without backlight
|
|
|
