Fluke TiX660 Infrared Camera
|
Item Number: TiX660
Manufacturer: Fluke
Part Number: TiX660
* Whole number only
|

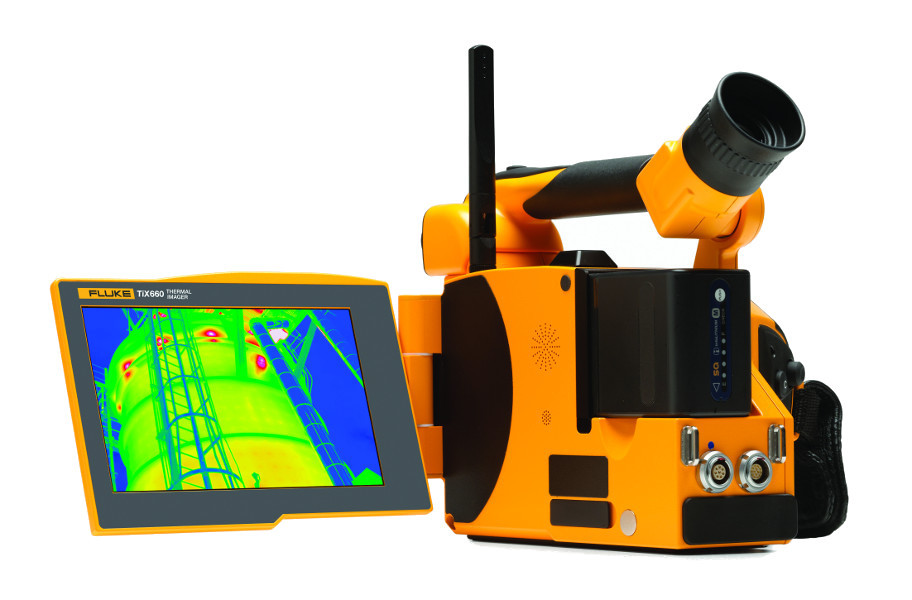

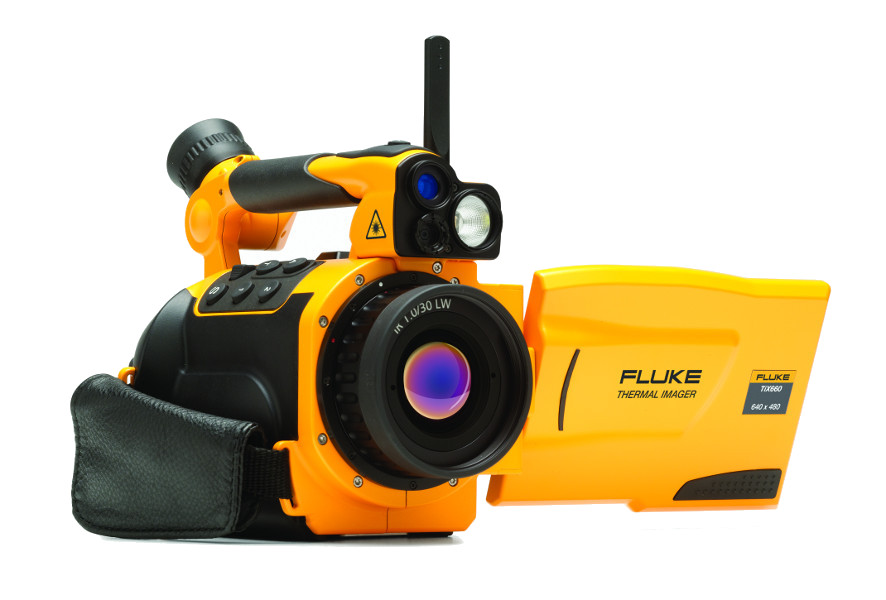

 Fluke TiX660 Infrared Camera w/Eyepiece Fluke TiX660 Infrared Camera w/Eyepiece (Display) |
|
Fluke TiX660 Infrared Camera
The first HD infrared camera with Fluke Connect™, the Professional Series TiX660’s image and temperature precision are heightened by a SuperResolution of up to 1,228,800 pixels. The user can work from a safer distance with advanced focus options such as, LaserSharp® Auto Focus, auto focus, manual and EverSharp multifocal recording features.
Compatible with 8 optional lens options (2x and 4x telephoto lenses, 2 wide angle lenses, 3 macro lenses, and 1 standard lens)
R&D testing of material absorbency
and moisture permeation |
Inspecting water levels in tanks
|
Electrical utility distribution pole
transformer |
Easy to see details from long distances
|
Features
- Connect to the largest network of wireless test and measurement tools with Fluke Connect™ (not available in all areas).
- Conduct inspections from a safe distance and still get close-in shots with the 32 times on-camera digital zoom.
- Choose the most convenient image transfer protocol for your application: Camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015. SmartView® software: SD card. USB 2.0, GigE Vision and RS232 available in 2015
- Get the sharpest ever IR-Fusion® images with an 8 MP visible light camera.
- Versatile viewing options for in-field viewing of images with viewfinder for outdoor use.
- User defined programmable buttons to personalize for quick access to most used features.
- The only handheld cameras that can be sub-windowed to 240 Hz frame rate for advanced applications (add on option)
Technical Specifications
| Image Quality |
| IFOV (spatial resolution) |
0.8 mRad |
Image resolution (pixel)
|
640 x 480 (307,200 pixels) |
| 1280 x 960 (1,228,800 pixels) (SuperResolution mode) |
| Frame rate (@ max. image resolution) |
60 and 9 Hz |
| SuperResolution & Dynamic SuperResolutin (resolution enhancement) |
Yes, MicroScan technology quadruples IR measurement pixels
|
| Subwindowing modes available - subwindowing options are not available on 9 Hz models: (add on at time of order) |
Option 1: 384 x 288 (120 fps)
Option 2: 640 x 120 (240 fps)
|
| Field of View (FOV) w/standard 30mm lens |
30.9° x 23.1°
|
| Thermal sensitivity (NETD) |
≤ 0.03 °C at 30 °C target temp (30 mK) |
| Spectral range |
7.5 µm to 14 µm |
| Wireless Connectivity |
| Fluke Connect® compatible |
Yes, with Fluke Connect® WiFi SD Card, available in approved certified regions only |
| IR-Fusion® Technology |
| AutoBlend™ mode |
Yes |
Viewing modes
|
Picture-in-picture, continuous blending, color alarms (above and below user defined temperatures) |
| Focus System |
| LaserSharp® Auto Focus |
Yes |
| Auto focus |
Yes |
| Manual focus |
Yes, with the touch of a finger for tighter views |
EverSharp multifocal recording
|
Yes, Multifocal recording captures images from different focal distances and combines them into one image displaying each object sharply for the best image quality |
| Temperature Measurement |
Range
|
-40 °C to +1200 °C (-40 °F to 2192 °F), High temperature option - request at time of order: up to 2000 °C (3632 °F) |
| Accuracy |
± 1.5 °C or ± 1.5 % |
Correction functions
|
LDC™ - Laser rangefinder based distance correction, emissivity (manual or material table) |
| Transmissivity, ambient temperature, humidity (option) |
| Data Storage and Image Capture |
| Image/video storage |
SDHC memory card |
Interfaces for image/data transfer
|
Supported in camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015 |
| SmartView® software: SD card. USB 2.0, GigE Vision and RS232 available in 2015 |
| General Specifications |
| Laser pointer |
Yes, laser class: 2 |
Laser distance meter
|
Accuracy: ± 1.5 mm
Range: 70 m (230 ft)
Wavelength: 635 nm (red)
Laser class: 2 |
Display
|
Extra-large 5.6" color TFT display, 1280 × 800 pixel resolution, Suitable for daylight operation |
| Geo-localization |
Built-in GPS for geo-referencing |
| Digital visible light camera |
Up to 8 megapixel resolution for image and video recording |
| Digital zoom |
Up to 32x digital zoom |
| Text annotation |
Yes |
| Voice annotation |
Yes |
| Audio |
Integrated microphone and loudspeaker for voice annotations |
| A/D conversion |
16 bit |
Power supply
|
External: 12 VDC ... 24 VDC
Battery: Standard Li-Ion video camera battery |
| Replaceable Smart Batteries with LED level indicator |
Two
|
| Operating temperature |
-25 °C to +55 °C (-13 °F to 131 °F) |
| Storing temperature |
-40 °C to +70 °C (-40 °F to 158 °F) |
| Humidity |
Relative humidity 10 % to 95 %, non-condensing |
| Shock |
Operational: 25G, IEC 68-2-29 |
| Vibration |
Operational: 2G, IEC 68-2-6 |
| Protection class |
IP54 |
| Ergonomics |
Camcorder w/ handle |
| Viewfinder |
Tiltable LCoS color viewfinder display, 800 × 600 pixel resolution |
| Dimensions (with standard 1.0/30 mm lens) |
210 mm × 125 mm × 155 mm (8.25 in x 4.9 in x 6.1 in)
|
| Weight (with standard 1.0/30 mm lens) |
1.95 kg (4.3 lb) |
Measurement functions (selection)
|
Multiple measurement spots & Regions of Interest (ROIs), hot/cold spot detection, isotherms, profiles, differences |
Automatic functions (selection)
|
Focus, image, level, range, NUC, lens recognition, image optimization, alarm sequence |
| SmartView® software |
Yes |
Supported languages
|
Czech, Dutch, English, Finnish, French, German, Hugarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese and Turkish. |
| Warranty |
2 years |
|
The Fluke TiX640 image resolution is 640 x 480 (307,200 pixels) and the frame rate is 60 Hz.
|
The Fluke TiX1000 image resolution is 1024 x 768 (786,432 pixels) and the frame rate is 30 Hz.
|
