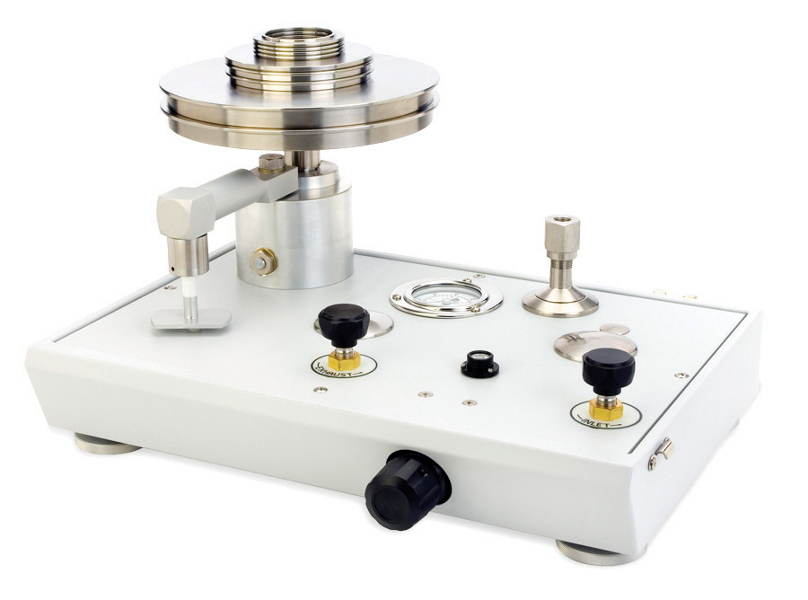

Fluke P3000 Pneumatic Deadweight Tester
|
Item Number: P3000
Manufacturer: Fluke
Part Number: P3000
Product Options
* denotes required field
Fluke P3000 Model Selection*
You must select an option for 'Fluke P3000 Model Selection'.
* Whole number only
|
|
Fluke P3000 Pneumatic Deadweight Tester - Available in Other Ranges/Engineering units: Call for Pricing
These versatile instruments provide calibrations from 1-30 inHg vacuum (0.03-1 bar) and 3-500 psi (0.2-35 bar) in one extremely accurate yet easy to use primary standard. A selector valve converts the unit from pressure to vacuum mode without the need to exchange pistons. Units are manufactured to the highest standards with certified accuracies traceable to International Standards Laboratories such as the National Institute of Standards and Technology (NIST). These piston/cylinder type pneumatic standards provide excellent stability, repeatability and accuracy. An optional built-in hand pump can be added for both pressure and vacuum generation.
Features
- 0.015% of reading accuracy standard (0.008% optional)
- 1-30 inHg vacuum (0.03-1 bar vacuum)
- 3-500 psi (0.2-35 bar) pressure
- inH2O and mbar ranges available
- Series 3 non-magnetic stainless steel weights
- Units can be trimmed to local gravity FOC
Technical Specifications
|
Accuracy
|
|
Accuracy*
|
±0.015% of reading (±0.008% optional)
*Accuracy based on % of reading from 10% to 100% of the piston range when used in accordance with the corrections found on the calibration certificate. Below 10% ± (accuracy class) x 10% of the piston range.
|
|
Mass and PCU Materials of Construction
|
|
Standard weight material
|
Series 3 non-magnetic austenitic stainless steel
|
|
Weight density
|
7.8 g/cm³
|
|
Optional fractional weights
|
Solution heat treated aluminum
|
|
Weight density
|
2.7 g/cm³
|
|
Models P3011, P3012, P3013, P3022, P3023, P3025 (V)
|
Piston Material: Ceramic
Cylinder Material: Martensitic steel
Coefficient of Expansion: 11 ppm/°C
|
|
Models P3014, P3015, P3025 (P) P3031, P3032 (P & V)
|
Piston Material: Tungsten carbide
Cylinder Material: Martensitic steel
Coefficient of Expansion: 16.5 ppm/°C
|
|
Model P3016
|
Piston Material: Tungsten carbide
Cylinder Material: Tungsten carbide
Coefficient of Expansion: 11 ppm/°C
|
| General |
| Test port adaptors |
1/8, 1/4, 3/8 and ½ NPT or BSP |
| Instrument weight |
24 lbs |
| Instrument size |
17.5 W x 12 D x 8.5 H |
| Mass set weight (typical) |
65 lbs |
| Minimum Standard Weight Increments |
| P3012, P3022 Pressure |
1 inH2O, (5 mbar) |
| P3013, P3023 Pressure |
2 inH2O, (10 mbar) |
| P3014, P3015, P3025 Pressure |
1 psi, (0.1bar) |
| P3016, P3031, P3032 |
1 psi, (0.1bar) |
| P3011, P3022, P3023, P3025 Vacuum |
0.2 inHg (10 mbar) |
|
Optional Fractional Weights
|
|
P3014, P3015, P3025 Pressure
|
0.1 psi (0.01 bar)
|
|
Built-in Hand Pumps
|
|
Pressure mode
|
Max pressure 300 psi (20 bar)
|
|
Vacuum mode
|
To 90% vacuum
|
|
Operating Fluid for Liquid Lubricated Models
|
|
55-655
|
mineral oil (standard)
|
|
Krytox
|
for oxygen-safe applications (optional)
|
|
Options
|
|
PressCal Software
|
Windows-based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Calibration details are then stored and/or used to automatically create a calibration certificate. PressCal is provided as standard with all 0.008% instruments.
|
|
Krytox
|
As operating fluid for liquid lubricated gas operated models.
|
Model Information
| Model Name |
Description |
| P3025-5-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 0.02 to 3.5 MPa
Vacuum Range 3 to 100 kPa
* -P indicates built-in pump optional. |
| P3025-4-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 20 to 3,500 kPa
Vacuum Range 3 to 100 kPa
* -P indicates built-in pump optional. |
| P3025-3-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 0.2 to 35 kgf/cm²
Vacuum Range 30 to 760 mmHg
* -P indicates built-in pump optional. |
| P3025-2-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 0.2 to 35 kgf/cm²
Vacuum Range 30 to 760 mmHg
* -P indicates built-in pump optional. |
| P3025-1-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 0.2 to 35 bar
Vacuum Range 30 to 1,000 mbar
* -P indicates built-in pump optional. |
| P3023-7-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 12 to 800 inH2O
Vacuum Range 1 to 30 inHg
* -P indicates built-in pump optional. |
| P3023-6-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 30 to 2,000 mbar
Vacuum Range 30 to 1,000 mbar
* -P indicates built-in pump optional. |
| P3023-4-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 3 to 200 kPa
Vacuum Range 3 to 100 kPa
* -P indicates built-in pump optional. |
| P3022-7-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 5 to 400 inH2O
Vacuum Range 1 to 30 inHg
* -P indicates built-in pump optional. |
| P3022-6-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 15 to 1,000 mbar
Vacuum Range 30 to 1,000 mbar
* -P indicates built-in pump optional. |
| P3022-4-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Air Operated - Dual PCU
Pressure Range 1.5 to 100 kPa
Vacuum Range 3 to 100 kPa
* -P indicates built-in pump optional. |
| P3011-9-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Vacuum Operated – Single PCU
Vacuum Range 30 to 760 mmHg
* -P indicates built-in pump optional. |
| P3011-8-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Vacuum Operated – Single PCU
Vacuum Range 1 to 30 inHg
* -P indicates built-in pump optional. |
| P3011-6-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Vacuum Operated – Single PCU
Vacuum Range 30 to 1,000 mbar
* -P indicates built-in pump optional. |
| P3011-4-P* |
P3000 Series Vacuum and Dual Vacuum/Pressure Model
Vacuum Operated – Single PCU
Vacuum Range 3 to 100 kPa
* -P indicates built-in pump optional. |
| P3016-6 |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 0.1 to 7 MPa |
| P3016-4 |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 100 to 7000 kPa |
| P3016-3 |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 10 to 1000 psi |
| P3016-2 |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 1 to 70 kgf/cm² |
| P3016-1 |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 1 to 70 bar |
| P3015-5-P* |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 0.02 to 3.5 MPa
* -P indicates built-in pump optional. |
| P3015-1-P* |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 0.2 to 35 bar
* -P indicates built-in pump optional. |
| P3015-4-P* |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 20 to 3,500 kPa
* -P indicates built-in pump optional. |
| P3015-2-P* |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 0.2 to 35 kgf/cm²
* -P indicates built-in pump optional. |
| P3015-3-P* |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 3 to 500 psi
* -P indicates built-in pump optional. |
| P3014-5-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 0.02 to 1 MPa |
| P3014-4-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 20 to 1,000 kPa |
| P3014-3-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 3 to 150 psi |
| P3014-2-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 0.2 to 10 kgf/cm² |
| P3014-1-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 0.2 to 10 bar |
| P3013-7-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 12 to 800 inH2O |
| P3013-6-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 30 to 2,000 mbar |
| P3013-4-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 3 to 200 kPa |
| P3012-7-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 400 inH20 |
| P3012-6-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 15 to 1,000 mbar |
| P3012-4-P |
P3000 Series Single Pressure Model
Air Operated – Single PCU
Pressure Range 1.5 to 1000 kPa |
|
Fluke P3100 Models are available in single or dual piston formats for increased operating ranges. Units can be supplied in psi, bar, kgf/cm², and MPa. These robust instruments are highly accurate, quick and easy to use.
|
Fluke P3200 are available in single or dual piston formats for increased operating ranges. Units can be supplied in psi, bar, kgf/cm², and MPa. These robust instruments are highly accurate, quick and easy to use.
|
