Fluke i800 AC Current Clamp Probe
Our Price: $302.95
Sale Price: $272.66
Item Number: I800
Manufacturer: Fluke
Part Number: I800
* Whole number only
|
|

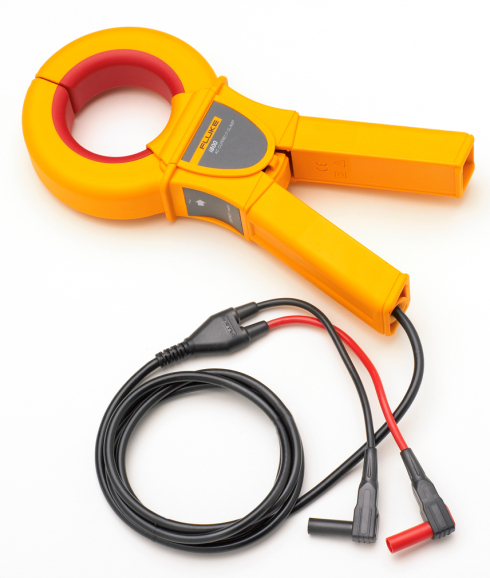

Fluke i800 AC Current Clamp Probe
The Fluke model i800 is a clamp-on AC current probe designed to extend the current measuring capability of a digital multimeter to 800 amperes AC. The clamp is compatible with a DMM that accepts 4mm shrouded banana plugs and has an AC milliamp range.
Features:
-
Measures AC current from 100mA to 800 A rms
-
30 Hz to 10 kHz frequency range
-
CAT III 600 V rating
-
Accepts up to 54 mm (2.1 in) diameter conductor size
-
1000:1 conversion factor for easy calculation
-
Rugged positive action design
Specifications:
|
Nominal Current Range
|
800 A rms
|
|
Continous Current Range
|
100 mA to 800 A rms
|
|
Maximum Non-Destructive
Current
|
1500 A rms (50/60 Hz)
|
|
Lowest Measurable Current
|
100 mA
|
|
Basic accuracy
|
±1% of reading
|
|
Useable Frequency
|
30 Hz - 10 kHz (-3dB)
|
|
Output Level(s)
|
1 mA/A
|
Safety Specifications:
|
Safety
|
CAT III 600V
|
|
Maximum Voltage
|
600 V ac rms or dc
|
Mechanical & General Specifications:
| Warranty |
1 year |
| Maximum Conductor Diameter |
54 mm (2.13 inches) |
| Output Cable Length |
1.6 m (63 inches) |
| Lead Connector |
Shrouded Banana Plugs |
|
