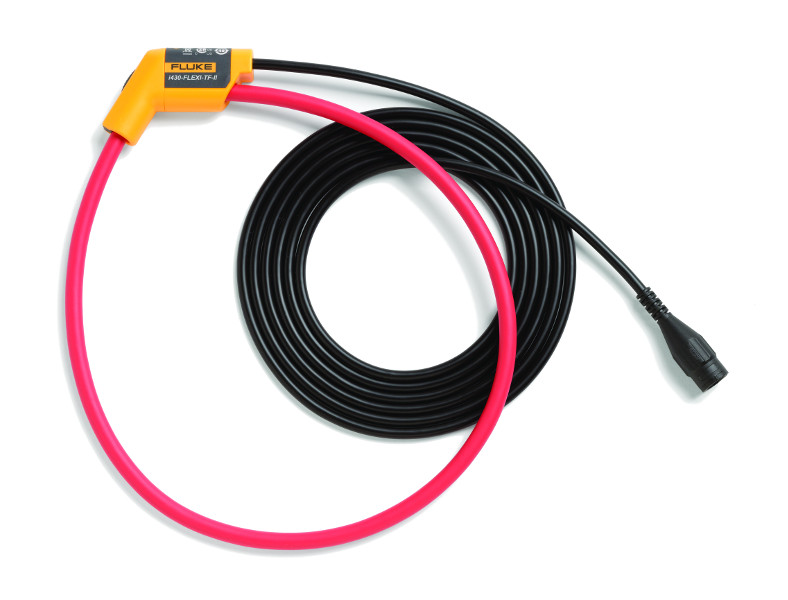

Fluke I430-FLEXI-TF-II Current Clamp
|
Item Number: I430-FLEXI-TF-II
Manufacturer: Fluke
Part Number: I430-FLEXI-TF-II
Product Options
* denotes required field
I430-FLEXI-TF-II Pack Option*
You must select an option for 'I430-FLEXI-TF-II Pack Option'.
* Whole number only
|

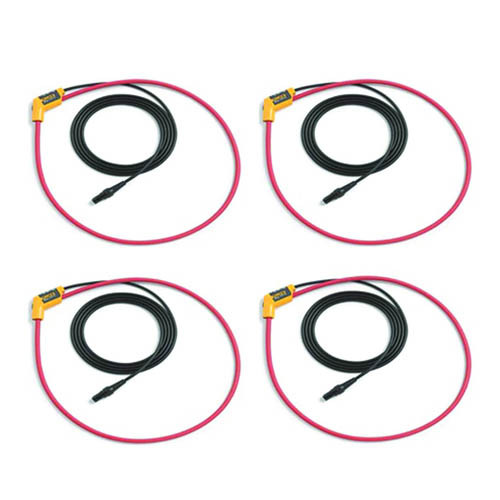

 Fluke I430-FLEXI-TF-II Current Clamp Fluke I430-FLEXI-TF-II Current Clamp (4 Pack) |
|
Fluke I430-FLEXI-TF-II Current Clamp
The i430-Flexi-TF-11 is augmented for current and precise measurement of up to 6000 AMP AC on thick and difficult to read conductors. This unit is a 24 inch flexible AC current probe compatible and for use with the Fluke 430 series Power Quality Analyzers such as the Series II.
Technical Specifications
ELECTRICAL SPECIFICATIONS
| Measuring range |
0.5 to 6000 A ac |
Maximum non-destructive
current |
100 kA (50/60 Hz)
|
Output signal
|
86.6 mV at 1000A/50Hz (on 1 MΩ)
85.0 mV at 1000A/50Hz (on 50 kΩ) |
| Basic accuracy |
±1% of reading at 25 °C, 50 Hz |
Linearity
|
±0.2% of reading at 10%...100% of
range |
| Noise |
<1 mV rms at 10 Hz …10 kHz |
Additional errors:
● temperature coefficient
over operating temperature
range
● with position of conductor
in the probe window :
A = 12.7 mm (0.5 in)
B = 20.3 mm (0.8 in)
C = 35.6 mm (1.4 in)
● 0.5 to 30 A
|
0.05 % of reading /°C,
0.09 % of reading /°F
±0.5 % of reading
±1.0 % of reading
±2.0 % of reading
±1 count or 0.1 A (whichever is
greater)
|
External magnetic field
rejection in reference to
external current |
40 dB (with cable >100 mm from the
head coupling and r-coil)
|
Phase shift (fundamental
frequency) |
< ±1°
|
| Bandwidth (-3 dB) |
10 Hz to 10 kHz |
| Frequency derating |
I x f ≤385 kA Hz |
| Working voltage |
1000V CAT III, 600V CAT IV |
GENERAL SPECIFICATIONS
| Weight |
153 g |
| Transducer length |
610 mm (24 in) |
| Transducer diameter |
7.5 mm (0.3 in) |
| Minimum bending radius |
38 mm (1.5 in) |
Cable length from
transducer to BNC |
2.5 m (98.4 in)
|
Temperature, operating
|
-20 °C to +70 °C (-4 °F to +158 °F)
Temperature of conductor under test
shall not exceed 80 °C (176 °F) |
| Temperature, non-operating |
-40°C to + 80 °C (-40 °F to +176 °F) |
| Relative Humidity, operating |
15 to 85 %, non condensing |
| Altitude, operating |
3000 m |
| Altitude, storage |
12 km |
|
Fluke 434 II Energy Analyzer is the ideal tool for energy logging. Utilizing the new Energy Loss Calculator function, the 434 II measures the fiscal cost of energy wasted due to poor power quality.
|
Fluke 435 II is equipped with advanced power quality functions and energy monetization capabilities, there is no electrical issue this model can’t handle.
|
Fluke 437 Series II 400Hz Power Quality and Energy Analyzer is designed specifically for the defense and avionics industries. Capable of measuring up to 400 Hz.
| |
