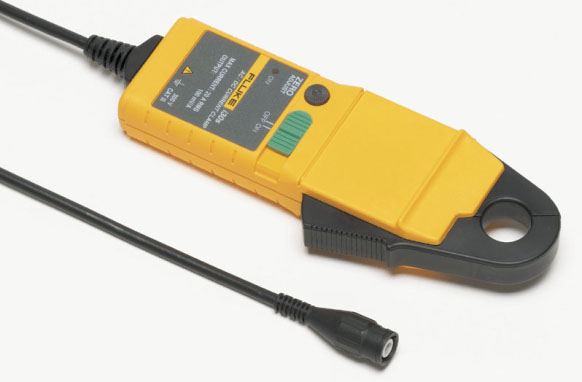

Fluke i30s AC/DC Current Clamp
Our Price: $605.95
Sale Price: $545.36
Item Number: I30S
Manufacturer: Fluke
Part Number: I30S
* Whole number only
|
|
Fluke i30s AC/DC Current Clamp
The Fluke i30s current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.
Fluke i30s Electrical Specifications:
|
Specified Current Range
|
30 mA to 30A dc, 30 mA to 20 A ac rms
|
|
Usable Current Range
|
5 mA to 30 A dc, 30 mA to 20 A ac rms
|
|
Crest Factor
|
1.4"
|
|
Output Sensitivity
|
100 mV/A
|
|
Accuracy (at +25°C)
|
± 1% of reading ± 2 mA
|
|
Resolution
|
± 1 mA
|
|
Load Impedance
|
> 100 k Ohms
|
|
Conductor Position Sensitivity
|
± 1% relative to center reading
|
|
Frequency Range
|
DC to 100 kHz (-0.5 dB)
|
|
Phase Shift below 1 kHz
|
< 2 degrees
|
|
Temperature Coefficient
|
± 0.01% of reading/°C
|
|
Power Supply
|
9V Alkaline, MN1604/PP3, 30 hours, low battery indicator
|
|
Working Voltage
|
300 V ac rms or dc
|
General Specifications:
| Maximum Conductor Size |
19 mm diameter |
| Output Connection |
Safety BNC connector, supplied with safety 4 mm adapter |
| Output Zero |
Manual adjust via thumbwheel |
| Cable Length |
2 meters |
| Operating Temperature Range |
0 °C to +50 °C |
|
Storage Temperature Range
(with battery removed)
|
-20 °C to +85 °C |
| Operating Humidity |
15 % to 85 % (non-condensing) |
| Weight |
250 G |
| Safety Standards |
BS EN 61010-1:2001
BS EN 61010-2-032: 2002
BS EN 61010-031: 2002
300 Vrms, Category III, Pollution Degree 2
Use of the probe on uninsulated conductors is limited to
300 V acrms or dc frequencies below 1 kHz.
|
| EMC Standards |
EN 61326: 1998 + A1, A2, & A3 |
|
