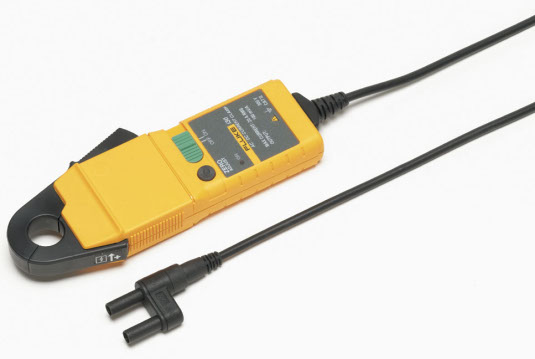

Fluke i30 AC/DC Current Clamp
Our Price: $479.70
Sale Price: $431.73
Item Number: I30
Manufacturer: Fluke
Part Number: I30
* Whole number only
|
|
Fluke i30 AC/DC Current Clamp
The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement.
Fluke i30 Electrical Specifications:
|
Specified Current Range
|
30 mA to 30 A dc, 30 mA to 20 A ac rms
|
|
Usable Current Range
|
5 mA to 30 A dc, 30 mA to 20 A ac rms
|
|
Crest Factor
|
1.4"
|
|
Output Sensitivity
|
100 mV/A
|
|
Accuracy (at +25 °C)
|
± 1% of reading ±2 mA
|
|
Resolution
|
±1 mA
|
|
Load Impedance
|
> 10 k Ohms and <100pF
|
|
Conductor Position Sensitivity
|
± 1% relative to center reading
|
|
Frequency Range
|
DC to 20 kHz (-0.5 dB)
|
|
Temperature Coefficient
|
± 0.01% of reading/°C
|
|
Power Supply
|
9V Alkaline, MN1604/PP3, 30 hours, low battery indicator
|
|
Working Voltage
(see safety standards section)
|
300V ac rms or dc
|
Fluke i30 General Specifications:
| Maximum Conductor Size |
19 mm diameter |
| Output Connection |
4 mm safety connector |
| Output Zero |
Manual adjust via thumbwheel |
| Cable Length |
1.5 meters |
| Operating Temperature Range |
0 °C to +50 °C |
|
Storage Temperature Range
(with battery removed)
|
-20 °C to +85 °C |
| Operating Humidity |
15 % to 85 % (non-condensing) |
| Weight |
250 g |
| Safety Standards |
BS EN 61010-1:2001
BS EN 61010-2-032:2002
BS EN 61010-031:2002
300 Vrms, Category III, Pollution Degree 2
Use of probe on uninsulated conductors is limited
to 300 V ac rms or dc frequencies below 1 kHz
|
| EMC Standards |
EN 61326: 1998 + A1, A2, A3 |
|
