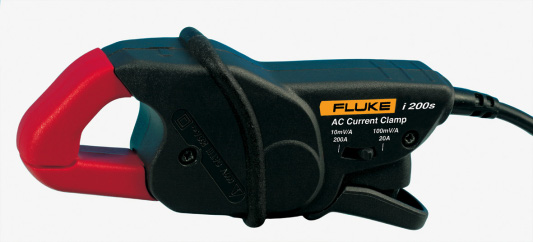

Fluke i200s AC Current Clamp
Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools.
The Fluke i200s is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.
Features:
-
Companion to your scopemeter, power quality meter or digital multimeter
to measure up to 200 A AC
-
Included adapter for DMM's
-
Two ranges: 20 A & 200A, 10 or 100 mV/ Amp output
-
Take accurate current readings without breaking the circuit
-
Max. conductor Ø 20 mm
-
CAT III 600V safety rating
Specifications:
|
Nominal Current Range
|
20A
200A
|
|
Continuous Current Range
|
0.1 A - 24 A
0.5 A - 200 A
|
|
Maximum Non-Destructive
Current
|
240A
|
|
Lowest Measurable Current
|
0.1 A
|
|
Basic Accuracy
|
1.5% +0.5 A
(48-65 Hz)
(% reading + floorspec)
|
|
Useable Frequency
|
40 Hz - 10 kHz
|
|
Output Level(s)
|
100 mV/A
10 mV/A
|
Safety Specifications:
|
Safety
|
CAT III, 600V
|
|
Maximum Voltage
|
600 V AC
|
Mechanical & General Specifications:
| Warranty |
1 year |
|
Maximum Conductor
Diameter
|
20 mm |
|
Maximum Conductor Size
(busbar)
|
20 x 5 mm |
| Output Cable Length |
2.0 m |
| BNC Adapter |
Yes |
|
BNC to Banana Adapter
Included
|
Yes |
|
