Fluke i1000s AC Current Probe
Our Price: $555.45
Sale Price: $499.91
Item Number: I1000S
Manufacturer: Fluke
Part Number: I1000S
* Whole number only
|
|
Fluke i1000s AC Current Probe

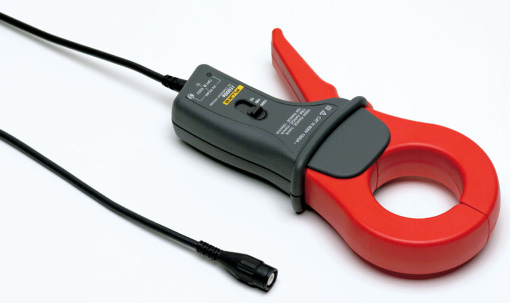

The Fluke i1000s is a clamp-on ac current probe designed to expand oscilloscope applications in industrial and power environments. The Current Probe (shown in figure) provides the following features: Ideal for measuring distorted current waveforms and harmonics.
Features:
-
Allows accurate measurement of currents from 100 mA to 1000 A rms,
5 Hz to 100 kHz without breaking into the circuit
-
A passive filter eliminates noise and ring on rapidly rising di/dt waveform,
ensuring accurate screen displays
-
Connects directly to an oscilloscope through a reinforced coaxial cable and
an insulated BNC connector
-
Can be used with Multimeters with optional PM9081/001 BNC/Banana adapter
-
One year warranty
Specifications:
|
Nominal Current Range
|
10 A
100 A
1000 A
|
|
Continuous Current Range
|
0.1 A - 10 A
0.1 A - 100 A
1 A - 1000 A
|
|
Maximum Non-Destructive Current
|
2000 A
|
|
Lowest Measurable Current
|
0.1
|
|
Basic Accuracy
|
1% + 1 A
(48-65 Hz)
(% reading + floorspec)
|
|
Useable Frequency
|
5 Hz - 100 kHz
|
|
Output Levels
|
100 mV/A
10 mV/A
1 mV/A
|
Safety Specifications:
|
Safety
|
CAT III, 600 V
CAT IV, 300V
|
|
Maximum Voltage
|
600 V AC
|
Mechanical & General Specifications:
| Warranty |
1 year |
| Maximum Conductor Diameter |
54 mm |
| Output Cable Length |
1.6 m |
| BNC Adapter |
Yes |
|
