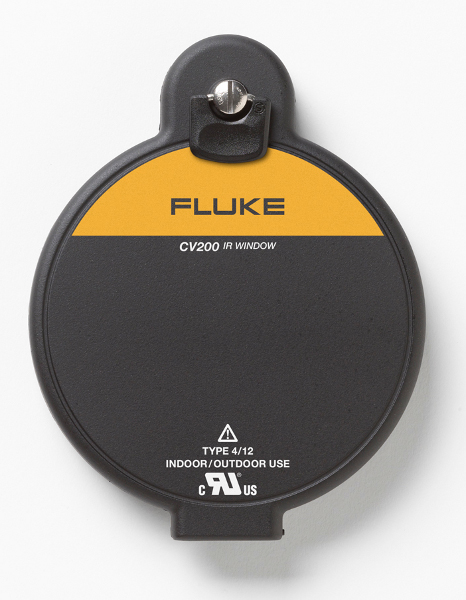

Fluke CV Series ClirVu® Infrared Window
Increase the safety and speed of electrical thermal imaging inspections with the new Fluke ClirVu® IR Windows. Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.
- No more removing the panel door for installation
- Work permit requirements and NFPA 70E processes are significantly reduced
- Full PPE is often not required so inspections are done faster and more comfortable
Features
Save time with quick and easy installation with the CV Series – 5 minutes or less.
- One technician
- One hole with standard Greenlee® punch
- Panel door does not need to be removed
- Grounds instantly to metal enclosure with patent-pending AutoGround™ process
- Maintains panel arc test ratings up to 63kA when properly installed
- NFPA 70E processes significantly reduced due to less work permit requirements
- Faster and more comfortable inspections because full PPE is often not required
- Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance
- CV is Torture Tested™ to the highest arc blast test ratings IEEE C37.20.7: 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE
- Convenience of both quick turn or security keyed access
Technical Specifications
|
The Fluke Ti100 is the perfect general use camera designed for value conscious professionals. It is a rugged, lightweight, point-and-shoot thermal imager with a focus-free infrared.
|
The Fluke Ti110 Thermal Imager has a 160 x 120 resolution, which allows you to perform infrared inspections faster and more efficiently and thoroughly document problem areas for additional follow-up.
|
Fluke Ti27 boasts 240x180 infrared resolution, industry leading spatial resolution, and a high definition display creating the sharpest images in its price class.
| |
