Fluke BT 510 Series Battery Test System
|
Item Number: Fluke-BT510
Manufacturer: Fluke
Part Number: Fluke-BT510
* Whole number only
|

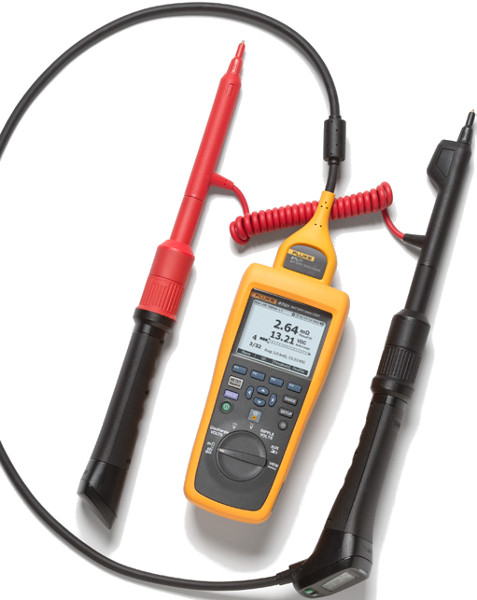

 Fluke BT 510 Battery Tester with Remote Probe Fluke BT510 Remote Probe LCD |
|
Fluke BT 510 Battery Analyzer
Features
- Easily Measure: Battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and optionally battery temperature
- Sequence Mode: Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature (with BTL21 intelligent test probe).
- Data logging: All measured values are automatically logged during testing and can be reviewed before downloading
- Easy user interface: Quick, guided setup ensures the tests are done right the first time, everytime
- Threshold comparison: Configure multiple reference values and thresholds for resistance and voltage. Comparison result feedback after each measurement via visual and verbal cues.
- Advanced test leads: Ergo design coaxial two pole kelvin test pins with remote record button reduce test time
- Extended Test probes: Longer reach probes for stacked cells

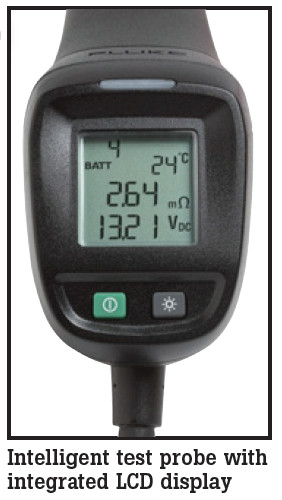

- Intelligent test probe set (BT520 and BT521) with LCD: Integrated LCD display, infrared non-contact temperature readingst (BT521 only), flashlight, audio speeach feedback and capture voltage measurements and temp recording automatically or via integrated record button
- Advanced data analysis: Quickly view trends, analyze results and generate reports with battery management software
- Nice reports: Generate a PDF report on the PC with analysis graphics and data table or quick email format report with csv file on the mobile app
- Wireless communication: For data download and remote display while measuring. Browse and email measurement data via iOS app
- Great Battery life: More than eight hours continuous operation
- USB port: For fast data download to supplied data analysis and report management application software
- Highly rated in safety: CAT III 600 V, 1000 V dc max. rated for safe measurements all around the battery power supply equipment

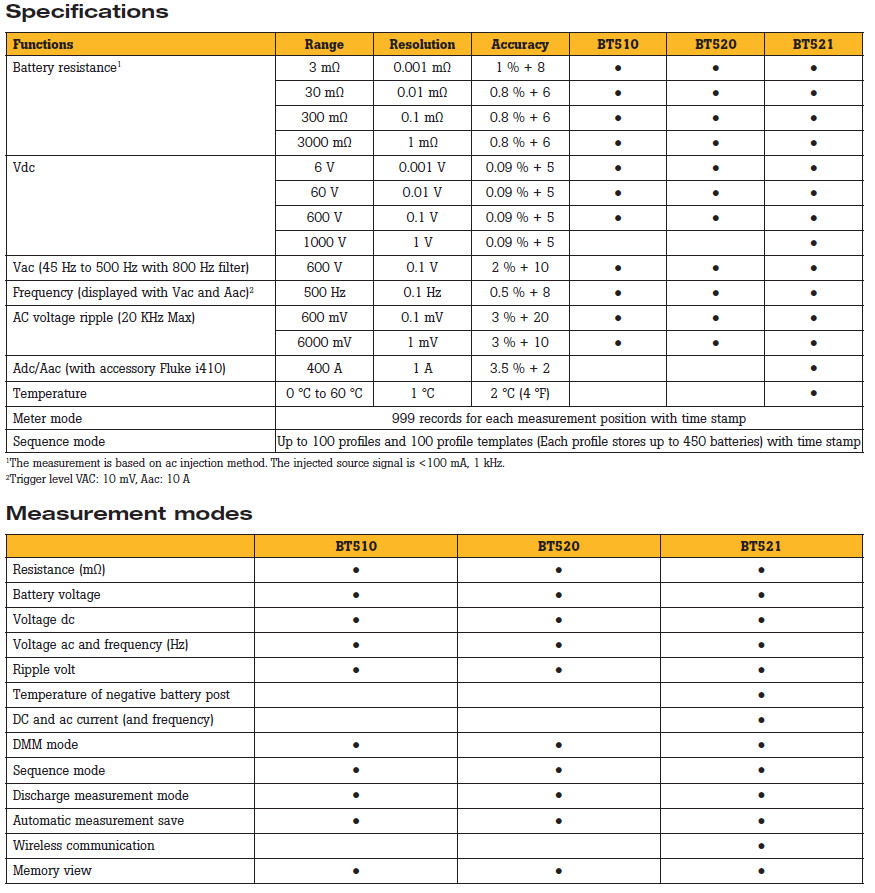

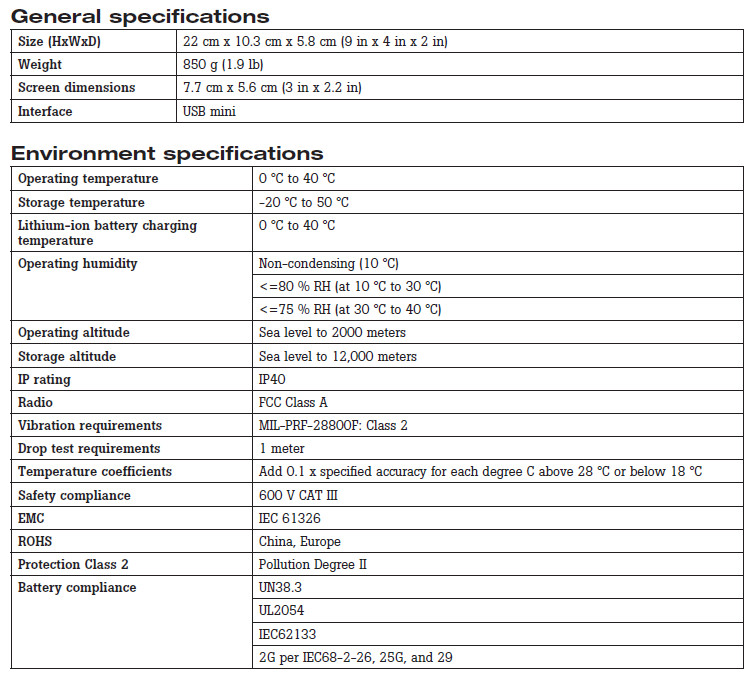

Technical Specifications
|
The Fluke BT 520 is a test tool used for maintenance, troubleshooting and performance testing on batteries used in critical battery back-up applications.
|
The Fluke BT 521 is a test tool used for maintenance, troubleshooting and performance testing on batteries used in critical battery back-up applications.
|
