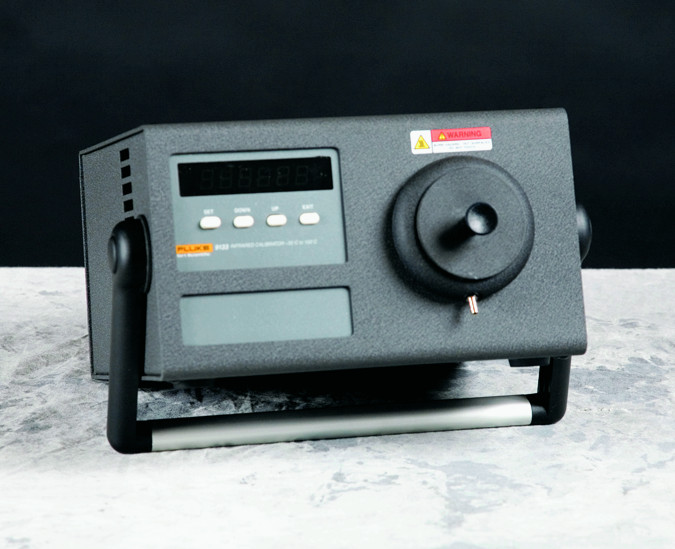

Fluke 9132 Portable Infrared Calibrator
|
Item Number: 9132
Manufacturer: Fluke
Part Number: 9132
* Whole number only
|
|
Fluke 9132 Portable Infrared Calibrator
Precision when you need it for infrared temperature calibration
- Certify IR pyrometers from –30 °C to 500 °C (–22 °F to 932 °F)
- Large 57 mm (2.25 in) blackbody target
- RTD reference well for contact temperature measurement
- Small, compact design
Whether you’re using in-line or handheld infrared pyrometers, you need good calibration standards to verify their accuracy. Our portable IR calibrators provide stable blackbody targets for calibrating noncontact IR thermometers from –30°C to 500°C.
These units feature a temperature controlled measurement surface with a diameter of 2.25" (57 mm). The target temperature can be controlled in set-point increments of 0.1° from –30°C to 500°C and a well is located directly behind the blackbody surface for contact calibration.
Features
For IR calibrations above normal ambient, the 9132 provides a stable measurement surface up to 500°C (932°F). Short heating and cooling times mean you won’t have to wait long to get your work done.
Technical Specificiations
| Specifications |
Temperature Range
|
50 °C to 500 °C
(122°F to 932°F) |
Accuracy
|
± 0.5 °C at 100 °C
(± 0.9°F at 212°F)
± 0.8 °C at 500 °C
(± 1.4 °F at 932 °F) |
Stability
|
± 0.1°C at 100°C
(± 0.18°F at 212°F)
± 0.3°C at 500°C
(± 0.54°F at 932°F) |
| Target Size |
57 mm (2.25 in) |
| Target Emissivity |
0.95 (± 0.02 from 8 to 14 mm) |
| Resolution |
0.1 ° |
| Heating Time |
30 minutes (50 °C to 500 °C) |
| Cooling Time |
30 minutes (500 °C to 100 °C) |
| Computer Interface |
RS-232 I/O included with 9930 Interface-it software |
Power
|
115 V ac (± 10 %), 3 A or
230 V ac (± 10 %), 1.5 A,
switchable, 50/60 Hz, 340 W |
Size (HxWxD)
|
102 x 152 x 178 mm
(4 x 6 x 7 in ) |
| Weight |
1.8 kg (4 lb) |
NIST-Traceable
Contact Calibration |
Data at 50°C, 100°C, 200°C, 250°C, 300°C, 400°C, and 500°C |
|
Fluke 9133 reaches –30°C (22°F) in normal ambient conditions. With a conveniently located dry gas fitting on the front bezel, ice build up on the target can be avoided.
| |
