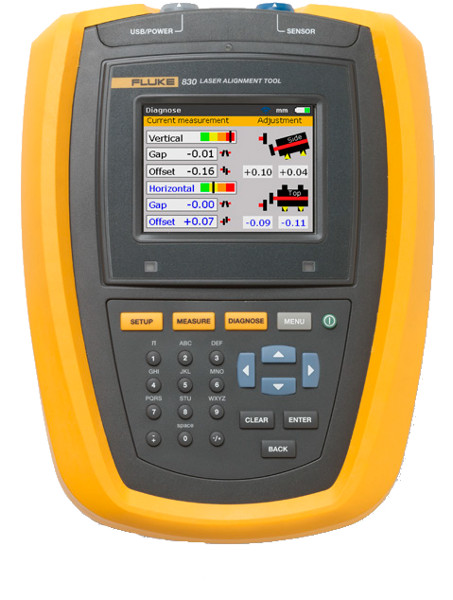

Fluke 830 Laser Alignment Tool
A big concern for the plant maintenance technician today is the concern for proper machine shaft alignment. The old methods of using rulers and dial indicators to ensure your rotating machinery is properly aligned is cumbersome and unreliable. The Fluke 830 was designed to save thousand of dollars per year in replacement bearing and machine costs, labor hours of unscheduled repair time, and devastating forced outages, including taking years off your machine’s life cycle.
The Fluke 830 Laser Shaft Alignment sets-up quickly and easily, while giving you quick, accurate and reliable advice that will keep your machines running for many years. Field data is important in shaft alignment and the Fluke 830 provides you with the necessary answers to install and connect your machinery properly.
The Fluke 830 figures out the complicated alignment calculations for you, meaning you’ll be able to align your machine and get your plant up and running quickly. You can also forget about calibrating those rulers and dial indicators, they can stay in the draw unsed. The 830 has an easy to understand, intuiative user interfacewhich is easy to understand. You don't have to have a degree in mechnical engineering to understand the with the Fluke 830's “All-in-One” result screen. THe display show you the coupling results and the feet corrections in both planes, in real terms, so you can understand the data and make quick alginment adjustments.
Features
- Single laser measurement system
- Easy to read and understand user interface
- Compass mode
- Dynamic machine tolerance check
- Unique extend mode
- Machine Data protection
- Clock mode for vertical & flanged shafts
- Machine Flip to flip image of machine on screen for alignment jobs
with acess issues
- Resume mode to pickup where you left off at another time

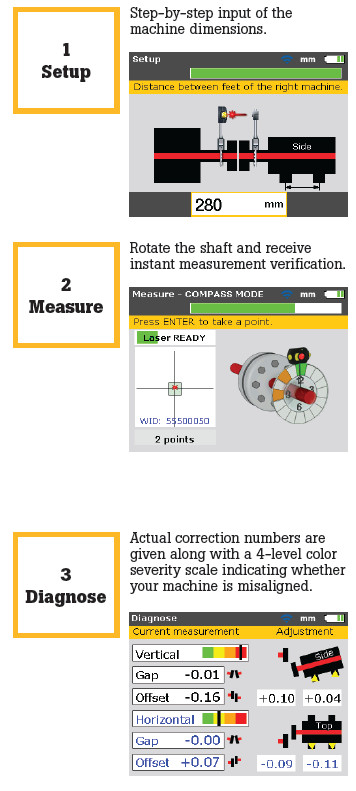

Common Shaft Alignment Steps:

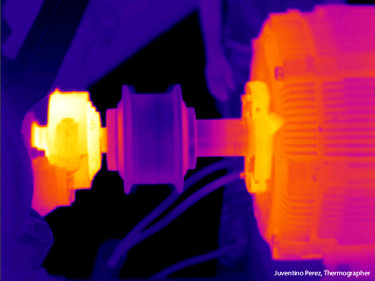

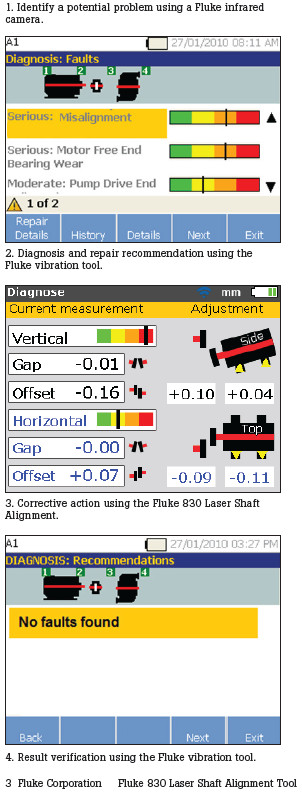

Fluke predictive maintenance tools
Technical Specifications
| Computer |
| CPU |
Intel XScale PXA270 running at 312 MHz |
| Memory |
64 MB RAM, 64 MB flash |
| Display |
Type: TFT, transmissive (sunlight-readable), 65,535 colors, backlit LED |
| Integrated light sensor for automated adjustment of the brightness to the display according to the lighting conditions which extends battery life |
Resolution: 320 x 240 pixel;
Dimensions: 89 mm (3.5 in) diagonal |
| Keyboard elements: Setup, measure, diagnose, menu, clear, enter, back keys, navigation cursor cross, alphanumeric keyboard and on/off button |
| LED indicators |
Multicolor LED for laser status and alignment condition |
| Multicolor LED for battery status |
| Power supply |
Integrated Lithium-ion polymer rechargeable battery: 7.4 V/ 2.6 Ah (for optional computer) with typical operating time of 17 hours (based upon an operating cycle of 33 % measurement, 33 % computation and 33 % 'sleep' mode) |
| External interface |
USB host and USB device (slave) |
| Integrated wireless communication, Class 1, transmitting power 100 mW |
| RS232 (serial) for sensor |
| AC adapter/charger socket |
| Environmental protection |
IP 65 (dustproof and water spray resistant), shockproof |
| Relative humidity 10 % to 90 % |
| Operating temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
| Storage temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Dimensions |
220 mm x 165 mm x 45 mm (8.7 in x 6.5 in x 1.8 in) |
| Weight |
742 g (1.64 lb) |
| Sensor |
| Measurement principle |
Coaxial, reflected laser beam |
| Environmental protection |
IP 67 (submersible, dustproof) |
| Ambient light protection |
Yes |
| Storage temperature |
-20 °C to 80 °C (-4 °F to 176 °F) |
| Operating temperature |
0 °C to 55 °C (32 °F to 131 °F) |
| Dimensions |
107 mm x 70 mm x 49 mm (4 1/4 in x 2 3/4 in x 2 in) |
| Weight |
177 g (6 1/2 oz) |
| Laser |
Type: Ga-Al-As semiconductor laser |
| Wavelength (typical) 675 nm (red, visible) |
| Safety class: Class 2, FDA 21 CFR 1000 and 1040 |
| Beam power: < 1 mW |
| Safety precautions: Do not look into laser beam |
| Detector |
Measurement area: unlimited, dynamically extendible
(U.S. Patent 6,040,903) |
| Resolution: 1 μm; Accuracy (avg): > 98 % |
| Inclinometer |
Measurement range: 0° to 360°; Resolution: < 1° |
| Prism |
| Type |
90° roof prism; Accuracy (avg): > 99 % |
| Environmental protection |
IP 67 (submersible, dustproof) |
| Operating temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Storage temperature |
-20 °C to 80 °C (-4 °F to 176 °F) |
| Dimensions |
100 mm x 41 mm x 35 mm (4 in x 1 5/8 in x 1 3/8 in) |
| Weight |
65 g (2 1/2 oz.) |
| Carrying case |
| Dimensions |
565 mm x 343 mm x 127 mm (22 1/4 in x 13 1/2 in x 5 in) |
| Weight, including all standard parts |
5.6 kg (12.3 lb) |
Includes
- Fluke 830 Laser Alignment System
- Laser sensor
- Laser prism
- Two Chain-type mounting bracket with 150 mm support posts
- Four 300 mm support post
- Micro fiber cleaning cloth
- Sensor cable
- PC cable
- USB drive with cable
- Tape measure
- Wireless Bluetooth® module
- AC Power adapter
- Instructions and hard carrying case
|
