Fluke 80PK-10 Large Pipe Clamp Temperature Probe
Our Price: $233.95
Sale Price: $210.56
Item Number: 80PK-10
Manufacturer: Fluke
Part Number: 80PK-10
* Whole number only
|
|

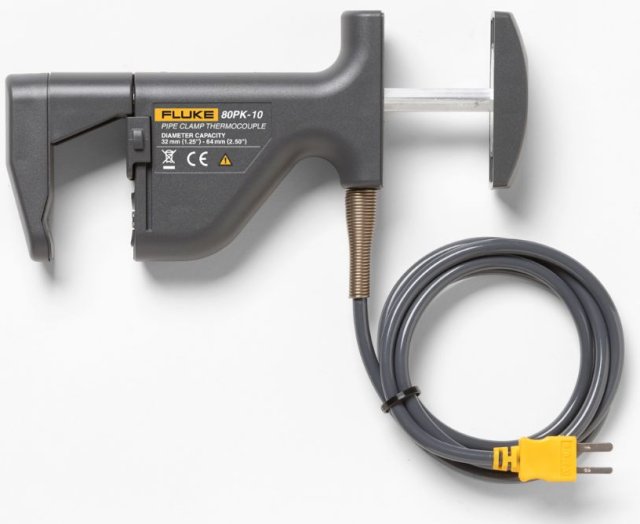

Fluke 80PK-10 Pipe Clamp Temperature Probe
The Fluke 80PK-10 surface temperature sensor is a larger Type K probe that securely clamps to larger pipes for fast temperature and superheat measurement applications. The Type K mini connector is compatilble with any digital thermometer that accepts a type K mini connector. Configure your purchase with a dual input thermometer and two 80PK-10 sensors for a complete measurement solution.
Fluke 80PK-10 Features:
-
Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces
-
For pipe diameters: 1.25 to 2.5 inches (32 mm to 64 mm )
-
Measurement range: -20 °F to 300 °F (29 °C to149 °C)
-
Measurements are repeatable to 1 °F (0.56 °C)
-
Very Durable ribbon sensor
-
39 inch (1 m) lead length with type K mini-connector termination
-
Full Fluke one (1) year warranty
Fluke 80PK-10 Specifications:
|
Measurement Range:
|
-29 °C to 149 °C (-20°F to 300 °F)
|
|
Accuracy:
|
±1.9 °C (±3.4 °F). Surface measurement accuracy of ±1.9 °C
includes ±1.1 °C variation in alloy plus probe contact and shunting uncertainty of ±0.8 °C.
|
|
Repeatability:
|
±0.56 °C (±1 °F)
|
|
Output:
|
@ 25 °C (77 °F) = 1.00 mV (Reference junction at 0 °C)
|
|
Seebeck Coefficient:
|
@ 25 °C (77 °C) = 40.50 uV/ °C
|
|
Measurement Time (Time Constant):
|
0.5 seconds (5 time constants = 1 complete step change, i.e. 2.5 seconds)
|
|
Maximum Voltage Rating:
|
24 V ac rms, or 60 V dc
|
|
Sensor Material:
|
Chromel-Alumel
|
|
Cable Length:
|
40 inches (1 meter)
|
|
Cable Insulation:
|
Material: PVC
|
|
Maximum Temperature:
|
105 °C (220 °F)
|
|
Minimum Temperature:
|
-29 °C (20 °F)
|
|
Conductor:
|
K Type AWG # 24 stranded
|
|
Probe Body
|
PBT
|
|
Maximum Temperature:
|
149 °C (300 °F)
|
|
Minimum Temperature:
|
-29 °C (20 °F)
|
|
Connector:
|
Mini-thermocouple connector with 7.925 mm (0.312 in) pin spacing
|
|
Media Limitations:
|
Must be compatable with chromel, alumel, and PBT
|
|
