Fluke 77 IV Series Digital Multimeter
Our Price: $305.95
Sale Price: $275.36
Item Number: FLUKE-77-4
Manufacturer: Fluke
Part Number: FLUKE-77-4
* Whole number only
|
|

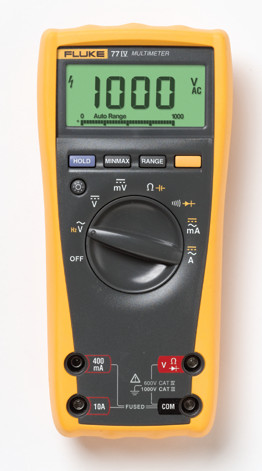

Fluke 77 Series 4 Digital Multimeter
|
|
|
Versatile meters for field service or bench repair.
The NEW Fluke 77-IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.
It measures:
- Wide 1000 V measurement range
- Average responding AC measurements
- 0.3% accuracy
- 10 Amps continuous (20A for 30 seconds)
- Frequency and capacitance
- Resistance and continuity
|
|
|
|
Features of Fluke 77-4:
- Bright Large LCD display
- Backlight for work in dark areas
- Min/Max feature to record signal fluctuations
- Ergonomic over-molded housing with integrated probe holders
- Free your hands with the optional TPAK magnetic hanger
- Auto and Manual ranging
- Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards
|
The 77-IV replaces the old Fluke 77. Move up to the superior Fluke 77-4 with superior utility and
meeting the modern safety standards of today.
| Specifications - Fluke 77 Series IV DMM |
| Voltage DC |
| Range: |
6.000V - 1000V |
| Best Accuracy: |
+/- (0.3% + 1) |
| Best Resolution: |
0.1 mV |
|
| Voltage AC |
| Range: |
600.0 mV-1000V |
| Best Accuracy: |
+/- (2.0% + 2) |
| Best Resolution: |
1.0 mV |
|
| Amps AC |
| Range: |
60.00 mA – 10A |
| Best Accuracy: |
+/- (1.5% + 2) |
| Best Resolution: |
0.01mA |
|
| Amps DC |
| Range: |
60.00 mA – 10A |
| Best Accuracy: |
+/- (2.5% + 2) |
| Best Resolution: |
0.01 mA |
|
| Resistance |
| Range: |
600.0 Ω - 50 MΩ |
| Best Accuracy: |
+/- (0.5% + 1) |
| Best Resolution: |
0.1Ω |
|
| Capacitance |
| Range: |
1nF- 9,999 µF |
| Best Accuracy: |
+/- (1.2% + 2) |
| Best Resolution: |
1 nF |
|
| Frequency |
| Range: |
99.99Hz- 99.99kHz |
| Best Accuracy: |
+/- (0.1% + 1) |
| Best Resolution: |
0.01Hz |
|
| Safety |
|
ANSI/ISA S82.02.01, CSA C22.2-1010.1,
IEC 61010 to 1000 V Measurement Category III,
600 V Measurement Category IV |
|
| Certifications |
|
CSA, TÜV (EN61010), UL, Π, ; (N10140),VDE |
|
| General Specifications |
| Maximum voltage between any terminal and earth ground |
|
| Surge protection |
|
| Fuse for mA inputs |
|
| Fuse for A inputs |
|
| Display |
| Digital: |
6000 counts, updates 4/sec |
| Bar Graph: |
33 segments; Updates 32/sec |
| Frequency: |
10,000 counts |
| Capacitance: |
1,000 counts |
|
| Altitude |
| Operating: |
2,000 meters |
| Storage: |
12,000 meters |
|
| Temperature |
| Operating: |
-10 °C to +50 °C |
| Storage: |
-40 °C to +60 °C |
|
| Temperature Coefficient |
|
0.1 X (specified accuracy / °C
(< 18 °C or > 28 °C) |
|
| Electromagnetic Compatibility (EN 61326-1:1997) |
|
In an RF field of 3 V/M,
accuracy = specified accuracy except in temperature:
specified accuracy ± 5 °C (9 °F)
|
|
| Relative Humidity (Maximum Non-condensing) |
|
90 % to 35 °C |
|
75 % to 40 °C |
|
45 % to 50 °C |
|
| Battery Life |
|
400 Hours Typical (Alkaline) |
|
| Size |
| Height: |
4.3 cm |
| Width: |
9 cm |
| Length: |
18.5 cm |
|
| Weight |
|
|
