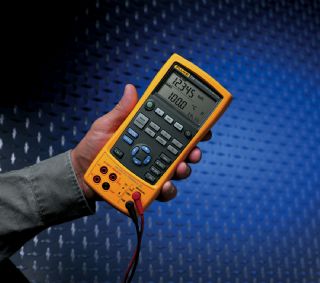

Fluke 724 Multifunction Temperature Calibrator
|
Item Number: FLUKE-724
Manufacturer: Fluke
Part Number: FLUKE-724
* Whole number only
|
|
Fluke 724 Multifunction Temperature Calibrator
Built for the masters of temperature.
The Fluke 724: everything you need to calibrate temperature.
Now you can carry one tool to expertly test all the temperature sensors and transmitters in your plant.
The Fluke 724 is the master’s answer to temperature calibration. The Fluke 724 can measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms.
It even handles high-speed pulsed RTD circuits and provides loop power. The dual line measure/source display lets you source temperature and view loop current at the same time. And with its simple, “no menus” controls, the Fluke 724 is easy to operate, too.
The Fluke 724 Temperature Calibrator is a powerful yet easy-to-use calibrator. Use the measure and source functions to test and calibrate almost any temperature instrument.
Features:
- Easy to read dual display lets you view input and output simultaneously
- Measure RTDs, thermocouples, ohms, and volts to test sensors/transmitters
- Source/simulate thermocouples, RTDs, volts, and ohms to calibrate transmitters
- Perform fast linearity tests with 25% and 100% steps
- Execute remote tests with auto step and auto ramp
- Power transmitters during test using loop power supply with simultaneous mA measurement
- Store frequently-used test setups for later use
- Compact, streamlined shape makes it easy to carry
- Rugged, reliable design stands up to field use
- Backlight lets you work in poor light
- Large battery capacity of four AA cells
- Battery door for easy changes
Technical Specifications:
| Summary Specifications (18 C to 28 C 1 year)* |
| Voltage (max load, 1 mA) |
0 to 100 mV:
Resolution: 0.01 mV
Accuracy:.02% Rdg + 2 LSD
0 to 10V (source):
Resolution: 0.001V
Accuracy:.02% Rdg + 2 LSD
0 to 30V (measure):
Resolution: 0.001V
Accuracy:.02% Rdg + 2 LSD
|
| mA (max load, 1000W) |
0 to 24 mA:
Resolution:0.001 mA
Accuracy: .02% Rdg + 2 LSD
|
| mV (TC terminals) |
-10.00 mV to +75.00 mV:
Resolution: .01 mV
Accuracy: .025% Rdg + 1 LSD
|
| Resistance |
0 to 3200 Ohm (measure):
Resolution: 0.01W to 0.1W
Accuracy: 0.10W to 1.0W
15 to 3200 Ohm (source):
Resolution: 0.01 Ohm to 0.1 Ohm
Accuracy: 0.10 Ohm to 1.0 Ohm
|
| Loop Supply |
24V dc:
Resolution: N/A
Accuracy: 10% |
* Temperature coefficient, -10 C to 18 C, 28 C to 55 C,
+/-0.005% of range per C.
| Thermocouple Accuracy Specifications (measure or source)* |
| J |
-200 to 0 C:
Accuracy: 1.0 C
0 to 1200 C:
Accuracy: 0.7 C
|
| K |
-200 to 0 C:
Accuracy: 1.2 C
0 to 1370 C:
Accuracy: 0.8 C
|
| T |
-200 to 0 C:
Accuracy: 1.0 C
0 to 400 C:
Accuracy: 0.8 C
|
| E |
-200 to 0 C:
Accuracy: 0.9 C
0 to 950 C:
Accuracy: 0.7 C
|
| R |
-20 to 0 C:
Accuracy: 2.5 C
0 to 500 C:
Accuracy: 1.8 C
500 to 1750 C:
Accuracy: 1.4 C
|
| S |
-20 to 0 C:
Accuracy: 2.5 C
0 to 500 C:
Accuracy: 1.8 C
500 to 1750 C:
Accuracy: 1.5 C
|
| B |
600 to 800 C:
Accuracy: 2.2 C
800 to 1000 C:
Accuracy: 1.8 C
1000 to 1800 C:
Accuracy: 1.4 C
|
| L |
-200 to 0 C:
Accuracy: 0.85 C
0 to 900 C:
Accuracy:0.7 C
|
| U |
-200 to 0 C:
Accuracy: 1.1 C
0 to 400 C:
Accuracy: 0.75 C
|
| N |
-200 to 0 C:
Accuracy: 1.5 C
0 to 1300 C:
Accuracy: 0.9 C
|
* (Accuracy specifications include 0.2 C cold junction uncertainty)
| Thermocouple Resolution |
| J, K, T, E, L, N, U |
0.1 C, 0.1 F |
| B, R, S |
1 C, 1 F |
| RTD Ranges and Accuracy Specifications* |
Ni 120
|
-80 C to 260 C:
Measure: 0.2 C
Source: 0.2 C
|
| Pt 100 - 385 |
-200 C to 800 C:
Measure: 0.33 C
Source: 0.33 C
|
| Pt 100 - 3926 |
-200 C to 630 C:
Measure: 0.3 C
Source: 0.3 C
|
Pt 100 - 3916
(JIS) |
-200 C to 630 C:
Measure: 0.3 C
Source: 0.3 C
|
| Pt 200 - 385 |
-200 C to 250 C:
Measure: 0.2 C
Source: 0.2 C
250 C to 630 C:
Measure: 0.8 C
Accuracy: 0.8 C
|
| Pt 500 - 385 |
-200 C to 500 C:
Measure: 0.3 C
Source: 0.3 C
500 C to 630 C:
Measure: 0.4 C
Accuracy: 0.4 C
|
| Pt 1000-385 |
-200 C to 100 C
Measure: 0.2 C
Source: 0.2 C
100 C to 630 C
Measure: 0.3 C
Source: 0.2 C
|
* Note: Measure (4 wire)
| RTD Resolution |
| RTD |
0.1 C, 0.1 F |
| General Specifications |
| Maximum voltage |
30V |
| Storage Temperature |
-20 C to 71 C |
| Operating Temperature |
-10 C to 55 C |
| Relative Humidity |
90% (10 C to 30 C); 75% (30 C to 40 C);
45% (40 C to 50 C); 35% (50 C to 55 C) |
| Vibration |
Random, 2g, 5-500 Hz |
| Safety |
CSA C22.2 No. 1010.1:1992 |
| EMC |
EN50082-1:1992 and EN55022:1994 Class B |
| Size |
96 x 200 x 47 mm (3.8 x 7.9 x 1.9 inches) |
| Weight |
650g (23oz) |
| Battery |
Four AA alkaline batteries. Battery life: 25 hours typical |
| Warranty |
Three years |
|
