Fluke 705 Loop Calibrator
Our Price: $779.95
Sale Price: $701.96
Item Number: FLUKE-705
Manufacturer: Fluke
Part Number: FLUKE-705
* Whole number only
|
|

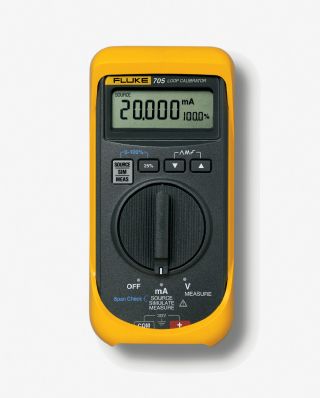

Fluke 705 Loop Calibrator
For a powerful loop calibrator at a very affordable Price, choose the new Fluke 705 Loop Calibrator. This feature-rich
solution to loop calibration, Maintenance and repair offers:
Features:
- Simultaneous mA and % readout for quick, easy interpretation of readings.
- mA accuracy of 0.02%
- Push button 25% steps for fast, easy linearity checks. Save time over traditional knob type controls.
- "Span Check" for fast confirmation of zero and span.
- Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
- 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
- Single 9V battery that is easily changed. 0 - 20 mA or 4 - 20 mA default start up modes.
Specifications:
Summary Specifications
(18°C to 28°C for one year) |
| Voltage Measure |
Range: 0 to 28V
Resolution: 0.001V
Accuracy: .025% Rdg + 1 LSD |
| mA Measure |
Range: 0 to 24
Resolution: 0.001 mA
Accuracy: .02% Rdg + 2 LSD |
| MA source |
Range: 0 to 24 mA
Resolution: 0.001 mA
Accuracy: .02% Rdg + 2 LSD
Notes: Max load, 1000 Ohms, Max applied
voltage for simulation, 30V |
| Loop Supply |
Range: 24 Vdc
Accuracy: 10% |
| Temperature coefficient |
-10C to 18C, 28C to 55C,
+/-.005% of range per C |
| General Specifications |
| Maximum voltage |
30V |
| Storage temperature |
-40C to 60C |
| Operating temperature |
-10C to 55C |
| Relative humidity |
0 to 90% (0C to 35C);
0 to 70% (35C to 55C) |
| Shock and vibration |
per MIL-T-28800 for a Class 2 Instrument |
| Safety |
CSA C22.2 No. 1010.1:1992 |
| EMC |
EN50082-1:1992 and EN55022:1994 Class B |
| Size/weight |
152 mm L x 70 mm W x 41 mm D
(6.0 in L x 2.8 in. W x 1.6 in D) 340g (12oz) |
| Battery |
One 9V battery |
| Warranty |
Three years |
|
