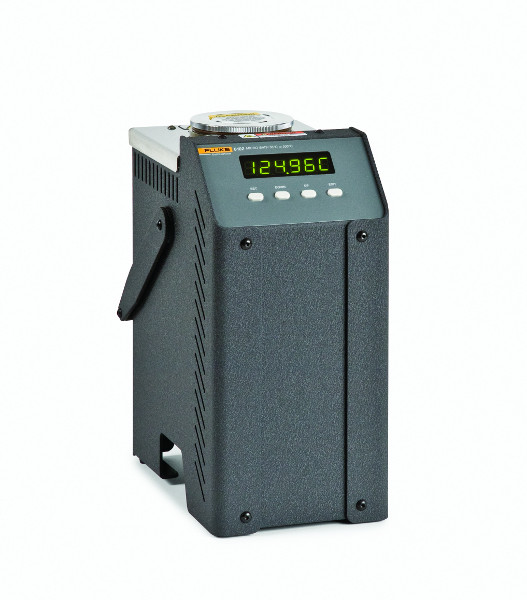

Fluke 6102 Micro Bath Temperature Calibrator (35 to 200 C)
|
Item Number: 6102-156
Manufacturer: Fluke
Part Number: 6102-156
* Whole number only
|
|
Fluke Scientific Model 6102 Micro Temperature Calibration Bath
Formally the Hart Scientific Model 6102
|
Micro-Baths Models 6102 7102 and 7103
|
|
World's smallest portable calibration baths
|
|
Calibrates sensors of any size or shape
|
|
Stability to +/-0.015 C
|
|
Ranges from -30 C to 200 C
|
|
Specifications
|
6102
|
7102
|
7103
|
|
Range
|
35 C to 200 C
(95 F to 392 F)
|
-5 C to 125 C
(23 F to 257 F)
|
-30 C to 125 C
(-22 F to 257 F)
|
|
Accuracy
|
+/-0.25 C
|
|
Stability
|
+/-0.02 C at 100 C
+/-0.03 C at 200 C
|
+/-0.015 C at
-5 C
+/-0.03 C at 121 C
|
+/-0.03 C at
-25 C
+/-0.05 C at
125 C
|
|
Uniformity
|
+/-0.02 C
|
|
Resolution
|
0.01 C/F
|
|
Operating Temperature
|
5 C to 45 C
|
|
Heating Time
|
25 C to 200 C:
40 minutes
|
25 C to 100 C:
30 minutes
|
25 C to 100 C:
35 minutes
|
|
Cooling Time
|
200 C to 100 C:
35 minutes
|
25 C to 0 C:
30 minutes
|
25 C to -20 C:
45 minutes
|
|
Well Size
|
64 mm dia. x 140 mm deep (2.5 x 5.5 in) (working area is 48 mm [1.9 in] in diameter)
|
|
Size
|
5.5" W x 10.38" H x 8" D
(14 x 26 x 20 cm)
|
7.2" W x 12" H x 9.5" D
(18 x 31 x 24 cm)
|
9" W x 13.2" H x 10.5" D
(23 x 34 x 26 cm)
|
|
Weight
|
10 lb. (4.5 kg) with fluid
|
15 lb. (6.8 kg) with fluid
|
22 lb. (9.8 kg) with fluid
|
|
Power
|
115 VAC, 270 W
|
115 VAC, 200 W
|
94-234 VAC, 400 W
|
|
NIST-Traceable Calibration
|
Data at 50 C,
100 C, 150 C, 200 C
|
Data at -5 C, 25 C,
55 , 90 C, 121 C
|
Data at -25 C, 0 C, 25 C, 50 C, 75 C, 100 C, 125 C
|
Fluke's Micro-Baths are the world's first completely portable baths built specifically for temperature calibration work. And now we've added a third model, the 7103, for calibrations at temperatures as low as -30 C.
Micro-Baths can be used anywhere for any type of sensor. The Model 6102 weighs less than 10 pounds, with the fluid. It's lighter and smaller than most dry-wells, has a spill-proof lid, and is easier to carry than your lunch. You can take it where you need to go without carts or excessive effort. Micro-Baths can even be transported with the fluid in them.
Wherever you go with your Micro-Bath, you can count on its performance. Each model is stable to +/-0.03 C or better, depending on the fluid you use. Uniformity is +/-0.02 C or better for low uncertainties using a reference thermometer. Display accuracy has been improved to +/-0.25 C for quick calibrations without a reference thermometer. In short, you get the stability and precision of a liquid bath in a dry-well-sized package. Don't be fooled by competitors who place a can of oil inside a dry-well and call it a bath. Fluke Micro-Baths are maximized for true fluid-bath performance.
With a 1.9-inch-diameter, 5.5-inch-deep tank, a Micro-Bath can calibrate any type of sensor including short, square, or odd-shaped sensors. The problems of fit and immersion are virtually eliminated by using a fluid medium rather than a dry-block calibrator. Micro-Baths are perfect for liquid-in-glass and bimetal thermometers.
The 6102 has a temperature range from 35 C to 200 C, the 7102 covers -5 C to 125 C, and the 7103 extends from -30 C to 125 C. Stability, uniformity, and accuracy specifications cover the entire range for each bath, not just the best temperature.
All Micro-Baths have RS-232 ports, come with our Interface-it software, and can be used with Fluke's MET/TEMP II software. Also included are contacts to calibrate a thermal switch, eight set-point memory storage, ramp-rate adjust, and over-temperature safety cutout.
You may have noticed we haven't touted our CFC-free refrigeration. Yes, cold Micro-Baths are CFC-free, and also compressor-free. That's right - no heavy, noisy compressor to lug around. We achieve our temperature range and stability with only one moving part. This means more durability and less weight. |
