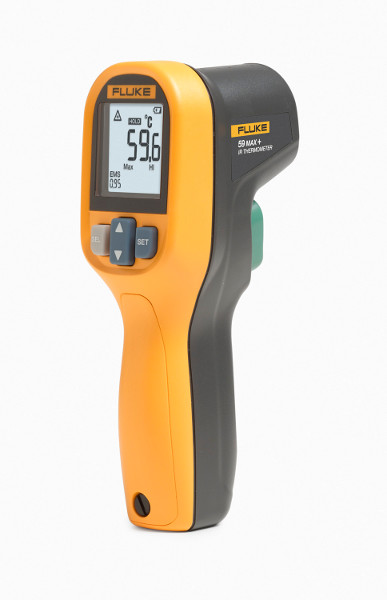

Fluke 59 MAX+ Infrared Thermometer
|
Item Number: FLUKE-59 MAX+
Manufacturer: Fluke
Part Number: FLUKE-59 MAX+
* Whole number only
|
|
Fluke 59 MAX+ Infrared Thermometer
With 65 years of expertise as the leader in the test tools industry, Fluke has built the 59 MAX+ Infrared Thermometer with the precision you need to do your job accurately and within your budget. Designed to withstand a 1 meter drop, you can count on this lightweight, compact infrared thermometer to work when you need it.
Features
- Precise laser technology for more accurate and repeatable measurements
- Large, easy-to-read backlit LCD display for easy viewing
- Small and lightweight design fits easily fits into your tool box
- 10:1 distance to spot ratio
- IP40 rated for extra protection
- Displays the minimum, maximum or average temperature, or the difference between two measurements
- Hi and Lo alarms for rapid display of measurements outside the limits
- Powered by one (1) AA battery
- One year warranty
Technical Specifications
| Specifications |
| Temperature Range |
-30 °C to 500 °C (-22 °F to 932 °F) |
| Accuracy (Calibration geometry with ambient temperature 23 °C ±2 °C) |
≥ 0 °C: |
±1.5 °C or ±1.5 % of reading, whichever is greater |
| ≥-10 °C to <0 °C: |
±2.0 °C |
| < -10 °C: |
±3.0 °C |
| ≥ 32 °F: |
±3.0 °F or ±1.5 % of reading, whichever is greater |
| ≥ 14 °F to <32 °F: |
±4.0 °F |
| < 14 °F: |
±6.0 °F |
| Response Time (95 %) |
<500 ms (95 % of reading) |
| Spectral Response |
8 mm to 14 mm |
| Emissivity |
0.10 to 1.00 |
| Distance to Spot Ratio |
10:1 (calculated at 90 % energy) |
| Display Resolution |
0.1 °C (0.2 °F) |
| Repeatability (% of reading) |
±0.8 % of reading or ±1.0 °C
(±2.0 °F), whichever is greater |
| Power |
1 AA IEC LR06 Battery |
| Battery Life |
12 hours with laser and backlight on |
| Weight |
220 g (7.76 oz) |
| Size |
(156 x 80 x 50) mm (6.14 x 3.15 x 2) inches |
| Operating Temperature |
0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature |
-20 °C to +60 °C (-4 °F to 140 °F), (without battery) |
| Operating Humidity |
10 % to 90 % RH non-condensing @ 30 °C (86 °F) |
| Operating Altitude |
2000 meters above mean sea level |
| Storage Altitude |
12,000 meters above mean sea level |
| Drop Test |
1 m |
| Ingress Protection Rating |
IP40 per IEC 60529 |
| Vibration and Shock |
IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
| Compliance |
EN/IEC 61010-1 |
| Laser Safety |
FDA and EN 60825-1 Class II |
| Electromagnetic Compatibility |
61326-1 EN 61326-2 |
|
Fluke 59 MAX temperature ranges from -30 °C to 350 °C (-22 °F to 662 °F).
| |
