Fluke-289/IMSK Industrial Multimeter Service Combo Kit
|
Item Number: Fluke-289/IMSK
Manufacturer: Fluke
Part Number: Fluke-289/IMSK
|
|

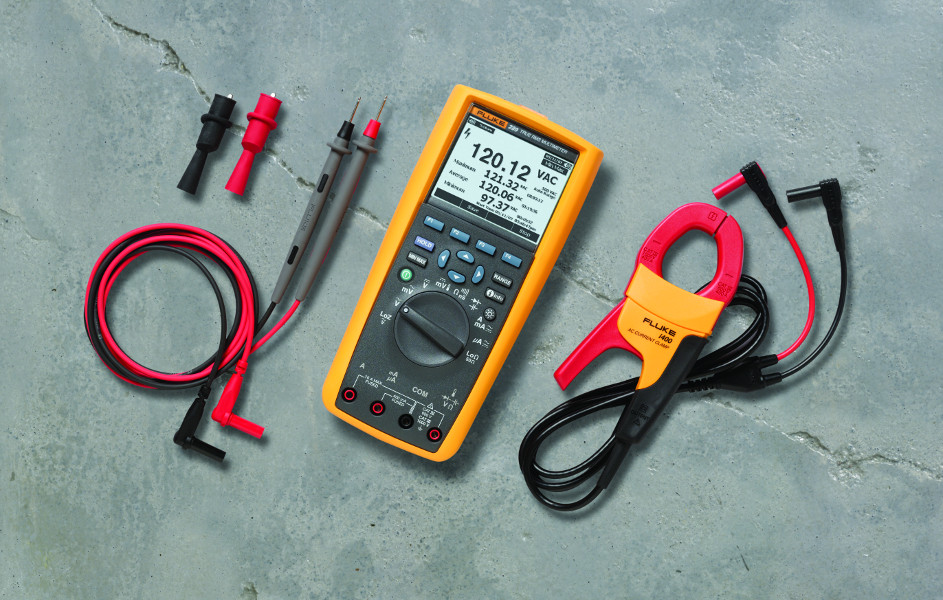

Fluke-289/IMSK Industrial Multimeter Service Combo Kit
Fluke has combined its advanced data logging Multimeter with Trendcapture with the i400 AC Current Clamp. Together they provide the ability to troubleshoot most industrial problems. Additionally, the Fluke-289/IMSK Industrial Multimeter Service Combo Kit represents a significant savings over buying the items separately.
Features
-
Fluke-289V Advanced data logging Multimeter
- Trendcapture: Record, graph and review measurements in the field
- Large 50,000 count, ¼ VGA display with white backlight
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- LoZ Volts. Low impedance voltage function prevents false readings due to "ghost" voltage
- 50 ohm range – useful for measuring and comparing differences in motor winding resistance
Fluke-i400 AC 400A Current Clamp
- Companion to your DMM to measure up to 400 A AC
- 1mA/Amp output guarantees easy reading on you meter
- Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
- Specially designed to offer maximum utility in a very compact shape
Technical Specifications
Fluke 289 Digital Multimeter
| Specifications |
| Voltage DC |
Accuracy |
0.025 % |
| Range / Resolution |
50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V |
| Voltage AC |
Accuracy |
0.4 %(true-rms) |
| Range / Resolution |
50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V |
| Current DC |
Accuracy |
0.06 % |
| Range / Resolution |
500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
| Current AC |
Accuracy |
0.6%(true-rms) |
| Range / Resolution |
500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
Temperature
(excluding probe) |
Accuracy |
1.0 % |
| Range / Resolution |
-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) |
| Resistance |
Accuracy |
0.05 % |
| Range / Resolution |
500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ |
| Capacitance |
Accuracy |
1.0 % |
| Range / Resolution |
1.000 nF, 10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF |
| Frequency |
Accuracy |
0.005% + 5 |
| Range / Resolution |
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz |
Additional
functions/features
|
Multiple on-screen displays |
Yes |
| True-rms AC bandwidth |
100 kHz |
| DBV/dBm |
Yes |
| Conductance |
50.00nS |
| Continuity beeper |
Yes |
| Battery/Fuse access |
Battery / Fuse |
| Peak |
250 μS |
| Elapse time clock |
Yes |
| Time of day clock |
Yes |
| Min-Max-Avg |
Yes |
| Duty Cycle |
0.01 % to 99.99 % |
| Pulse Width |
0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms |
| Hold |
Yes |
| Isolated Optical Interface |
Yes |
| Auto/Touch Hold |
Yes |
| Reading memory |
Yes |
| Log to PC |
Yes |
| Interval/Event Logging |
Yes |
| Logging Memory |
Up to 10,000 readings |
| Environmental Specifications |
| Operating Temperature |
-20 °C to +55 °C |
| Storage Temperature |
-40 °C to +60 °C |
| Relative Humidity |
0% to 90% (0 °C - 37 °C)
0% to 65% (37 °C - 45 °C),
0% to 45% (45 °C - 55 °C |
| Electromagnetic Compatability |
EMC EN6 1326-1 |
| Vibration |
Random vibration per MIL-PRF-28800f Class 2 |
| Shock |
1 meter drop per IEC/EN 61010-1 2nd edition |
| Safety Specifications |
| Overvoltage category |
CAT III 1000 V / CAT IV 600 V safety rated |
| Agency Approvals |
CSA, UL, TÜV, CE |
| Mechanical and General Specifications |
| Maximum voltage between any terminal and earth ground |
1000V |
| Size (HxWxL) |
22.2 cm x 10.2 cm x 6 cm
(8.75 in x 4.03 in x 2.38 in) |
| Weight |
870.9 g (28 oz) |
| Battery Life |
100 minimum, 200 hours in logging mode |
| Battery type |
6 AA alkaline batteries, NEDA 15A IEC LR6 |
Fluke i400 AC Current Clamp
| Specifications |
| Nominal current range |
400A |
| Continuous current range |
1 A - 400 A |
| Maximum non-destructive current |
1000 A |
| Lowest measurable current |
1 A |
| Basic accuracy |
2% + 0.06 A
(45-400 Hz)
(% reading + floorspec) |
| Useable frequency |
5 Hz - 20 kHz |
| Output level(s) |
1 mA/A |
| Safety Specifications |
| Safety |
CAT IV 600 V, CAT III, 1000 V |
| Maximum voltage |
1000 V AC rms from earth to ground, in compliance with EN61010 |
| Mechanical and General Specifications |
| Warranty |
1 year |
| Maximum conductor diameter |
32 mm (1.25 inches) |
| Maximum conductor size (busbar) |
750 MCM |
| Output cable length |
1.5 m (59 inches) |
| Shrouded banana plugs |
Yes |
|
