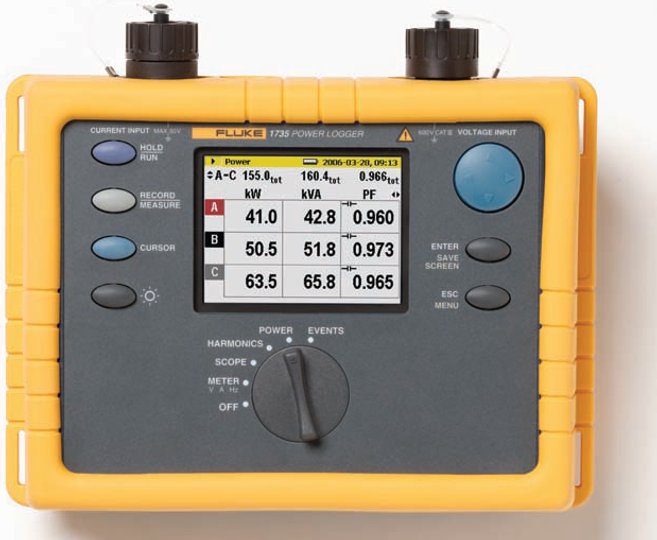

Fluke 1735 Three Phase Energy Logger
|
Item Number: Fluke-1735
Manufacturer: Fluke
Part Number: Fluke-1735
* Whole number only
|
|
Fluke 1735 Three-Phase Power Analyzer and Recorder
The Fluke 1725 is the ideal technician or electrician’s instrument for conducting energy studies and basic power quality logging or analysis. The Fluke 1735 sets up very quickly, with the its flexible 3000 amp current probes and bright full color display. The 1735 logs most electrical power parameters, harmonics and captures voltage events.
Fluke 1735 Features:
-
Record all power related parameter for over 45 days
-
Analyze maximum power demand over user-defined averaging periods
-
Perform energy use tests to verify the benefit of efficiency improvements
-
Measure harmonic electronic load distortion
-
Capturing voltage dips and swells from load switching
-
Easy setup with full color display of waveforms and trends
-
Measure all 3 phases and neutral with the supplied flexible current sensors
-
View graphs and generate reports with the easy to use Power Log software
-
Compact, rugged design with water resistant case, 600 V CAT III and two-year warranty
Fluke 1735 Is Easy to Use:
The four current probes are automatically sensed by the instrument scaled on the display accordingly. These variable range current probes are easily set to 15 A, 150 A, or 3000 A for high accuracy in nearly any application. The voltage connections are single leads, enabling easy and quick setups. The color screen provides instant confirmation that connections are correct, and then logging begins when you press the RECORD button.
Fluke 1735 Applications:
-
Load studies – verify electrical system capacity before expanding loads
-
Energy assessments – quantify energy consumption before, and after improvements, to justify energy saving devices
-
Harmonics measurements – discover harmonic issues that can damage or disrupt critical equipment
-
Voltage event capture – monitor for dips and swells that cause spurious resets or chronic circuit breaker tripping
|
|
|
|
|
Conduct load studies for up to 45 days and view saved data on-screen or on a computer
|
Quantify energy consumption quickly on-screen or log to memory for extended periods.
|
View waveforms onscreen to uncover waveform distortion and to verify correct voltage and current connections.
|
|
|
|
|
Capture voltage events using user-defined thresholds.
|
Assess voltage and current harmonics up to the 50th.
|

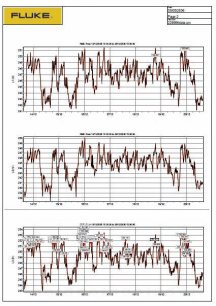

Fluke Power Log Software:
Generate reports and view graphs with Fluke Power Log Software Designed to quickly view recorded data, the included Power Log software displays all recorded parameters on interactive trends. Generate a professional report with the ‘Report Writer’ function, or copy and paste images into report document manually.
|
|
|
|
View Recorded Software in simple graphs and tables.
|
|
|
|
Easily customize the report
|
Create professional reports
|
Log Common Power Analysis Parameters:
The 1735 measure the most critical three-phase power parameters; it can can log rms voltage, rms current, phase angle, voltage events, voltage and current THD, voltage and current harmonics up to the 50th, active power, reactive power, power factor, active energy, reactive energy, and more. With memory for up to 45 days of data, the 1735 can uncover intermittent or hard-to-find issues.

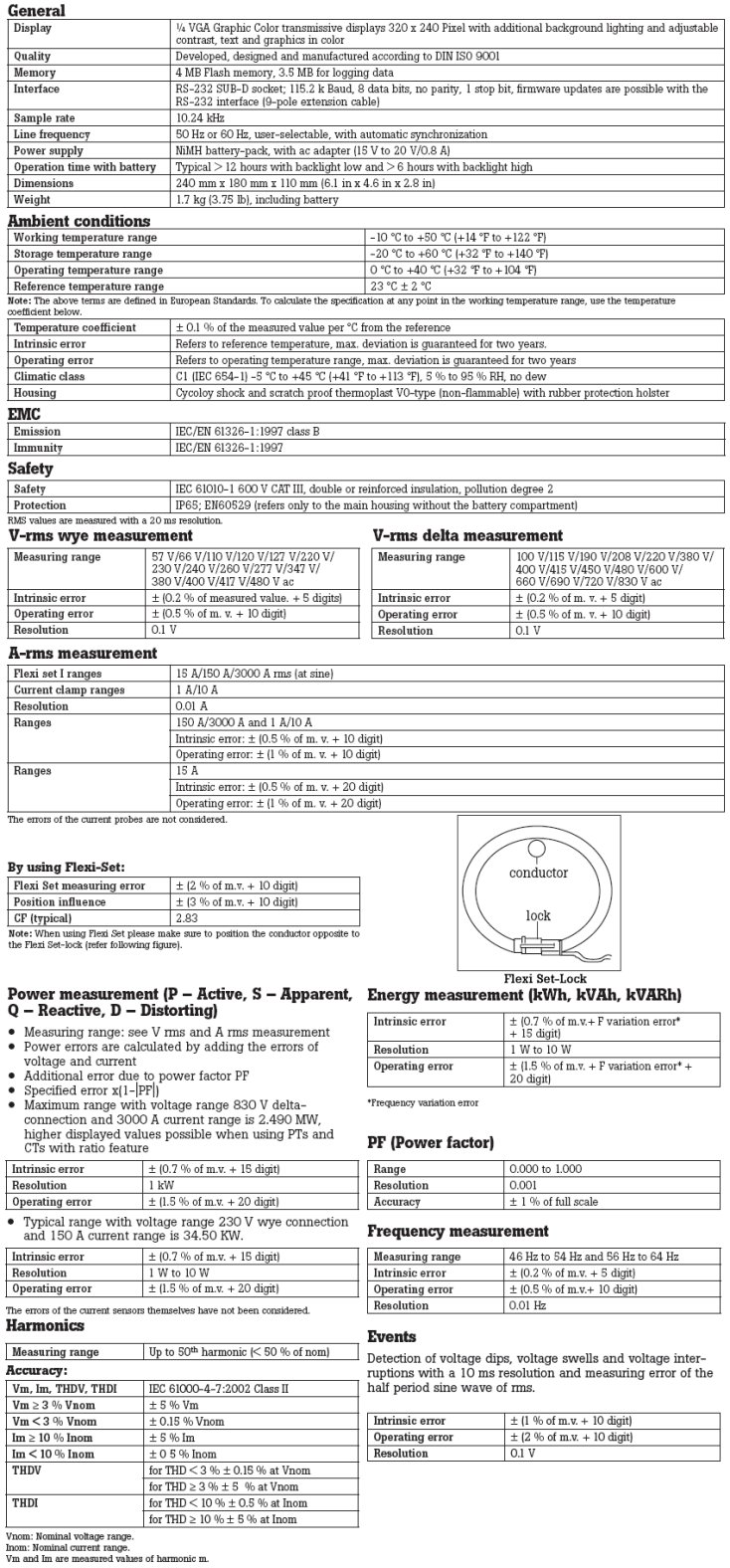

Fluke 1735 Specifications:
Fluke 1735 Includes:
|
