Fluke 1730 Three-Phase Electrical Energy Logger
|
Item Number: FLUKE-1730
Manufacturer: Fluke
Part Number: FLUKE-1730
Product Options
* denotes required field
Portable Energy Logger Selection*
You must select an option for 'Portable Energy Logger Selection'.
* Whole number only
|
|

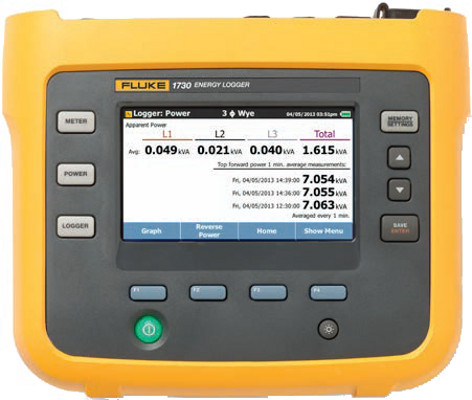

Fluke 1730 Three-Phase Electrical Energy Logger
The new Fluke 1730 Three-Phase Electrical Energy logger introduces a new simplicity to discovering sources of electrical energy waste. Discover when and where energy in your facility is being consumed; from the service entrance to individual circuits. Profiling energy usage across your facility helps you identify opportunities for energy savings, and provides you with the data you need to act on them. The new Energy Analyze software package allows you to compare multiple data points over time to build a complete picture of energy usage, which is the first step to reduce the cost of your energy bill.
Features
- Key measurements: voltage, current, power, power factor and associated values enable energy saving strategies to be implemented.
- Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display.
- Comprehensive logging: all measured values are automatically logged and can be reviewed during logging and before downloading for on-the-go analysis. More than 20 separate logging sessions can be stored on the instrument.
- Optimized user interface: quick, guided, graphical setup ensures you’re capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty.
- Complete ‘in-the-field’ setup through the front panel: no need to return to the workshop for download and setup or to take a computer to the electrical panel. Energy logging is now within your reach—discover where you’re wasting energy, optimize your facility’s energy use and reduce your bill.
- Wide range power: power instrument directly from the measured circuit eliminating the need to find a power outlet while allowing the instrument to be secured safely inside electrical panels.
- Two USB ports: one for PC connection and another for fast, simple download to standard USB thumb drives, or other USB devices.
- Compact size: designed to fit in tight spaces and panels.
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream.
- Optimized measurement accessories: flat voltage cable and thin flexible current probes ensure easy installation even in tight spaces.
- Battery life: four-hour operating time (backup time) per charge on lithium-ion battery.
- Security: safeguard against theft with a Kensington lock.
- All new, Energy Analyze application software: download, analyze and automated reporting for a complete picture of energy saving potential.
Applications
- Load studies
- Energy surveys
- Power and energy logging
- Simplified load studies

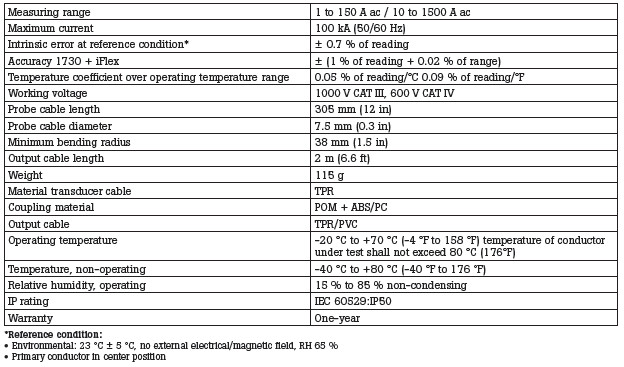

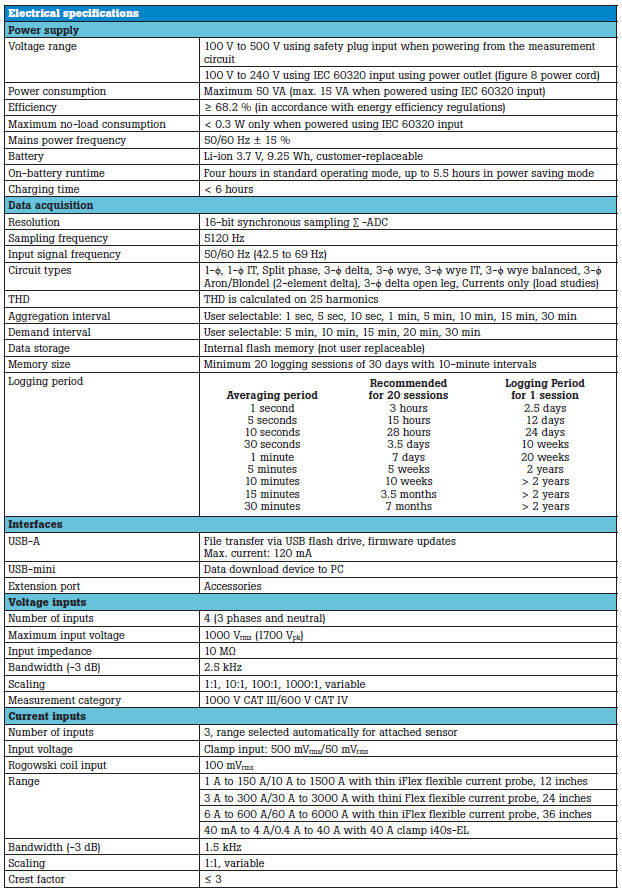

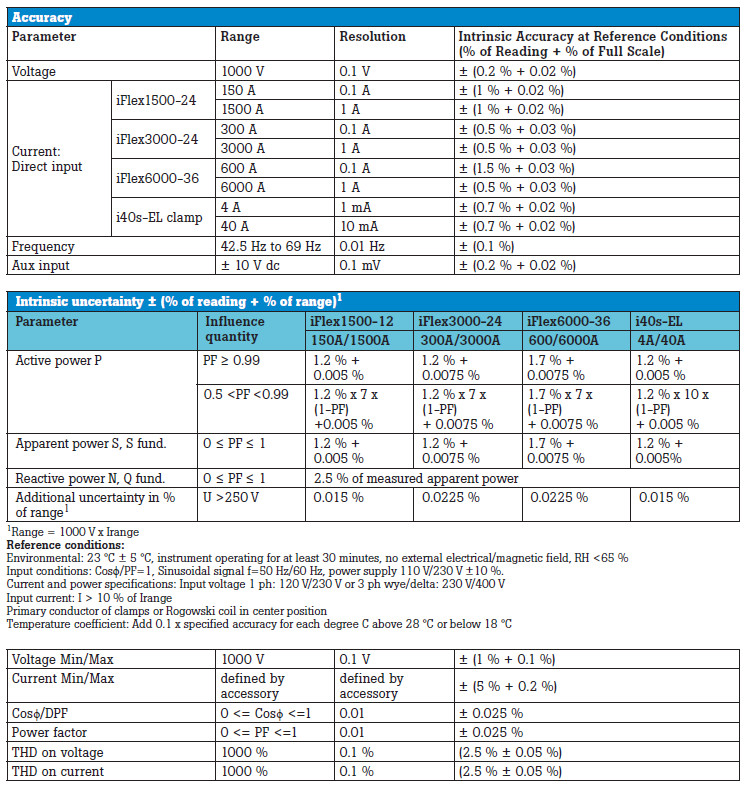

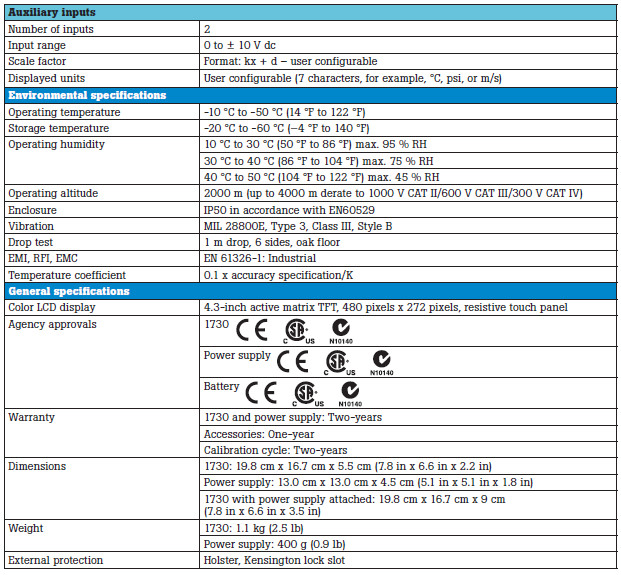

Technical Specifications    Package Contents
- 1730 Energy Logger
- Power Supply
- Voltage Test Lead
- Dolphin Clip, Black (4x)
- Three i1730-flex1500iFlex Flexible Current Probes, 30.5 cm (12 in)
- Color-coded Wire Clips
- Power Cord
- Test lead set with stackable plugs, 10 cm (3.9 in)
- Test lead set with stackable plugs, 2 m (6.6 ft)
- DC Power Cable
- USB Cable A, Mini-USB
- Soft Storage Bag/Case
- Input Connector Decal
- The power cord and input connector decal are country-specific and vary according to the order destination.
- Documentation Info Pack (Quick Reference Card, Safety, Information, Battery Pack Safety Information, iFlex Probe, Safety Information,
- 4 GB USB Flash Drive (includes Fluke Energy Analyze installer and User’s Manual)
|
