Fluke 1587 Insulation Multimeter
Our Price: $749.95
Sale Price: $674.96
Item Number: FLUKE-1587
Manufacturer: Fluke
Part Number: FLUKE-1587
Product Options
* denotes required field
Fluke 1587 Calibration Options*
* Whole number only
|
|
Fluke 1587 Insulation Multimeter

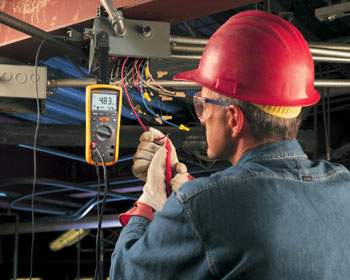

Like other tools that you have come to expect from Fluke, the 1587 is rugged, reliable and easy to use. Whether you work on motors, generators, cables or switch-gear, the Fluke 1587 Insulation Multimeter is ideally suited to help you with your tasks.
Features:
- Large display with backlight
- Insulation test 0.01 MΩ to 2 GΩ
- Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V for many applications
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- Auto-discharge of capacitive voltage for added user protection
- AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance, Continuity
- Filter for motor drive measurements
- Capacitance, diode test, temperature, Min/Max, frequency (Hz)
- Auto power off to save battery power
- CAT III 1000 V, CAT IV 600 V measurement category
- Included accessories: Remote probe, test leads and probes, alligator clips, and K-type thermocouple
- Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
- Rugged, utility hard case allows you to bring everything you need for the jobThree year warranty
 Fluke 1577/1587 Comparison:
 Fluke 1587/1577 Insulation Multimeters
| Specifications |
| Voltage DC |
| Maximum Voltage: |
1000 V |
| Accuracy: |
1577: +/-(0.2%+2) |
|
1587: +/-(0.09%+2) |
| Maximum Resolution: |
0.001V |
|
| Voltage AC |
| Maximum Voltage: |
1000 V |
| Accuracy: |
1577: +/-(2%+3) |
|
1587: +/-(2%+3) |
| AC Bandwidth: |
1587: 5kHz* |
|
*with low pass filter; 3db @ 800 Hz |
| Maximum Resolution: |
0.1 mV |
|
| Current DC |
| Maximum Amps: |
400mA |
| Amps Accuracy: |
1577: +/-(1.0%+2) |
|
1587: +/-(0.2%+2) |
| Maximum Resolution: |
0.01 mA |
|
| Current AC |
| Maximum Amps: |
400mA |
| Amps Accuracy: |
1577: +/-(2.0%+2)* |
|
1587: +/-(1.5%+2)* |
|
* 1kHz bandwidth |
| Maximum Resolution: |
0.01 mA |
|
| Resistance |
| Maximum Resistance: |
50 M-Ohm |
| Accuracy: |
1577: +/-(1.2%+2) |
|
1587: +/-(0.9%+2) |
| Maximum Resolution: |
0.1-Ohm |
|
| Capacitance(1587 only) |
| Maximum Capacitance: |
9,999 uF |
| Accuracy: |
+/-(1.2%+2) |
| Maximum Resolution: |
1 nF |
|
| Frequency (1587 only) |
| Maximum Frequency: |
100 kHz |
| Accuracy: |
+/-(0.1%+1) |
| Maximum Resolution: |
0.01 Hz |
|
| Temperature Measurement (1587 only) |
|
-40.0 DegC to 537 DegC |
|
-40.0 DegF to 998 DegF |
|
excluding probe |
|
| Diode Test (1587 only) |
| Range: |
6 V |
| Resolution: |
1 mV |
| Accuracy: |
+/-(2 % + 1) |
|
| Insulation Test |
| Minimum Test Current @ 1k-Ohm/V: |
|
| Test Voltages: |
| 1577: |
500, 1000 V |
| 1587: |
50, 100, 250, 500, 1000 V |
|
| Maximum Resistance per Test Voltage: |
| 50V: |
|
| 100V: |
|
| 250V: |
|
| 500V: |
|
| 1000V: |
1577: 600 M-Ohm |
|
1587: 2 G-Ohm |
|
| Maximum Resolution per Test Voltage: |
| 50V: |
0.01 M-Ohm |
| 100V: |
0.01 M-Ohm |
| 250V: |
0.1 M-Ohm |
| 500V: |
0.1 M-Ohm |
| 1000V: |
0.1 M-Ohm |
|
| Accuracy per Test Voltage: |
| 50V: |
+/-(3 % + 5) |
| 100V: |
+/-(3 % + 5) |
| 250V: |
+/-(1.5 % + 5) |
| 500V: |
1577: +/-(2.0 % + 5) |
|
1587: +/-(1.5 % + 5) |
| 1000V: |
1577: +/-(2.0 % + 5) |
|
1587: +/-(1.5 % + 5) to 600 M-Ohm, +/-(10 % + 3) above 600 M-Ohm |
|
| Environmental Specifications |
| Operating temperature |
|
| Storage temperature |
|
| Humidity (Without Condensation) |
|
0% - 95% (10 DegC - 30 DegC) |
|
0% - 75% (30 DegC - 40 DegC) |
|
0% - 40% (40 DegC - 55 DegC) |
|
| Operating Altitude |
|
| Safety Specifications |
| Overvoltage category |
|
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V |
|
| Agency Approvals |
|
2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V |
|
| Mechanical & General Specifications |
| Size |
|
203 x 100 x 50 mm (with holster) |
|
| Weight |
|
| Warranty |
|
| Battery life Alkaline |
| Meter use: |
1000 hours |
| Insulation test use: |
Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 M-Ohm with a duty cycle of 5 seconds on and 25 seconds off. |
|
| IP Rating |
|

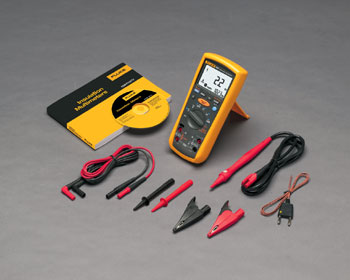

Fluke 1587 Insulation Multimeter Includes:
- Remote probe
- Test leads
- Alligator clips
- Hard case
- Four AA alkaline batteries
- Quick Reference Guide
- CD Rom with Manual
- K-type thermocouple
 |
