Fluke 123 Industrial Scopemeter, Fluke 123/003

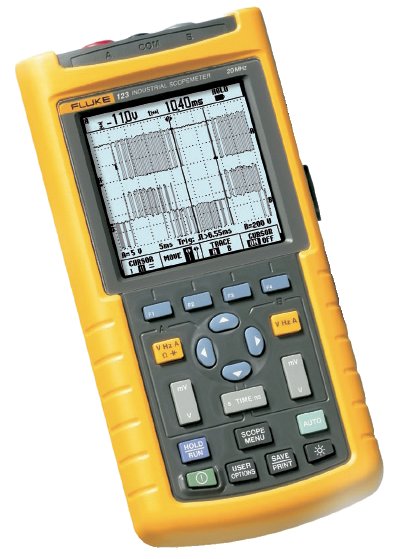

Fluke 123 Industrial Scopemeter

   In today's complex systems, a meter measurement just doesn't give enough detail to determine the cause of a fault.  Signal anomalies, dropouts and glitches that might cause a machine to go down, are best displayed with an oscilloscope. The ScopeMeter 124 and 123 meet today's need of simultaneously measuring and checking waveforms. The unique Connect-and-View triggering automatically displays stable waveforms of virtually any signal.  It really is as easy as one-two-three!

Features:

• Dual-input 40 MHz or 20 MHz digital oscilloscope
• Two 5,000 counts true-RMS digital multimeters
• A dual-input TrendPlot recorder
• Connect-and-View trigger simplicity for hands-off operation
• Shielded test leads for oscilloscope, resistance and continuity measurements
• 10:1 Voltage Probe included with Fluke 124 for high frequency measurements
• Up to 7 hours battery operation
• 600 V CAT III safety certified
• Optically isolated RS-232 interface
• Rugged, compact case

	ScopeMeter 120 Series combines a 40 or 20 MHz dual input digital storage oscillo-scope, two true-RMS digital multimeters and a dual input TrendPlot recorder all in a compact, battery powered instrument. Leave all other test tools behind, the ScopeMeter 120 Series is the only tool you'll need
High frequency waveform-, meter-, capacitance- and resistance-measurements as well as continuity checks are all covered by the shielded test leads. No time wasted finding or swapping leads. The included accessories allow hook-up at test objects of every dimension.
	Working under time pressure and in cramped or difficult to reach locations means you want to focus on the job at hand, not on the test tool in your hand. Which is why the ScopeMeter 120 Series has Connect-and-View automatic triggering (see side panel).You don't have to worry about triggering and instrument settings, and you have all the information on screen to do the job right.
Scope users know how difficult triggering can be. Wrong settings show unstable and sometimes wrong results. Fluke's unique Connect-and-View recognizes signal patterns, and automatically sets up correct triggering. It provides a stable, reliable and repeatable display of virtually any signal - including motor drive and control signals - without you touching a button. Signal changes are instantly recognized and settings adjusted for a stable display. Benefit from the speed and convenience when measuring a number of test points in quick succession.
	The toughest faults to find are those that happen only once in a while: intermit-tents. They can be caused by bad connections, dust, dirt, corrosion or simply broken wiring or connectors. You may not be around to see it - your Fluke ScopeMeter will. In this "paperless recorder" mode, you can plot the minimum and maximum peak values and average over time - up to 22 days (Fluke 190 Series) or 16 days (Fluke 120 Series). The two inputs can plot any combination of volts, amps, temperature, frequency and phase - with time and date stamp -to help lead you to the cause of those faults quickly.
	FlukeView® for Windows® helps you get more out of your ScopeMeter by:     Documenting - transfer waveforms, screens and measurement data from the ScopeMeter to a PC. Print or import the data into your report. Add user text to individual ScopeMeter settings - providing guidance to the operator when recalling a set-up. Archiving - create a library of waveforms with your comments for easy reference and comparison. Store complete Replay cycles for analysis of waveform changes. Store complete memory content of the Scop Waveform Compare - store reference waveforms on the PC, or send a reference back to the ScopeMeter for waveform comparison and "Pass/Fail" testing. Analysis - use cursors, perform spectrum analysis or export data to other analysis programs. ScopeMeter test tools are connected to a PC via an Optional optically-isolated RS-232 interface cable.

Fluke 120 Series ScopeMeter Specifications

Oscilloscope Bandwidth Fluke 124: 40 MHz Fluke 123: 20 MHz Dual input True RMS Meter   Vdc, Vac, Vac+Vdc, Ohms,Continuity , Diode-test   Current, °C, °F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset TrendPlot Recording   Automatic vertical scaling and time compression.   Display the actual, MIN, MAX and AVG reading. Cursors Fluke 124: T, 1/T, V, V, rise- and fall time Real-time sample rate   25 MS/s Inputs and digitizers   2 Timebase range Fluke 124: 20 ns - 1 min/div Fluke 123: 10 ns - 1 min/div Input sensitivity   5 mV - 500 V/div Trigger types   Connect-and-View, Free Run, Single Shot, Edge, Video, External Glitch capture   40 ns Scope measurements Automatic: 26 Maximum record length   512 min/max pts per input Memory Fluke 124: 20 screens and setups Fluke 123: 10 screens and setups Environmental Specifications Operating temperature   0 C to 50 C Storage temperature   -20 C to +60 C Operating Altitude   3,000 m Safety Specifications Electrical Safety   600V CAT III (EN61010-1) Mechanical & General Specifications Size   232 x 115 x 50 mm Weight   1.2 kg Warranty   3 years parts and labor (one year on accessories) Battery life Fluke 124: 7 hrs using NiMH Fluke 123: 5 hrs using NiCAD RS-232 Interface   Optically isolated via optional PM9080 for interfacing to Printer or PC
