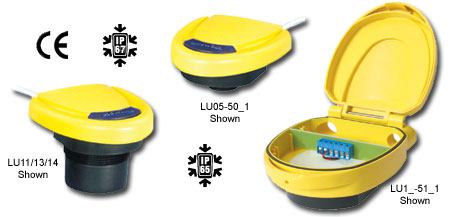

Flowline EchoSonic Two-Wire Ultrasonic Level Transmitter

Flowline EchoSonic Two-Wire Ultrasonic Level Transmitter

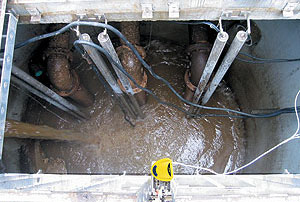

The general purpose two-wire ultrasonic transmitter provides non-contact level measurement up to 26' or 8m, and is well suited for challenging ultrapure, corrosive, slurry or waste liquids. The transmitter is broadly selected for atmospheric bulk storage, day tank, wastesump, process vessel, IBC tote, 55-gallon drum and waste sump applications. Media examples include acetic acid and resin.

Feature:

• Simple compact sensor with target calibration and LED status indicator
• Offered in four measurement ranges up to 8m with 1” and 2” transducers
• 5 cm minimum beam width for applications with restricted space
• 5 cm miniature dead band optimizes the filling capacity of small vessels
• PC/ABS enclosure rated NEMA 6 or NEMA 4X with PVDF transducer
• Fail-safe intelligence with diagnostic feedback for easy troubleshooting

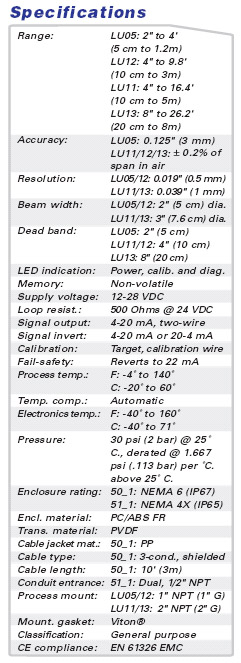

Specifications:

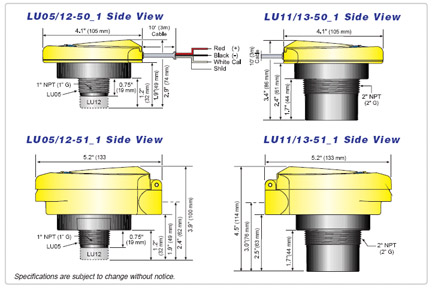

Dimensions:
