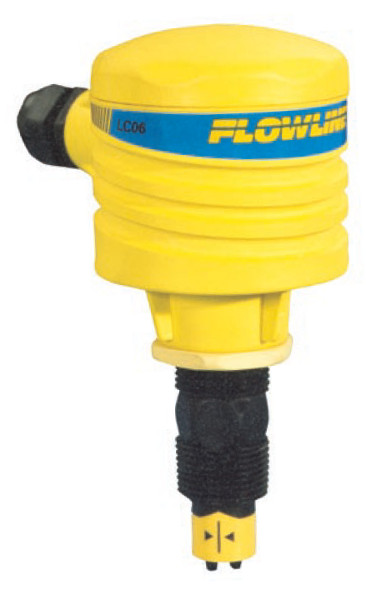

Flowline Thermo-Flo AX1X-X63X with Compact Junction Box
Our Price: Starting at $335.00
Manufacturer: Flowline
Part Number: AX1X-X63X
Product Options
| Application media: |
|
| Sensor length: |
|
| Sensor material: |
|
| Process mount: |
|
Product Options
Flowline Thermo-Flo AX1X-X63X Accessory Option
* Whole number only
|
|
Flowline Thermo-Flo AX1X-X63X with Compact Junction Box
Application
Offered in liquid and gas sensor types, the general purpose flow switch package provides reliable no or low-flow detection of relatively clean non-coating media with a 1A relay output and compact junction box for wiring termination. Liquid examples includes water and acetic acid. Available in PP-Ryton® and PVDF, the short flow sensor is used in pipe or ducting from 1/2" to 1 1/2", and the long flow sensor is used in 2" and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases as a low-flow alarm. The flow sensor is best applied in applications with relatively constant temperature.
Features
- Rugged Polypropylene-Ryton® or PVDF sensor for corrosive liquids and gases
- Adjustable set point with LED for flow or no-flow status indication
- Polypropylene enclosure rated NEMA 4X with swivel base and terminal strip
- 60VA relay selectable NO or NC via power supply wiring polarity
- Solid state sensor is not damaged by over-ranging flow velocities

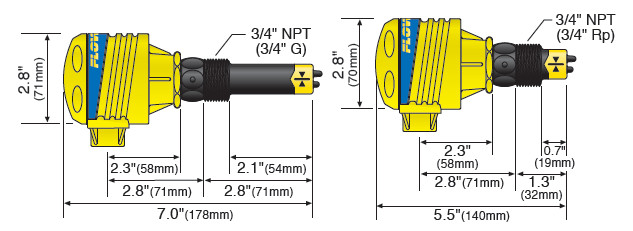

Dimensions
Technical Specifications
| Set point range: |
AT1X: 0.04 to 3 fps
(0.012 to 0.91 mps)
AG1X: 1 to 90 fps
(0.3 to 27 mps) |
| Factory set point: |
AT1_: .2fps (.06 mps)
AG1_: 10 fps (3 mps) |
| Repeatability: |
±0.5% of set point @
fixed temperature |
| Response time: |
1-10 seconds |
| Set point adjust.: |
Potentiometer |
| Viscosity range: |
AT1_: 1-200 centipoise
AG1_: N/A |
| LED indication: |
Flow status |
| Supply voltage: |
12-36 VDC |
| Consumption: |
70 mA maximum |
| Contact rating: |
60 VA, 1A maximum |
| Contact type: |
(1) SPST relay |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: 32° to 140°
C: 0° to 60° |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Pressure: |
150 psi (10 bar) @ 25º
C, derated @ 1.667
psi (0.113 bar) per ºC
above 25º C |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
PP, UL94VO |
| Terminal strip: |
6-pole, socket |
| Conduit entrance: |
1/2" NPT |
| Wetted material: |
-163X: PP-Ryton®
-363X: PVDF |
| Process mount: |
3/4" NPT (3/4" G) |
| Mount gasket: |
Viton® (G version only) |
| Classification: |
General purpose |
| Compliance: |
CE |
|
