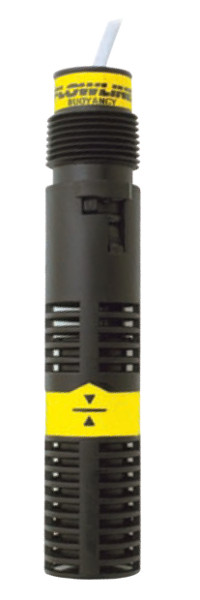

Flowline Switch-Tek LV10 Vertical Buoyancy Level Switch
Our Price: Starting at $110.00
Manufacturer: Flowline
Part Number: LV10
Product Options
| Sensor material: |
|
| Process mount: |
|
* Whole number only
|
|
Flowline Switch-Tek LV10 Vertical Buoyancy Level Switch
Application
The general purpose buoyancy point level switch provides reliable liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include boric acid and ultra-pure water. The baffle body eliminates level switch chatter caused by turbulence. The submersible polypropylene or PVDF liquid level sensor is mounted vertically inside the tank as a high level alarm or low level alarm.
Features
- Baffle body and stabilized float dampen out switch chatter
- Submersible polypropylene or PVDF sensor and cable for corrosive liquids
- 15VA dry contact selectable NO or NC state via wiring selection
- Compatible with Smart Trak and Switch-Pak installation fittings

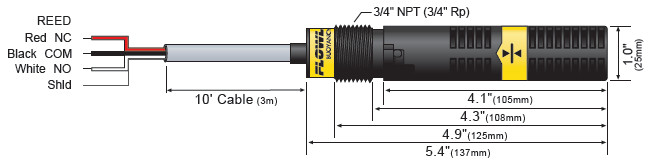

Dimensions
Technical Specifications
| Orientation: |
± 20° vertical |
| Accuracy: |
± 2mm in water |
| Repeatability: |
± 1mm in water |
| Specific gravity: |
0.8 minimum |
| Contact type: |
(1) SPDT reed |
| Contact rating: |
15 VA, 0.25A maximum |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Pressure: |
25 psi (2 bar) @ 25º
C, derated @ 1.667
psi (0.113 bar) per
ºC above 25º C |
| Sensor rating: |
NEMA 6 (IP68) |
| Sensor material: |
-13X1: PP
-53X1: PVDF |
| Cable jack. mat.: |
-13X1: PP
-53X1: PFA |
| Cable type: |
3-conductor, shielded |
| Cable length: |
10' (3m) |
| Process mount: |
3/4" NPT (3/4" Rp) |
| Classification: |
General purpose |
| Compliance: |
CE |
|
