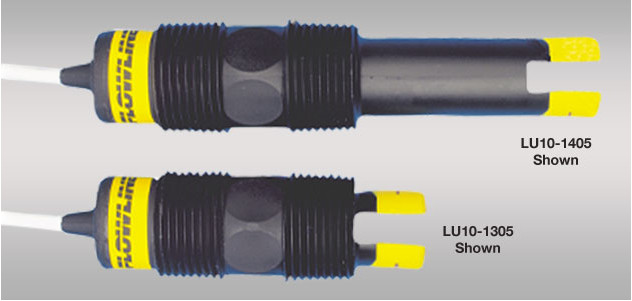

Flowline Switch-Tek LU10 Ultrasonic Level Switch
Our Price: Starting at $275.00
Manufacturer: Flowline
Part Number: LU10
Product Options
| Sensor material: |
|
| Sensor length: |
|
| Process mount: |
|
* Whole number only
|
|
Flowline Switch-Tek LU10 Ultrasonic Level Switch
Application
CSA approved for hazardous environments, the intrinsically safe ultrasonic point level switch provides reliable liquid level detection of chemical, solvent, hydrocarbon and petroleum based liquids with a 1A relay output. Media examples include fuel, acetone and hydrochloric acid. The submersible polypropylene or PFA liquid level sensor is universally mounted through the tank wall or inside the tank as a high level alarm or low level alarm.
Features
- CSA approved intrinsically safe for use in hazardous environments
- Submersible polypropylene or PFA Teflon® sensor and cable for corrosive liquids
- 60VA relay selectable NO or NC via power supply wiring polarity
- Compatible with Smart Trak and Switch-Pak installation fittings

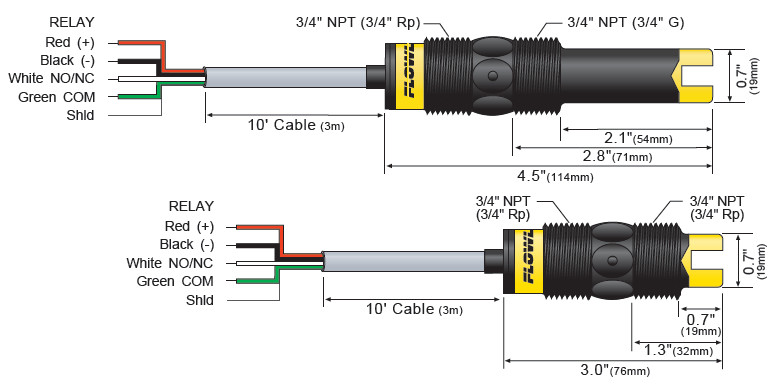

Dimensions
Technical Specifications
| Orientation: |
Universal |
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Supply voltage: |
12-36 VDC |
| Consumption: |
25 mA maximum |
| Contact type: |
(1) SPST relay |
| Contact rating: |
GP: 60 VA
IS: 32 VDC @ 0.5A |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Pressure: |
150 psi (10 bar) @ 25º
C, derated @ 1.667
psi (0.113 bar) per ºC
above 25º C |
| Sensor rating: |
-1XX5: NEMA 6 (IP68)
-2XX5: NEMA 4X (IP65) |
| Sensor material: |
-1XX5: PP
-2XX5: PFA |
| Cable jack. mat.: |
-1XX5: PP
-2XX5: PFA |
| Cable type: |
4-conductor, #22 AWG,
shielded |
| Cable length: |
10' (3m) |
| Process mount: |
3/4" NPT (3/4”" G / Rp) |
| Mount. gasket: |
Viton® |
| Classification: |
Intrinsically safe |
| Certificate: |
CSA, LR 79326 |
| Compliance: |
CE |
| Approvals: |
Class I, Groups A, B, C
& D; Class II, Groups E,
F & G; Class III |
| Parameters: |
Vmax = 32V, Imax = 300
mA, Pmax = 1.3W, Ci =
0 µF, Li = 0 µH |
|
