Flowline Switch-Tek LP50 Non-Intrusive Capacitance Level Switch
Our Price: Starting at $220.00
Manufacturer: Flowline
Part Number: LP50
Product Options
| Bracket Material: |
|
Product Options
Non-Intrusive Capacitance Mounting Bracket Selection
Single & Two Controller NEMA Box Selection
* Whole number only
|
|

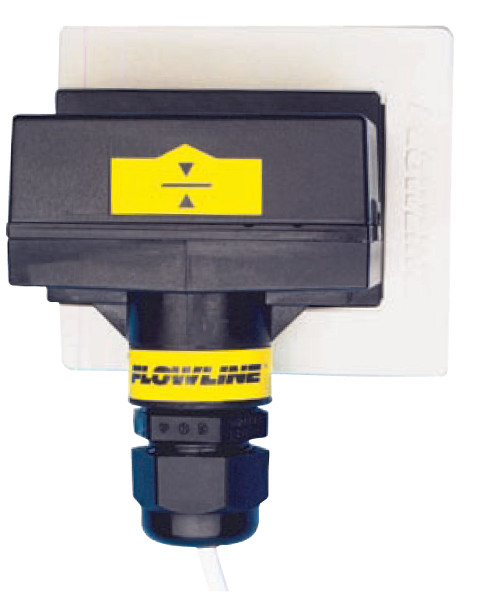

Flowline Switch-Tek LP50 Non-Intrusive Capacitance Level Switch
Application
The general purpose non-intrusive capacitance level switch provides reliable liquid level detection of water based conductive liquids with non-coating and/or scaling characteristics with a 1A relay output. Media examples include hydrochloric, sulfuric acid and water. The liquid level sensor is bracket mounted on the exterior wall of non-metallic tanks and applied as a high level alarm or low level alarm.
Features
- Non-intrusive level detection through plastic or fiberglass walls
- Installed with polyethylene, polypropylene or PVDF adhesive 3M mounting brackets
- Rugged PSO enclosure rated NEMA 4X with conduit connector
- 60VA relay selectable NO or NC via power supply wiring polarity

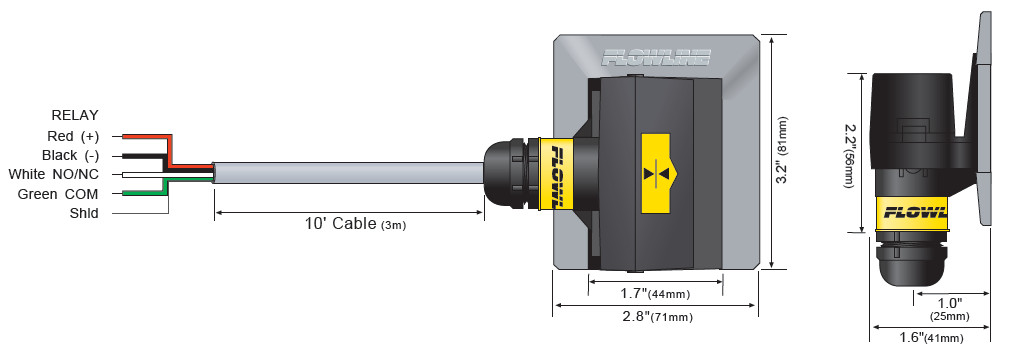

Dimensions
Technical Specifications
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Dielectric range: |
> 20 constants |
| Conduct. range: |
> 100 µ |
| Supply voltage: |
12-36 VDC |
| Consumption: |
25 mA maximum |
| Contact type: |
(1) SPST relay |
| Contact rating: |
60 VA, 1A maximum |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
PSO |
| Cable jack. mat.: |
Polypropylene |
| Cable type: |
4-conductor, shielded
#22 AWG |
| Cable length: |
10' (3m) |
| Conduit entrance: |
1/2" NPT |
| Tank mat. comp.: |
Non-metallic |
| Tank mounting: |
Bracket w/3M adhesive,
plastic thermal weld |
| Tank wall thick.: |
< 1" (25mm) |
| Bracket material: |
-6005: PE
-1005: PP
-5005: PVDF |
| Classification: |
General purpose |
| Compliance: |
CE |
|
