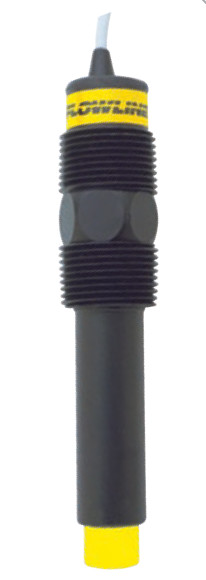

Flowline Switch-Tek LP15 Guard Capacitance Level Switch
Our Price: Starting at $255.00
Manufacturer: Flowline
Part Number: LP15
Product Options
| Process mount: |
|
* Whole number only
|
|
Flowline Switch-Tek LP15 Guard Capacitance Level Switch
Application
The general purpose guard capacitance point level switch provides reliable high or low liquid level detection of water based conductive liquids with light coating, crystallizing or scaling characteristics with a 1A relay output. Media examples include copper sulfate and brine. The RF guard circuit eliminates the coating signal path between the active and reference electrodes. The submersible polypropylene liquid level sensor is universally mounted through non-metallic tank walls or inside the tank as a high level alarm or low level alarm.
Features
- Guard circuit optimizes performance in coating type media
- Submersible PP sensor body and cable for corrosive liquids
- 60VA relay selectable NO or NC via power supply wiring polarity
- Compatible with Smart Trak and Switch-Pak installation fittings

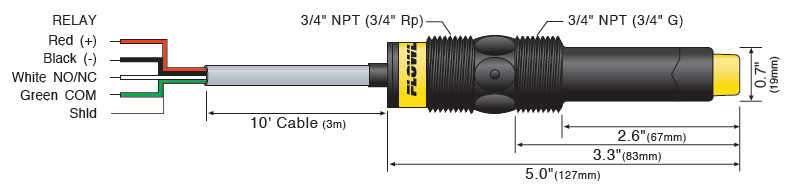

Dimensions
Technical Specifications
| Orientation: |
Universal |
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Dielectric range: |
> 20 constants |
| Conductive range: |
> 100 µ |
| Supply voltage: |
12-36 VDC |
| Consumption: |
25 mA maximum |
| Contact type: |
(1) SPST relay |
| Contact rating: |
60 VA, 1A maximum |
| Contact output: |
Selectable NO / NC |
| Process temp: |
F: -40° to 176°
C: -40° to 80° |
| Pressure: |
150 psi (10 bar) @ 25º
C, derated @ 1.667
psi (0.113 bar) per ºC
above 25º C |
| Sensor rating: |
NEMA 6 (IP68) |
| Sensor material: |
Polypropylene |
| Cable jack. mat.: |
Polypropylene |
| Cable type: |
4-conductor, shielded |
| Cable length: |
10' (3m) |
| Process mount: |
3/4" NPT (3/4" G) |
| Mount. gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE |
|
