Flowline Switch-Tek LO10 Optic Leak Detection Switch
Our Price: Starting at $165.00
Manufacturer: Flowline
Part Number: LO10
Product Options
| Sensor material: |
|
| Sensor length: |
|
| Process mount: |
|
* Whole number only
|

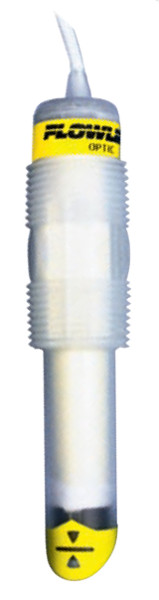

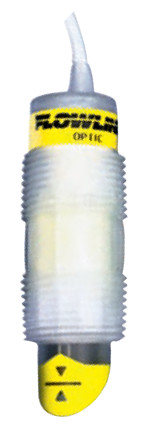

 Flowline Switch-Tek LO10-1405 Optic Leak Detection Switch Flowline Switch-Tek LO10-1305 Optic Leak Detection Switch |
|
Flowline Switch-Tek LO10 Optic Leak Detection Switch
Application
The general purpose optic leak switch provides reliable leak detection in and around secondary containment sumps, tanks and piping systems with a 1A relay output. Media examples include sulfuric acid, water and diesel. The submersible polypropylene or PFA liquid leak detection sensor is mounted through the wall or within the interstitial space.
Features
- Submersible polypropylene or PFA Teflon® sensor and cable for corrosive liquids
- 60VA relay selectable NO or NC via power supply wiring polarity
- Fail-safe leak sensor inverts wet to alert user for maintenance

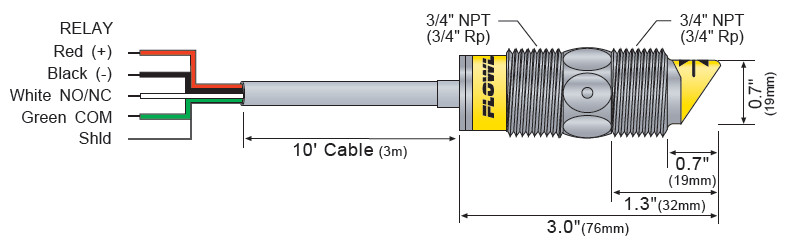

Dimensions
Technical Specifications
| Orientation: |
Universal |
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Supply voltage: |
12-36 VDC |
| Consumption: |
25 mA maximum |
| Contact type: |
(1) SPST relay |
| Contact rating: |
60 VA, 1A maximum |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Pressure: |
150 psi (10 bar) @ 25º
C, derated @ 1.667
psi (0.113 bar) per ºC
above 25º C |
| Sensor rating: |
NEMA 6 (IP68) |
| Sensor material: |
-1XX5: PP
-2XX5: PFA |
| Cable jack. mat.: |
-1XX5: PP
-2XX5: PFA |
| Cable type: |
4-conductor, shielded |
| Cable length: |
10' (3m) |
| Process mount: |
3/4" NPT (3/4” G) |
| Mount. gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE |
|
