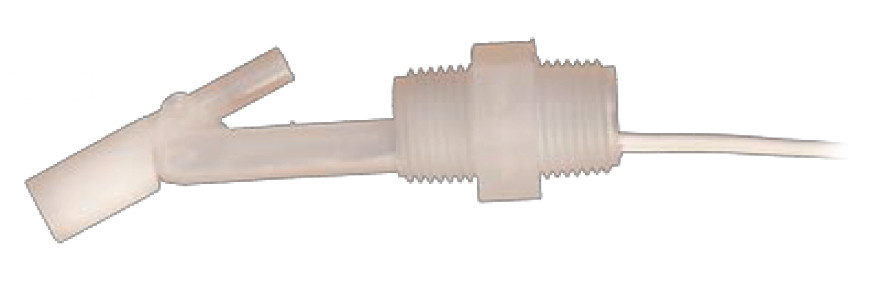

Flowline Switch-Tek LH25 Horizontal Mini-Float Level Switch
Our Price: Starting at $24.00
Manufacturer: Flowline
Part Number: LH25
Product Options
| Sensor Material: |
|
Product Options
Single & Two Controller NEMA Box Selection
* Whole number only
|
|
Flowline Switch-Tek LH25 Horizontal Mini-Float Level Switch
Application
Offered in both vertical and horizontal configurations, the general purpose mini-float level switches provide reliable liquid level detection of clean water and chemical solutions with a 15VA or 30VA reed switch output. Media examples include water and sulfuric acid. The polypropylene or PVDF liquid level sensors are mounted vertically inside the tank or horizontally through the tank wall as a high level alarm or low level alarm.
Features
- Simple low-cost level switch solution for basic applications
- Offered in both vertical and horizontal mounting configurations
- Dry contact reed switch selectable NO or NC via float orientation
- Small polypropylene or PVDF sensor body with PVC, TFE or Polymeric cable

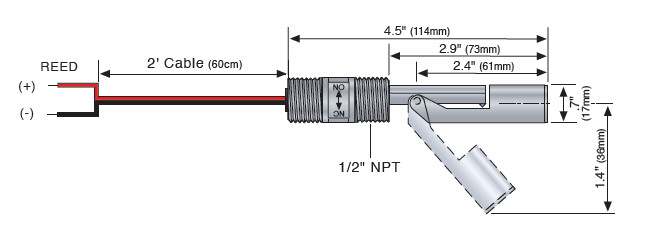

Dimensions
Technical Specifications
| Orientation: |
LV20: ±20° vertical
LH25: ±20° horizontal |
| Accuracy: |
± 5mm in water |
| Repeatability: |
± 2mm in water |
| Specific gravity: |
LV20: 0.8 minimum
LH25: 0.6 minimum |
| Contact type: |
(1) SPST reed |
| Contact rating: |
LV20: 15 VA, 0.25A max.
LH25: 30 VA, 0.5A max. |
| Contact output: |
Selectable NO / NC |
| Process temp.: |
LV20 | F: -40° to 176°
C: -40° to 80°
LH25 | F: -40° to 221°
C: -40° to 105° |
| Pressure: |
LV20: 10 psi (0.7 bar)
LH25: 100 psi (6.9 bar) |
| Sensor rating: |
NEMA 6 (IP68) |
| Sensor material: |
LV20-12X1: Polypropylene
LV20-52X1: PVDF
LH25-1201: Polypropylene
LH25-5201: PVDF |
| Wire jack. mat.: |
LX2X-12X1: PVC
LX2X-52X1: TFE
LH25: Polymeric |
| Wire type: |
2-conductor |
| Wire length: |
2' (61cm) |
| Process mount: |
LV20: 1/8" NPT
LH25: 1/2" NPT |
| Classification: |
General purpose |
| Compliance: |
CE |
|
