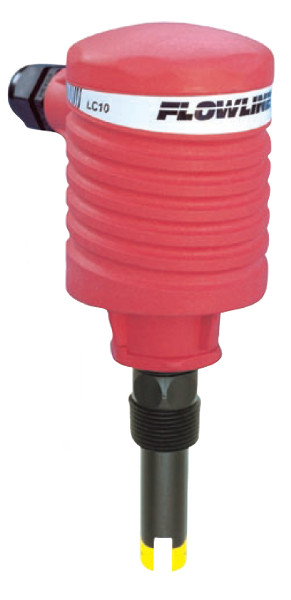

Flowline Switch-Pro AX13-X1 with Compact Level Controller
Our Price: Starting at $570.00
Manufacturer: Flowline
Part Number: AX13-X1
Product Options
| Sensor technology: |
|
| Wetted material: |
|
| Configuration: |
|
| Process mount: |
|
* Whole number only
|
|
Flowline Switch-Pro AX13-X1 with Compact Level Controller
Application
Intended for side wall installation, the general purpose level switch package provides reliable liquid level detection with a 16A compact level controller for pump or valve control. The optional flash alarm brings attention to alarm conditions. Offered in two level sensor technologies, select the type and material based upon your application media. This liquid level switch package is widely applied in bulk storage and process tank level applications for high level control or low level control.

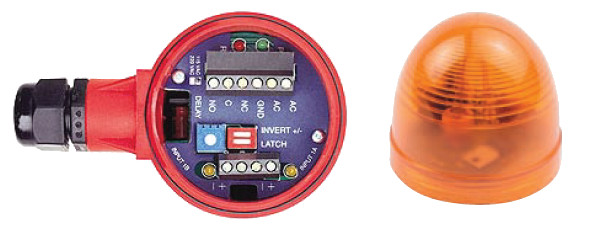

Controller Faceplate Strobe Alert
Strobe Alert: The controller with Strobe Alert configuration flashes when the relay is energized during a high or low level alarm condition.
Features
- Rugged polypropylene, Ryton® or PFA sensor for corrosive liquid applications
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment
- Optional strobe brings immediate attention to level alarm conditions
- Invert switch changes relay state from NO to NC without rewiring
- Offered in 2 sensing technologies for broad application coverage: ultrasonic & vibration
Technical Specifications
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| LED indication: |
Sensor, power & relay |
| Supply voltage: |
120 / 240 VAC @ 50-60 Hz. |
| Consumption: |
0.25A maximum |
| Strobe type: |
-X12X: N/A
-X11X: Xenon tube |
| Strobe flash: |
-X12X: N/A
-X11X: (1) per second |
| Contact type: |
(1) SPST relay |
| Contact rating: |
250 VAC @ 10A |
| Contact output: |
Selectable NO / NC |
| Contact delay: |
0-60 seconds |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Pressure: |
150 psi (10 bar) @ 25º
C, derated @ 1.667
psi (0.113 bar) per ºC
above 25º C |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
-X11X: PP, UL94VO & PC
-X12X: PP, UL94VO |
| Conduit entrance: |
1/2" NPT |
| Wetted material: |
AZ13-11XX: Ryton®
AU13-11XX: PP
AU13-21XX: PFA |
| Process mount: |
3/4" NPT (3/4" G) |
| Mount. gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE |
|
Flowline LCXX is offered in both AC and DC powered configurations, and it brings immediate attention to process alarm conditions.
| |
