Flowline Switch-Pak LM45 Single-Point Switch Fitting
Our Price: Starting at $33.00
Manufacturer: Flowline
Part Number: LM45
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Product Options
| Fitting material: |
|
| Process / sensor mount: |
|
Product Options

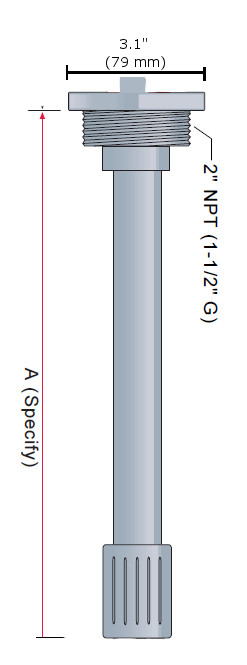

Flowline LM45 Fitting Dimensions (See A Dimensions Below)
* Whole number only
|
|
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Flowline Switch-Pak LM45 Single-Point Switch Fitting
Applications
The single-point fitting enables users to install and extend a Flowline level switch through the top wall of the tank. Offered in PVC, PP and PVDF materials, the fitting is typically applied in bulk storage tanks, day tanks and waste sumps. Each fitting is built custom to your requirements. Select the appropriate material based upon your application liquid and specify the A-dimension, taking into consideration the installed sensor length.
Features
- Thermal or solvent welded fitting is built to your switch insertion length
- Offered in PVDF, PP and PVC material for maximum chemical compatibility
Dimensions (See A Measurements for Ordering Options)
Technical Specifications
Fitting
Lengths:
|
6" to 10'
(15 cm to 3m)
|
Process temp.:
|
F: -40° to 176°
C: -40° to 80° |
Pressure:
|
150 psi (10 bar) @25°
C., derated @ 1.667
psi (.113 bar) per °C
above 25° C |
Fitting material:
|
70_1: PVC
10_1: PP
50_1: PVDF
|
Process mount:
|
_001: 2" NPT
_061: 1.5" G |
| Mount. gasket: |
Viton |
| Sensor adapter: |
3/4" NPT (3/4" Rp) |
Junction Box
Sensor inputs:
|
1 sensors |
| Terminal strip: |
6 pole socket
|
| Enclosure rating: |
NEMA 4X (IP65)
|
Encl. material:
|
PP, UL94VO |
| Encl. rotation: |
300° swivel base
|
| Conduit entrance: |
Single, 1/2" NPT
|
Temp. rating:
|
F: -40° to 158°
C: -40° to 70°
|
Side Mount
Bracket material:
|
PP |
Female threads:
|
1001: 2" NPT
1051: 2" G
|
| Tank installation: |
Bolt or plastic weld
|
|
