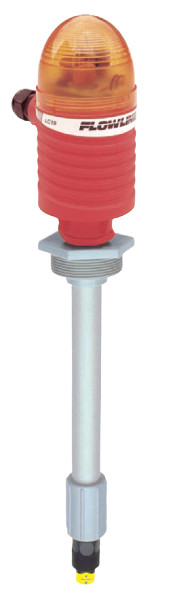

Flowline Switch-Pak AX13 with Compact Level Controller
Our Price: CALL FOR PRICING
Manufacturer: Flowline
Part Number: AX13
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Product Options
| Sensor technology: |
|
| Wetted material: |
|
| Configuration: |
|
| Process mount: |
|
Product Options
Flowline AX13 Switch Dimensions (See A Dimensions Below)
|
|
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Flowline Switch-Pak AX13 with Compact Level Controller
Application
The general purpose level switch package provides reliable, high or low liquid level detection with a 16A compact relay controller for pump or valve control. The optional flash alarm brings attention to alarm conditions. Available in three level sensor technologies, select the sensor type based upon your application media. This polypropylene or PVDF liquid level switch package is broadly applied in bulk storage, sump and day tank level applications for high level control or low level control.
Controller Faceplate
Features
- Polypropylene or PVDF single-point level switch package for corrosive liquids
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Offered in 3 sensing technologies for broad application coverage: ultrasonic, vibration & buoyancy
- Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment
- Optional strobe brings immediate attention to level alarm conditions
- Invert switch changes relay state from NO to NC without rewiring

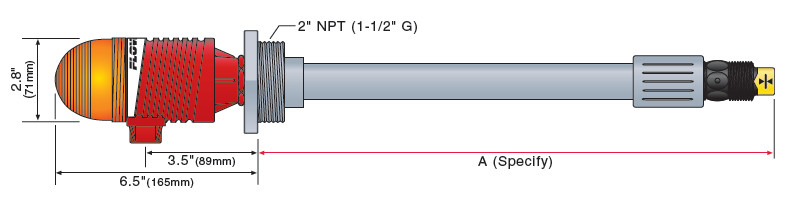

Dimensions (See A Measurements for Ordering Options)
Technical Specifications
| Length: |
6" to 10' (15cm to 3m) |
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Orientation: |
± 20° vertical |
| Switch points: |
1 (factory set) |
| Supply voltage: |
120 / 240 VAC @ 50-60 Hz. |
| LED indication: |
Sensor, power & relay |
| Consumption: |
0.25A maximum |
| Strobe type: |
-X22X: N/A
-X21X: Xenon tube |
| Strobe flash: |
-X22X: N/A
-X21X: 1 per second |
| Contact type: |
(1) SPDT relay |
| Contact rating: |
250 VAC @ 10A |
| Contact output: |
Selectable NO / NC |
| Contact delay: |
0-60 seconds |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Pressure: |
AV13: 25 psi (1.7 bar)
AU13 / AZ13: 150 psi
(10 bar) |
| Enclosure rating: |
NEMA 4X (IP65) |
| Encl. material: |
-X21X: PP, UL94VO & PC
-X22X: PP, UL94VO |
| Conduit entrance: |
1/2" NPT |
| Wetted material: |
AV13-42XX: PP
AU13-42XX: PP
AU13-52XX: PVDF
AZ13-42XX: PP-Ryton® |
| Process mount: |
-X2X3: 2" NPT
-X2X7: 1 1/2" G |
| Classification: |
General purpose |
| Compliance: |
CE |
|
