Flowline Smart Trak AX23 with Compact Level Controller
Our Price: CALL FOR PRICING
Manufacturer: Flowline
Part Number: AX23
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT
Product Options
| Sensor technology: |
|
| Configuration: |
|
| Process mount: |
|
Product Options

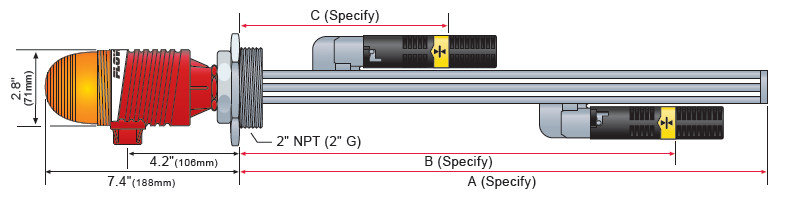

Flowline AX23 Switch Dimensions (See A, B, C Dimensions Below)
|
|
FREE SHIPPING IS NOT AVAILABLE FOR THIS PRODUCT

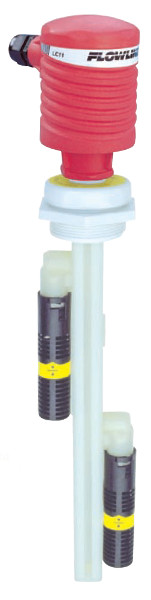

Flowline Smart Trak AX23 with Compact Level Controller
Application
The general purpose level switch package provides automatic tank filling or emptying up to 10' (3m) between two adjustable level switch points. The compact level controller with optional strobe provides one latching 16A relay for pump or valve control. Offered in three level sensor technologies, select the type based upon your application media. This polypropylene liquid level switch package is widely selected for sump, process and day tank level applications.

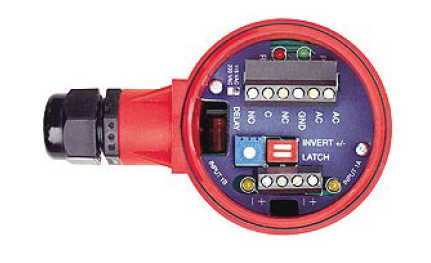

Compact Level Controller
Features
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Offered in 3 sensing technologies for broad application coverage: ultrasonic, vibration & buoyancy
- Easy setup with LED indicators for sensor, power and relay status
- Rugged polypropylene construction for use in corrosive liquid environments
- Adjustable level switch cars enable sensor adjustment in the field
- Invert switch changes relay state from NO to NC without rewiring
Dimensions (See A, B, C Measurements for Ordering Options)
Technical Specifications
| Length: |
8" to 10' (20cm to 3m) |
| Accuracy: |
± 1mm in water |
| Repeatability: |
± 0.5mm in water |
| Orientation: |
± 20° vertical |
| Switch points: |
2 (field adjustable) |
| LED indication: |
Power, relay & sensor |
| Supply voltage: |
120 / 240 VAC @ 50-60 Hz |
| Consumption: |
0.25A maximum |
| Strobe type: |
-431X: N/A
-432X: Xenon tube |
| Strobe flash: |
-431X: N/A
-432X: 1 per second |
| Contact type: |
(1) SPDT relay, latching |
| Contact rating: |
250 VAC @ 10A |
| Contact output: |
Selectable NO / NC |
| Contact delay: |
0-60 seconds |
| Contact latch: |
Selectable ON / OFF |
| Process temp.: |
F: -40° to 176°
C: -40° to 80° |
| Ambient temp.: |
F: -40° to 140°
C: -40° to 60° |
| Ambient temp.: |
431_: 5.7" (14.4cm)
432_: 7.4" (18.8cm) |
| Pressure: |
Atmospheric |
| Enclosure rating: |
NEMA 4X (IP65) |
| Enclosure mat.: |
-432X: PP, UL94VO & PC
-431X: PP, UL94VO |
| Conduit entrance: |
1/2" NPT |
| Wetted material: |
PP (20% glass fill) |
| Process mount: |
2" NPT (2" G) |
| Classification: |
General purpose |
| Compliance: |
CE |
|
