Flowline Float-Point AV17 55-Gallon Drum Alarm
Our Price: Starting at $340.00
Manufacturer: Flowline
Part Number: AV17
Product Options
| Compact or Remote Mount Alarm Type: |
|
* Whole number only
|

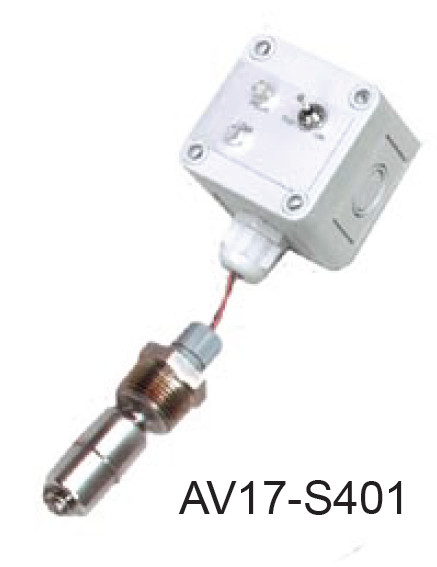

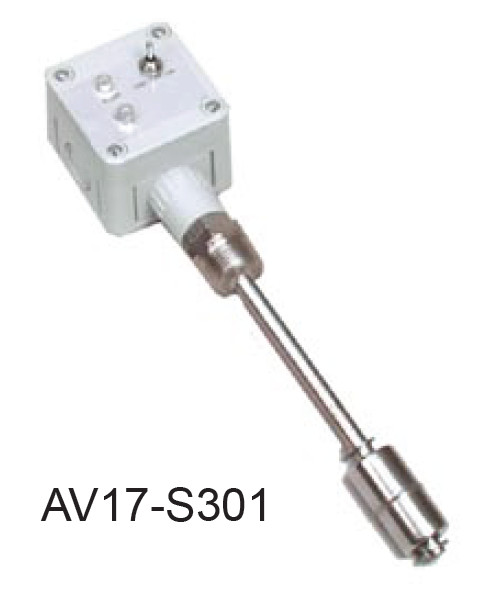

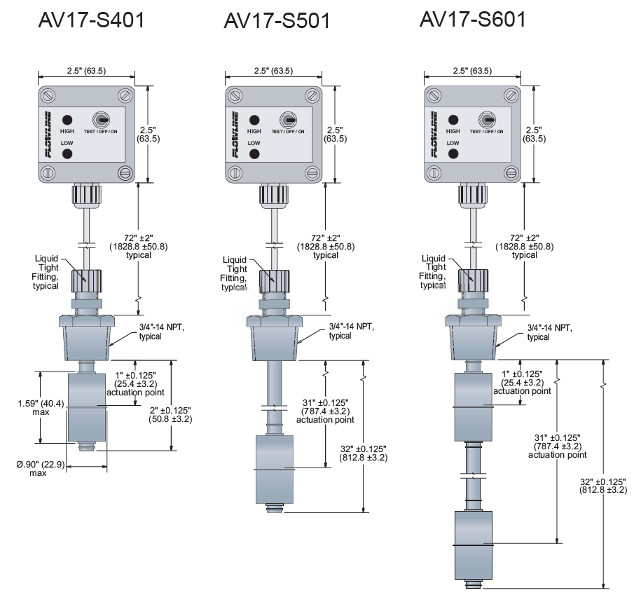

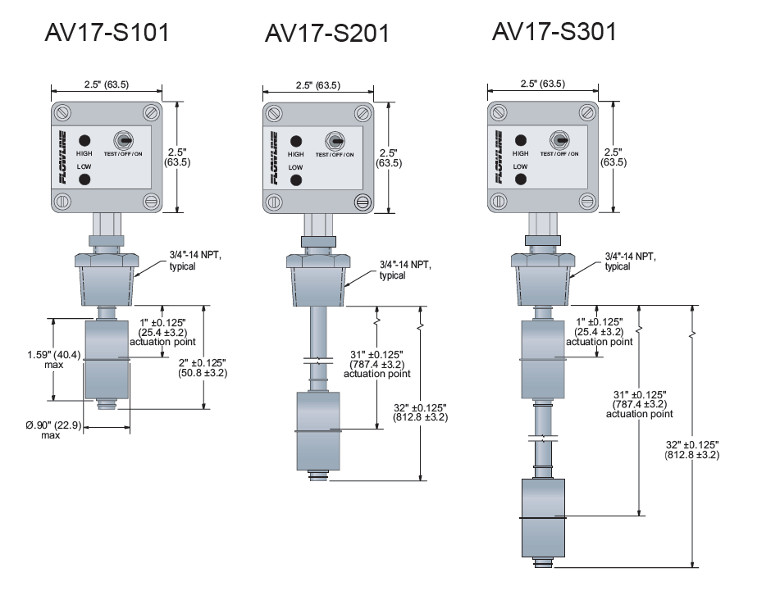

 Flowline Float-Point AV17 55-Gallon Drum Alarm (Compact Alarm) Flowline Float-Point AV17 55-Gallon Drum Alarm (Remote Alarm) AV17 Dimensions 1 AV17 Dimensions 2 |
|
Flowline Float-Point AV17 55-Gallon Drum Alarm
Application

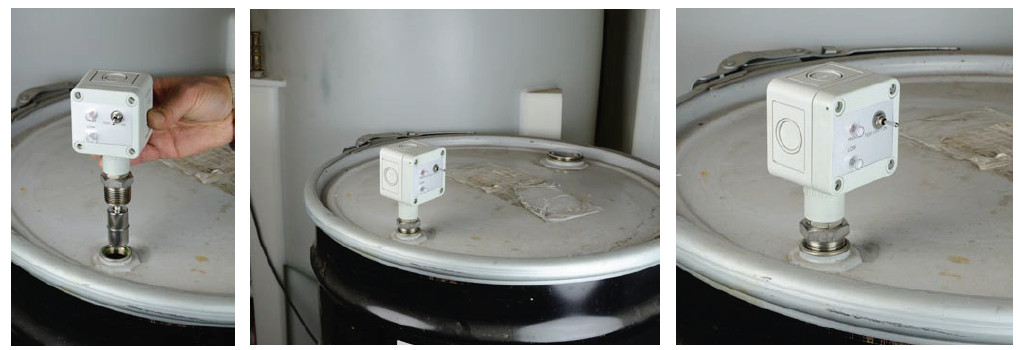

The general purpose, battery powered drum alarm provides reliable liquid level monitoring of 55-gallon drums. The stainless steel float assembly is available in three configurations including high alarm, low alarm or high and low level alarm. In the event of an alarm condition, the battery powered LED will actuate to alert the user. Select the compact alarm which is mounted on the float stem, or the remote alarm which is separated from the float stem with a 72" (1.82m) cable.
Features
- Portable, 9V battery powered LED alarm with test switch
- Single or two-point alarm for 55, 30 and 20 gallon drums
- Rugged 316 stainless steel float, stem and mounting plug
- NEMA 4 enclosure available in compact and remote types
Technical Specifications
| Orientation: |
Vertical |
| Alarm: |
LED alarm standard |
| Supply voltage: |
9 volt battery |
| LED indication: |
High / low alarm |
| Process temp.: |
F: -40° to 302°
C: -40° to 150° |
| Pressure: |
250 psi (17.23 bar) |
| Float material: |
316 Stainless steel |
| Stem/fitting mat: |
316 Stainless steel |
| Grip rings: |
P-15-7 Mo SS |
| Float SG: |
0.73 (+/- 0.02) |
| Contact rating: |
30 watts SPST
240 VAC (0.14A resistive)
120 VAC (0.28A resistive)
120 VDC (0.07A resistive)
24 VDC (0.28A resistive) |
| Wire type: |
2 or 4 conductor, #22 AWG
(-S401, -S501, -S601 only) |
| Wire length: |
6' (1.82m) (-S401, -S501,
-S601 only) |
| Wire jacket mat: |
Halar jacketed (-S401,
-S501, -S601 only) |
| Process mount: |
3/4" NPT |
| Enclosure rating: |
NEMA 4 |
| Enclosure mat.: |
Polycarbonate |
| Classification: |
General purpose |
| Compliance: |
CE, RoHS |
| Approvals: |
UL |
|
