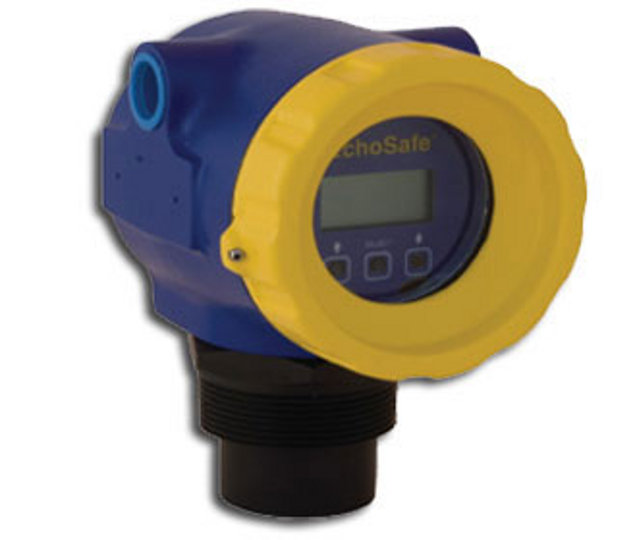

Flowline EchoSafe XP88/XP89 Explosion Proof Two-Wire Ultrasonic Level Transmitter
Our Price: Starting at $1,295.00
Manufacturer: Flowline
Part Number: XP8
Product Options
| XP8 Sensor Range: |
|
* Whole number only
|
|
Flowline EchoSafe XP88/XP89 Explosion Proof Two-Wire Ultrasonic Level Transmitter
Application
FM approved for hazardous environments, the explosion proof ultrasonic level transmitter provides continuous level measurement up to 32.8' (10m) with a 4-20 mA signal output, and is configured via the integral push button display module. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is widely selected for bulk storage, day tank, lift station and process tank level applications located in a classified area.
Features
- Explosion proof level transmitter for use in hazardous areas
- Offered in 2 measurement ranges from 26.2' (8m) to 32.8? (10m)
- Configuration is simple via integral push button display module
- Type 4 aluminum XP windowed enclosure with dual conduit ports
- LCD display indicates level in inches, centimeters or percent of span
- Narrow 3" beam width for applications with limited measurement space
- Rugged PVDF transducer and process mounting plug for corrosive liquids
- Automatic temperature compensation for accurate measurement
Technical Specifications
| Range: |
XP88: 8" to 26.2' (20cm to 8m)
XP89: 8" to 32.8' (20cm to 10m) |
| Accuracy: |
± 0.2% of range |
| Resolution: |
0.079" (2mm) |
| Dead band: |
8" (20cm) |
| Beam width: |
3" (7.6cm) |
| Configuration: |
Push button |
| Memory: |
Non-volatile |
| Display type: |
LCD, 6-digit |
| Display units: |
Inch, cm, percent, feet or meter |
| Supply voltage: |
18-28 VDC (loop) |
| Loop resist.: |
250 Ohms max @ 24 VDC |
| Signal output: |
4-20 mA, two-wire |
| Signal invert: |
4-20 mA or 20-4 mA |
| Signal fail-safe: |
4 mA, 20mA, 21 mA, 22 mA
or hold last |
| Process temp.: |
F: -4° to 140°
C: -20° to 60° |
| Temp. comp.: |
Automatic |
| Ambient temp.: |
F: -4° to 140°
C: -20° to 60° |
| Pressure: |
MWP = 30 psi (2 bar) |
| Enclosure rating: |
Type 4 |
| Encl. material: |
Aluminum |
| Window material: |
Glass |
| Conduit entrance: |
Dual, 1/2" NPT |
| Trans. material: |
PVDF |
| Process mount: |
2" NPT |
| Mount gasket: |
Viton® |
| Classification: |
Explosion proof |
| Compliance: |
CE, RoHS |
| Approvals: |
FM: Class I, Div I
Groups A, B, C, D
Class II/III, Div I,
Groups E, F, G |
|
Our Price: Starting at $35.00
The Flowline LM50 is a quick and easy solution for mounting any level detector or sensor with a 2” NPT or metric fitting.
LM50-1001-1: 1" NPT Bracket, PP
LM50-1001: 2" NPT Bracket, PP
LM50-1061: 2" G Bracket, PP
| |
