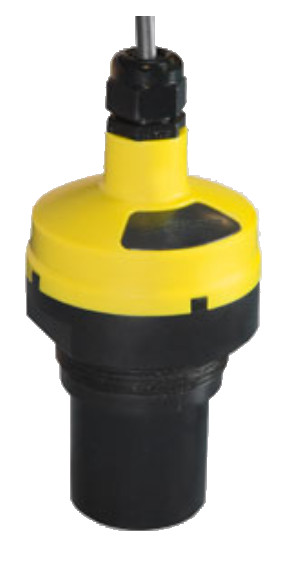

Flowline EchoPod DL34 5.5m Multi-Function Ultrasonic Level Transmitter, Switch & Controller
Application
The general purpose ultrasonic level transmitter provides continuous level measurement up to 18.0' (5.5m) with a 4-20 mA signal output, and is configured via our free Webcal software. The level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for day tank, skid, IBC, sump and process tank level applications.
Features
- Level detection, switch and control functions up to 18.0' (5.5m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 3" beam width and short 8" dead band optimized for small tanks
- Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
• 1 pump or valve with 3 alarms
• 2 pumps (lead-lag) with 2 alarms
• 2 pumps (duplexing) with 2 alarms
• 4 independent switch point alarms
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement

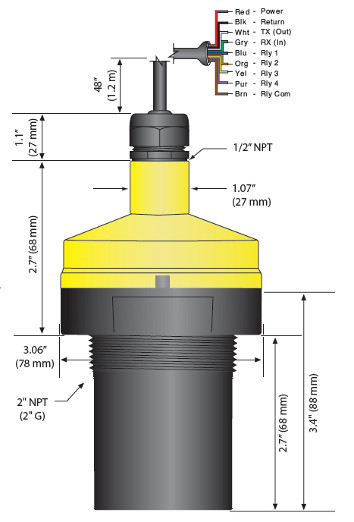

Dimensions
Technical Specifications
| Range: |
18.0' (5.5m) |
| Accuracy: |
± 0.2% of range |
| Resolution: |
0.079" (2mm) |
| Dead band: |
8" (20cm) |
| Beam width: |
3" (7.62cm) |
| Configuration: |
WebCal® PC
Windows® USB 2.0 |
| Memory: |
Non-volatile |
| Supply voltage: |
24 VDC (loop) |
| Consumption: |
0.5W |
| Loop resist.: |
400Ω max |
| Signal output: |
4-20 mA, two-wire |
| Signal invert: |
4-20 mA or 20-4 mA |
| Signal fail-safe: |
4 mA, 20 mA, 21 mA,
22 mA or hold last |
| Contact type: |
(4) SPST relays |
| Contact rating: |
60 VA, 1A maximum |
| Contact fail-safe: |
Power loss: Hold last
Echo loss: Open, close
or hold last |
| Hysteresis: |
Selectable |
| Process temp.: |
F: 20° to 140°
C: -7° to 60° |
| Temp. comp.: |
Automatic |
| Ambient temp.: |
F: -31° to 140°
C: -35° to 60° |
| Pressure: |
MWP = 30 PSI (2 bar) |
| Enclosure rating: |
Type 6P, encapsulated,
corrosion resistant &
submersible |
| Encl. material: |
Polycarbonate |
| Trans. material: |
PVDF |
| Cable jacket mat: |
Polyurethane |
| Cable type: |
9-conductor, shielded |
| Cable length: |
48" (1.2m) |
| Process mount: |
2" NPT (2" G) |
| Mount gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE, RoHS |
| Approvals: |
cFMus |
|
