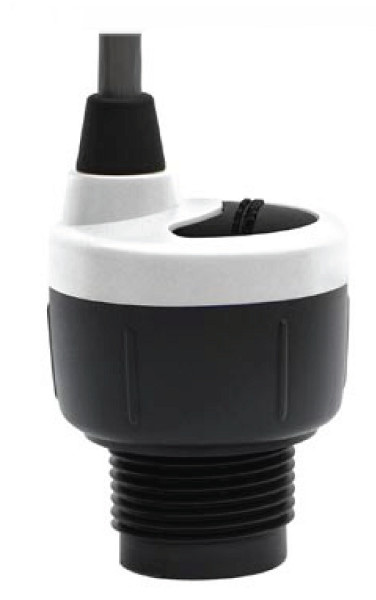

Flowline EchoPod DL10 Ultrasonic Level Transmitter
|
Item Number: DL10
Manufacturer: Flowline
Part Number: DL10
Product Options
* denotes required field
Flowline EchoPod DL10 Process Mount Selection*
You must select an option for ' Flowline EchoPod DL10 Process Mount Selection'.
Flowline EchoPod DL10 Fob USB Adapter Selection*
You must select an option for 'Flowline EchoPod DL10 Fob USB Adapter Selection'.
* Whole number only
|
|
Flowline EchoPod DL10 Ultrasonic Level Transmitter
Application
The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2" (1.25m) with a 4-20 mA signal output, and is configured via our free WebCal software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for small day tank, skid, IBC, sump and process tank level applications.
Features
- Continuous non-contact level measurement up to 49.2" (1.25m)
- 4-20 mA output for longer signal distances up to 1000' (300m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 2" beam width and short 2" dead band optimized for small tanks
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement

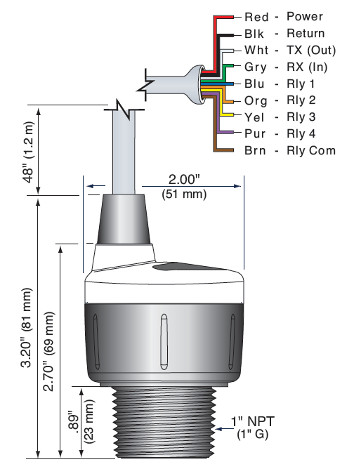

Dimensions
Technical Specifications
| Range: |
49.2" (1.25m) |
| Accuracy: |
0.125" (3mm) |
| Resolution: |
0.019" (0.5mm) |
| Dead band: |
2" (5cm) |
| Beam width: |
2" (5cm) |
| Configuration: |
WebCal® PC Windows® USB 2.0 USB 2.0 |
| Memory: |
Non-volatile |
| Supply voltage: |
24 VDC (loop) |
| Consumption: |
0.5W |
| Loop resist.: |
400Ω max |
| Signal output: |
4-20 mA, two-wire |
| Signal invert: |
4-20 mA or 20-4 mA |
| Signal fail-safe: |
4 mA, 20 mA, 21 mA,
22 mA or hold last |
| Process temp.: |
F: 20° to 140°
C: -7° to 60° |
| Temp. comp.: |
Automatic |
| Ambient temp.: |
F: -31° to 140°
C: -35° to 60° |
| Pressure: |
MWP = 30 PSI (2 bar) |
| Enclosure rating: |
Type 6P, encapsulated,
corrosion resistant & submersible |
| Encl. material: |
Polycarbonate |
| Strain relief mat.: |
Santoprene |
| Trans. material: |
PVDF |
| Cable jacket mat.: |
Polyurethane |
| Cable type: |
4-conductor, shielded |
| Cable length: |
48" (1.2m) |
| Process mount: |
1" NPT (1" G) |
| Mount gasket: |
Viton® |
| Classification: |
General purpose |
| Compliance: |
CE, RoHS |
| Approvals: |
cFMus |
|
