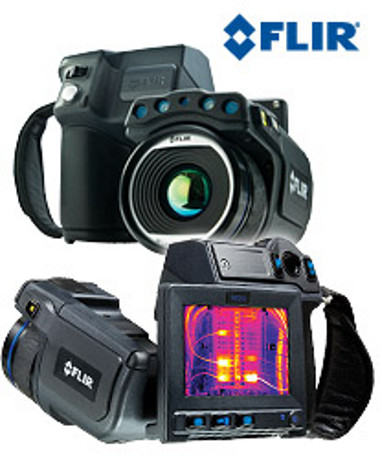

FLIR T620 High-Resolution Infrared Thermal Imaging Camera
|
Item Number: T620
Manufacturer: FLIR
Part Number: T620
* Whole number only
|
|
FLIR T620 High-Resolution Infrared Thermal Imaging Camera
**Domestic Sales Only
FLIR T620 Features:
- High Thermal Sensitivity (N.E.T.D) - 0.05°C @ 30°C
- Wide temperature range: -4°F to 1202°F (-20°C to 650°C) with ±2% or 2°C accuracy
- Focal Plane Array detector with 640 x 480 pixels infrared resolution (307,200 pixels)
- Interchangeable lens with 4X continuous zoom
- Manual/Automatic focus camera with laser pointer, 4.3" multifunction Touch Screen LCD display and 120° swivel lens
- Built-in 5 Megapixel visible light digital camera with video lamp
- Scalable Thermal Fusion and Picture-In-Picture (PIP), Delta T (Differential Temperature), Voice/Text/Sketch Annotation, IR Windows Correction, Instant
Report, Programmable button
- Digital Video recording and MPEG-4 video streaming over Wi-Fi
- METERLiNK™ Wireless communication
- SD card slot for image storage (more than 1,000 Radiometric JPEG images)
- Complete with SD memory card, 2 rechargeable batteries, 2-bay battery charger, power supply, Bluetooth headset, USB and video cables, tripod adapter,
lens cap, and hard carrying case
- Includes FLIR Tools software for analysis of radiometric images
|
|
|
Built-in 5MP Digital Camera, LED Lamps, Laser Pointer, Diopter,
Image Capture Button and Auto/Manual focus capability. 120° Rotating Lens, & Digital Zoom
|
Thermal Fusion is an IR image shown above, below or within temperature interval
blended onto a digital image
|
FLIR T620 Applications:
|
|
|
Utility Market -- Use infrared cameras to locate problems, detect hot spots and other problems before
they turn into costly failures & production downtime or electrical fires.
|
|
|
|
Electrical Inspections -- With FLIR thermal imaging cameras electrical contractors can scan electrical
cabinets/panels and components for a non-contact view of conditions.
|
FLIR T620 Specifications:
| Temperature Range
|
-40°F to 1202°F (-40°C to 650°C)
|
| Thermal Sensitivity (N.E.T.D)
|
<0.04°C at 30°C
|
| Zoom
|
4X Continuous
|
| Focus
|
Manual or Automatic (one shot)
|
| Frame Rate
|
30Hz
|
| Field of view/Minimum focus distance/FOV Match
|
25°C x 19° / 0.82ft (0.25m) / Field of View Match where Digital Image FOV adapts to the IR lens
|
| Detector Type
|
640 x 480 pixels
|
| Spectral Range
|
7.5 to 14μm
|
| Lens
|
25° or 45° models (optional 7°, 15°, 25°, 45°, 80°, Close up 100, 50μm lenses available)
|
| Display
|
Built-in touch-screen 4.3" color LCD (800 x 400 pixels)
|
| Image Modes
|
Thermal/Visual/Fusion/P-IP (Re-sizable and Movable) and Thumbnail gallery
|
| Automatic Image Adjustment
|
Continuous/manual; linear or histogram based; possible to lock max, min, or span temperature
|
| Manual Image Adjustment
|
Level/span/max/min
|
| Image Storage
|
1000 radiometric JPEG images (SD card memory)
|
| Image Annotation
|
Voice (60 sec); text comments, sketch
|
| Periodic Image Storage
|
7 seconds to 24 hours (IR) and 14 seconds to 24 hours (IR and visual)
|
| Video Lamp
|
Bright LED lamp
|
| Laser Classification/Type
|
Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red)
|
| Set-up Controls
|
Mode selector, color palettes, configure info to be shown in image, local adaptation of units, language, date and time formats, and image gallery
|
| Measurement Modes
|
10 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T
|
| Measurement Correction
|
Reflected ambient temperature & emissivity correction
|
| GPS
|
Location data automatically added to every image from built-in GPS
|
| Video Recording in Camera and Video Streaming
|
Non-radiometric IR-video recording (MPEG-4 to memory card), Visual and Radiometric IR-video streaming (Full dynamic to PC using USB or Wi-Fi), and Non-Radiometric IR-video streaming (MPEG-4 using Wi-Fi and uncompressed colorized video using USB)
|
| Battery Type/Operating Time
|
Li-Ion/2.5 hours, Display shows battery status
|
| Charging System
|
In camera AC adapter/2 bay charging system
|
| Shock/Vibration/Encapsulation; Safety
|
25G, IEC 60068-2-29 / 2G, IEC 60068-2-6 / IP54; EN/UL/CSA/PSE 60950-1
|
| Dimensions/Weight
|
5.6 x 7.7 x 3.7" (143x196x94mm)/ 2.87 lbs (1.3kg), including battery
|
| Accessories Included
|
SD Memory Card, 100-26OV AC adapter/charger, two Li-Ion rechargeable batteries, 2-bay battery charger, power supply (with multi-plugs), FLIR Tools™ software, USB cable, video cable, Bluetooth® Headset, lens cap, neckstrap, and hard case
|
|
