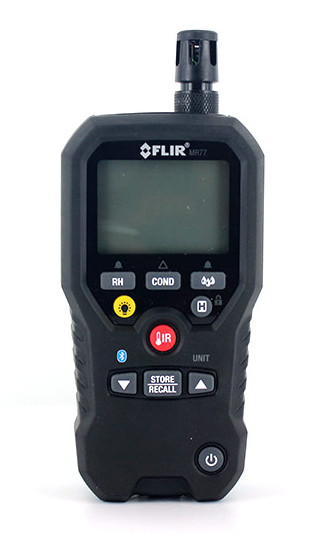

FLIR MR77 Pinless Moisture Meter
|
Item Number: MR77
Manufacturer: FLIR
Part Number: MR77
* Whole number only
|
|
FLIR MR77 Pinless Moisture Meter
The new FLIR MR77 is a rugged, feature-packed moisture meter incorporating a pinless sensor and a wired pin probe to capture moisture readings up to 0.75” below the surface of various wood types and building materials. The unit also incorporates a laser-spot IR thermometer, a field-replaceable temperature/humidity sensor, and High/Low moisture and humidity alarms.
Features
Capture accurate, non-destructive moisture readings up to 0.75" below material surfaces using the integrated pinless sensor.
Monitor moisture levels in hard-to-reach areas using the FLIR MR77’s external pin probe on 30" wire.
Quickly capture spot temperatures using the non-contact, IR thermometer with laser spot.
Large, clear LCD screen simultaneously displays moisture, relative humidity, and air temperatures.
Upload data to FLIR Tools Mobile software so you can easily turn moisture/environmental trending graphs into professional reports.

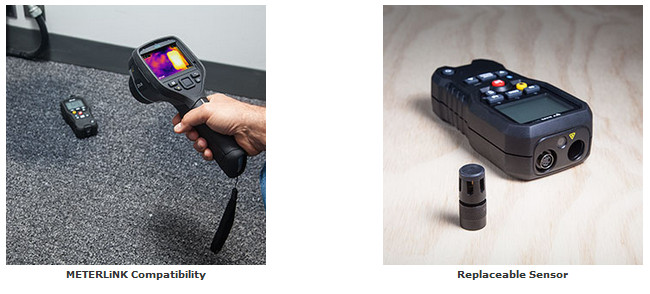

Embed moisture readings into thermal images from METERLiNK-enabled FLIR IR cameras for enhanced documentation/reporting.
Double-molded, rubberized case is shock-resistant from drops from as high as two meters to bolster reliability and durability.
Designed to resist contamination, the temperature/humidity sensor is field replaceable to keep the unit in action on the job site.
Technical Specifications
|
|
| |
Range |
Basic Accuracy |
| Pinless Moisture |
0 to 99.9 |
Relative |
| Pinless Moisture Depth Max |
0.75 inches (19mm) |
|
| Pin Moisture |
0 to 99% WME |
+/- 5% |
| Relative Humidity |
0 to 99% RH |
+/- 2.5% RH |
| Sensor Temperature |
-18 to 170°F, -28 to 77°C |
+/- 3.6°F, 2°C |
| IR Temperature |
-4 to 392°F, -20 to 200°C |
+/- 3.5% |
| IR Distance to Spot Ratio |
8 : 1 in |
|
| IR Emissivity |
0.95 (fixed) |
|
| Vapor Pressure |
0 to 20.0kPA |
+/- 2% |
|
|
| Bluetooth Range Max |
32 ft (10 m) |
| Drop Test |
6.5 ft (2 m) |
| Warranty |
Limited Lifetime |
| Certifications |
CE, FCC |
Includes:
9V Battery, User Manual/CD, Temperature/RH Sensor, Wired Pin Probe and Limited Lifetime Warranty
|
